Teardrop Style Pallet Racking β Boltless & Interchangeable with Every Major North American Brand
The dominant pallet rack standard across North America β teardrop-perforated uprights with hook-and-pin beam connectors that snap-lock without bolts in under 60 seconds per beam. AME Rack manufactures teardrop-compatible pallet rack cross-interchangeable with Interlake / Mecalux / Steel King / Husky / Republic / Speedrack, RMI MH16.1 + ANSI MH16.1 + AS 4084 certified, exported to 65+ countries.
The Boltless North American Standard That Powered the DC Revolution
Teardrop style pallet racking (also called teardrop racking, teardrop pallet rack, boltless pallet rack, hook-in pallet rack, Interlake-compatible rack, RMI teardrop rack, pallet rack system teardrop, North American pallet rack or universal pallet rack) is the dominant pallet rack standard across North America β defined by the distinctive teardrop-shaped perforations on the upright column that accept hook-and-pin beam connectors which gravity-snap-lock without bolts.
The teardrop perforation was originally engineered by Interlake (now Mecalux) in the 1960s and rapidly became the de-facto industry standard because of three breakthroughs: (1) the angled keyhole shape guides the beam hook into final position by gravity alone; (2) the hook is locked by a positive locking pin that requires deliberate removal β no accidental beam dislodgement; (3) the 2-inch or 6-inch slot pitch lets warehouse operators reconfigure beam heights without tools as pallet dimensions change.
Today teardrop is the universal interchange standard across major North American manufacturers β Interlake / Mecalux, Steel King, Husky, Republic, Speedrack, Ridg-U-Rak, Hannibal and dozens of regional brands all share the same teardrop perforation pattern (within Β±0.5mm tolerance). This means AME Rack teardrop beams drop into any major brand upright, and vice versa β enabling free-trade in the secondary rack market, supplier independence, and the lowest spare-parts pricing in industrial storage.
AME Rack manufactures teardrop pallet racking compliant with RMI MH16.1 + ANSI MH16.1 (North America), EN 15512 (Europe), AS 4084 (Australia) and FEM 9.831 seismic guidance β with stamped engineering reports by chartered engineer, mill test certificates on every steel batch, and dimensional certification matching the major North American brand teardrop pattern.
Teardrop Perforation + Hook-In Beam Connector
Why Teardrop Pallet Racking Dominates North American Warehouses
Eight reasons teardrop has become the universal pallet rack standard across North American DCs β wherever boltless install, cross-brand interchange, fast reconfiguration and lowest spare-parts cost matter more than European-style proprietary systems.
Boltless 60-Second Install
Hook-in beam connector + gravity-drop + locking pin snap-locks in under 60 seconds per beam. No bolts, no special tools, no skilled labour. 4Γ faster than bolt-up rack systems.
Cross-Compatible with NA Brands
AME teardrop beams drop into Interlake, Mecalux, Steel King, Husky, Republic, Speedrack uprights β and vice versa. Universal North American interchange standard.
2-inch / 6-inch Adjustability
Beam levels reconfigurable on 2-inch (50mm) or 6-inch (150mm) pitch β change pallet height in 60 seconds. No welding, no concrete work, no operations interruption.
Positive-Lock Safety Pin
Spring-loaded locking pin prevents accidental beam dislodgement from forklift impact. RMI MH16.1 Annex B impact-test verified 400 J without disengagement.
Lowest Spare-Parts Pricing
Universal interchange standard means parts are commodity-priced. AME beams cost 40-55% of Mecalux/Interlake FOB β and fit those uprights perfectly.
RMI MH16.1 + ANSI Certified
FEA-verified to RMI MH16.1 + ANSI MH16.1 (the North American racking design standard) + EN 15512 (EU) + AS 4084 (Australia). Stamped engineering report included free.
Fast Reconfiguration
2-inch slot pitch enables warehouse re-layout in hours, not days. Adapt to seasonal SKU shifts, new product launches, e-commerce velocity changes without contractor delay.
Secondary Market Friendly
Teardrop dominates the North American used / refurbished rack market β installation crews already know the system, and AME parts work with existing stock.

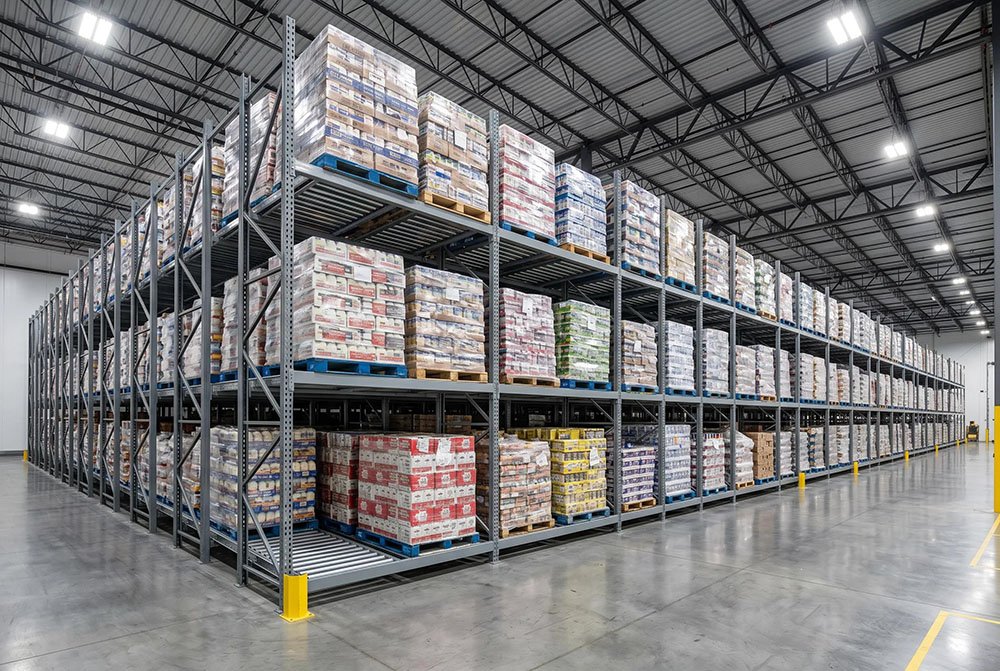

6 Configurations of Teardrop Pallet Rack
Teardrop pallet racking is one base architecture with six widely-deployed variants. Pick the configuration that matches your pallet weight, aisle width, temperature zone and seismic classification.

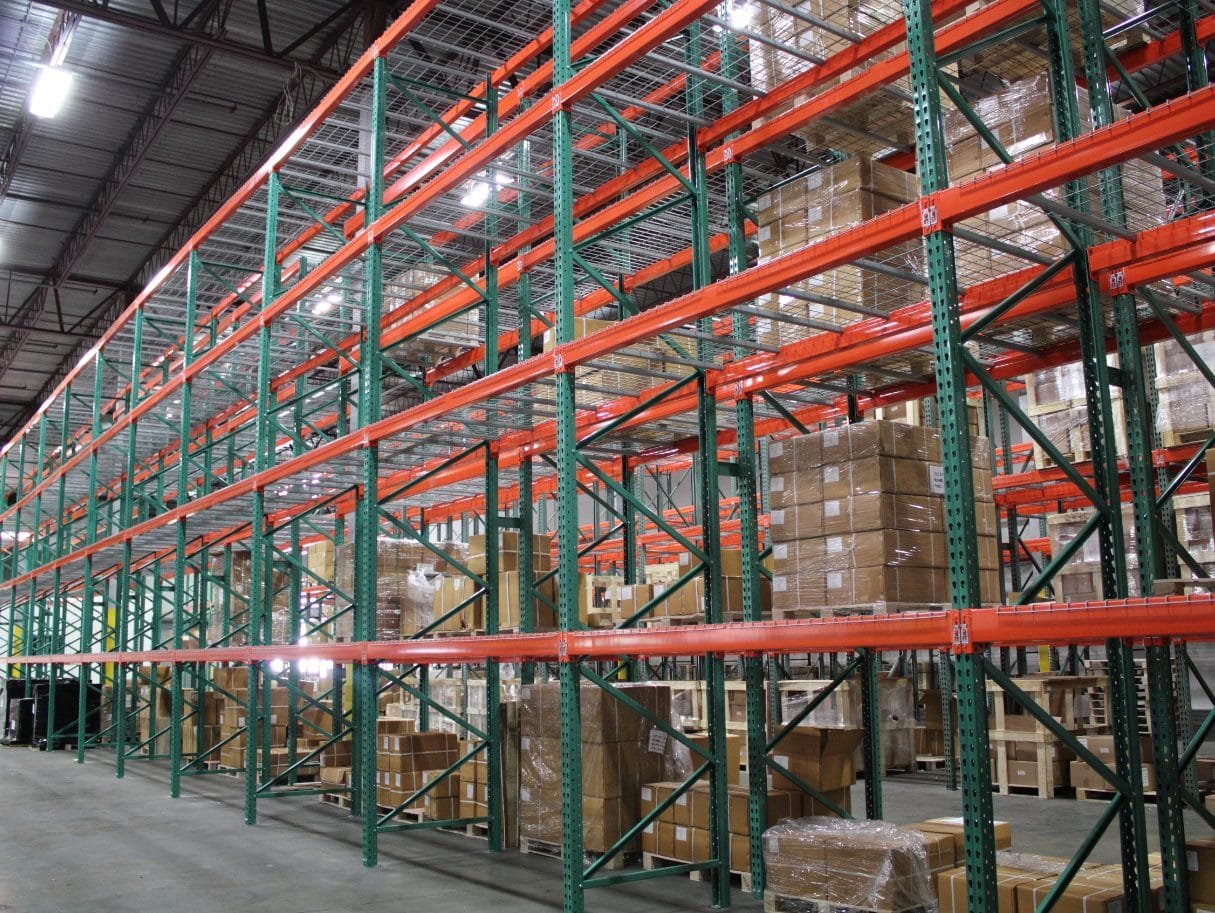

Standard Teardrop Selective Rack
42"D Γ 96"-144"H uprights + 96"-144" beams, 5,000 lb beam-pair, 2-inch teardrop pitch. The North American DC workhorse β fits 95% of standard 40"Γ48" GMA pallets.
Heavy-Duty Teardrop Rack
Reinforced 3,000-6,000 lb beam-pair (2.5-3.0mm wall uprights). For engine blocks, machined parts, drums, IBC totes, and 2,500+ lb pallet loads.

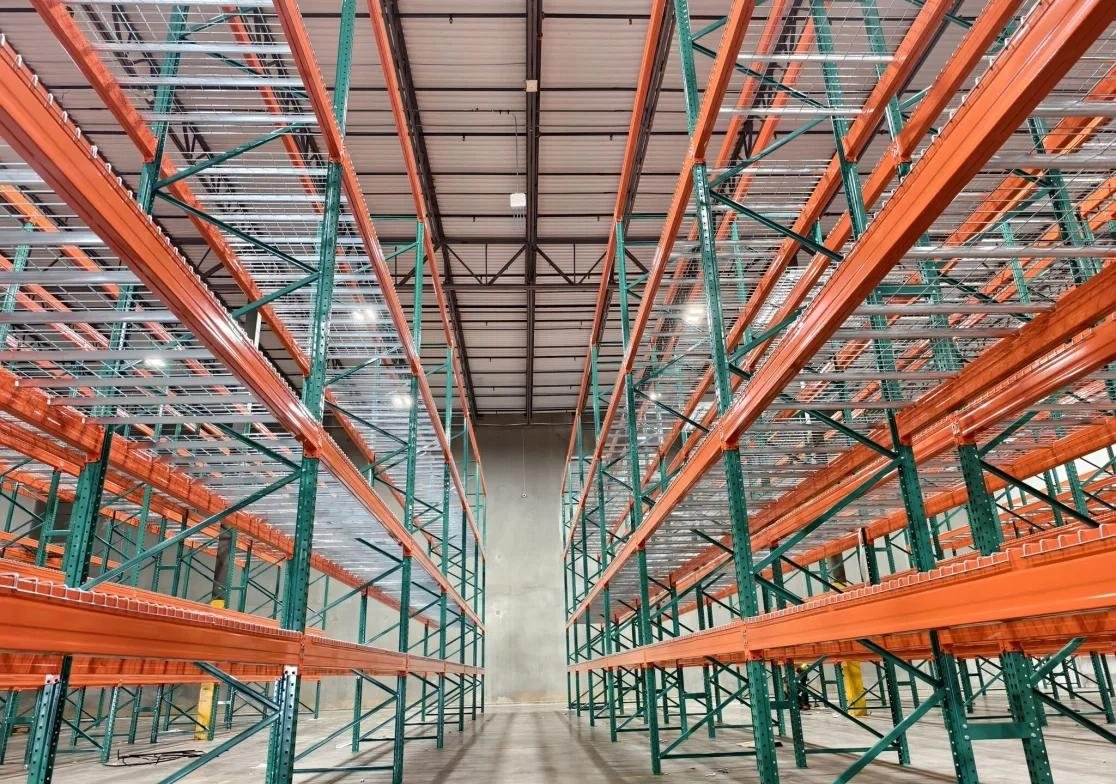

Narrow Teardrop Rack (Reach Truck)
Reduced 96"-102" aisle width with reach truck. Gains 25-30% storage density while preserving 100% direct pallet access. Ideal for high-bay urban DCs.

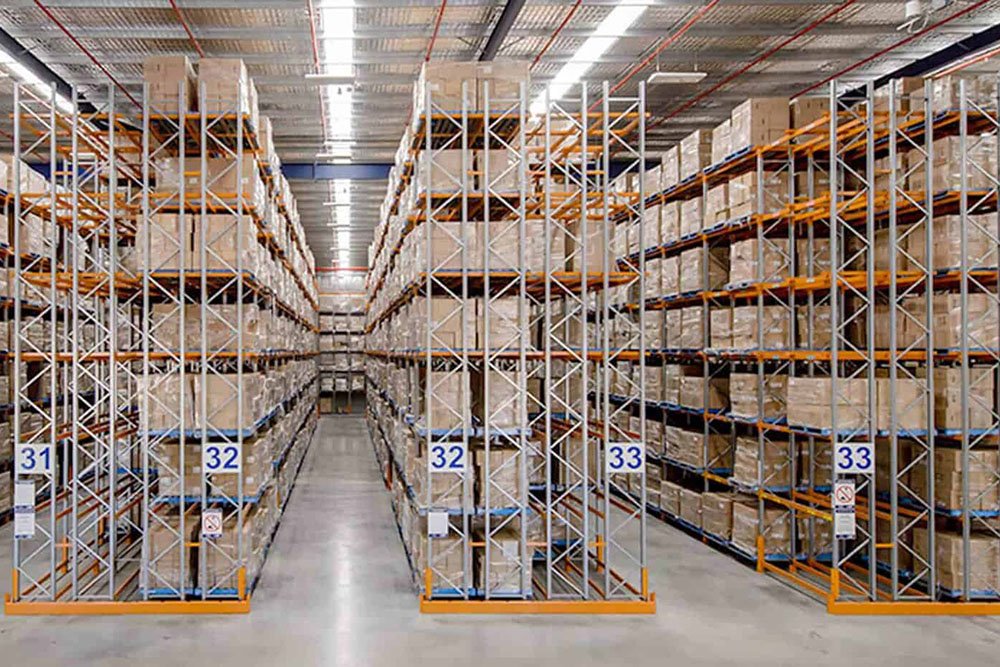

Double-Deep Teardrop Rack
Two pallets deep with double-deep reach truck β gains 35% density vs single-deep. Same teardrop perforation, same beam interchangeability. Maintains brand compatibility.
Cold-Storage Teardrop Rack (HDG)
Hot-dip galvanized 80-120 ΞΌm finish + Q345B low-temp impact steel + sealed perforations. Survives -25Β°C frozen DCs with 15-year corrosion warranty.
Seismic-Zone Teardrop Rack
Extra K-bracing + chemical anchor bolts + ductile design per ASCE 7 / IBC seismic categories D-F. For California, Pacific Northwest, Alaska and Mexico seismic-zone warehouses.
Full Teardrop Pallet Rack Specification Matrix
Five production-default configurations covering 95% of North American demand. All dimensions in imperial AND metric. All values verified by stamped FEA report (RMI MH16.1 + ANSI MH16.1) β request the full PDF datasheet with your quote.
| Specification | Standard Selective | Heavy-Duty | Narrow Reach-Truck | Cold-Storage HDG | Seismic Zone D-F |
|---|---|---|---|---|---|
| Beam pair capacity | 5,000 lb (2,270 kg) | 6,000 lb (2,720 kg) | 5,000 lb (2,270 kg) | 5,000 lb (2,270 kg) | 5,000 lb (2,270 kg) |
| Upright depth | 42" (1,067mm) | 48" (1,219mm) | 42" (1,067mm) | 42" (1,067mm) | 42" (1,067mm) |
| Upright height range | 96"β192" (2.4β4.9m) | 96"β240" (2.4β6.1m) | 120"β288" (3.0β7.3m) | 96"β192" (2.4β4.9m) | 96"β192" (2.4β4.9m) |
| Upright wall thickness | 0.075"β0.090" (1.9β2.3mm) | 0.100"β0.120" (2.5β3.0mm) | 0.090" (2.3mm) | 0.090" (2.3mm) | 0.100" (2.5mm) |
| Upright steel grade | Q235B / A36 | Q345B / A572 Gr 50 | Q345B / A572 Gr 50 | Q345B HDG (low-temp) | A572 Gr 50 (ductile) |
| Beam length range | 72"β144" (1.8β3.7m) | 72"β120" (1.8β3.0m) | 96"β120" (2.4β3.0m) | 96"β144" (2.4β3.7m) | 96"β120" (2.4β3.0m) |
| Beam profile | Box-section step beam | Box-section step beam | Box-section step beam | Box-section step beam | Box-section step beam |
| Teardrop slot pitch | 2" (50mm) | 2" (50mm) | 2" (50mm) | 2" (50mm) | 2" (50mm) |
| Cross-brand compatibility | Interlake / Mecalux / Steel King / Husky / Republic / Speedrack | Same | Same | Same | Same + ductile spec |
| Beam connector | 2-hook (5,000 lb) | 3-hook (6,000 lb) | 2-hook | 2-hook | 3-hook + locking pin |
| Operating temperature | +5 to +40Β°C | +5 to +40Β°C | +5 to +40Β°C | -25 to +25Β°C | -10 to +40Β°C |
| Surface finish | Powder coat 2 mil (50 ΞΌm) | Powder coat 3 mil (75 ΞΌm) | Powder coat 2 mil | HDG 3-5 mil (80-120 ΞΌm) | Powder coat 3 mil |
| Anchor bolt | 3/8" (M10) chemical | 1/2" (M12) chemical | 3/8" (M10) chemical | 3/8" (M10) chemical HDG | 5/8" (M16) chemical + epoxy grout |
| Standard compliance | RMI MH16.1 Β· ANSI | RMI MH16.1 Β· ANSI | RMI MH16.1 Β· ANSI | RMI MH16.1 Β· ISO 1461 | RMI MH16.1 Β· ASCE 7 Β· IBC |
10 Engineered Parts of a Teardrop Pallet Rack
Every teardrop rack we ship is built from the same 10-part architecture β boltless engineered for fast install, cross-brand interchange and 20+ year service life across North American DCs.

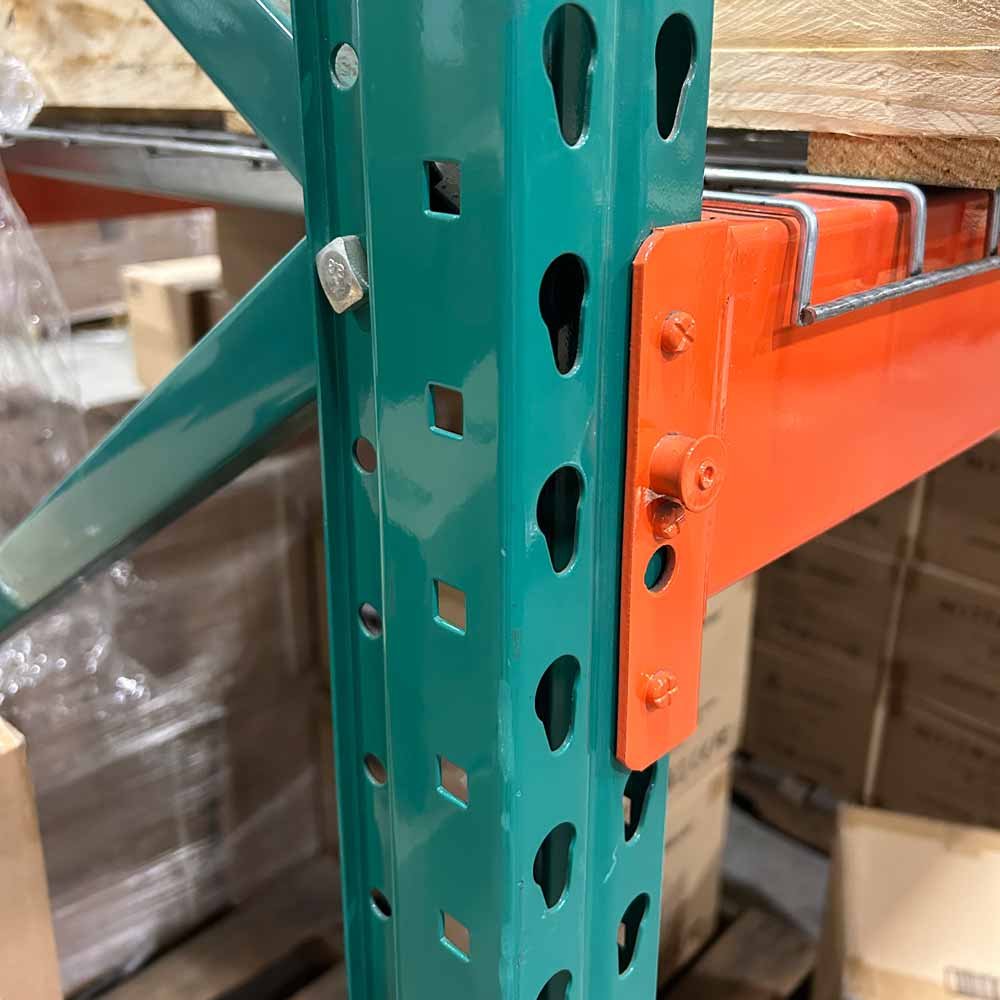

Teardrop-Perforated Upright
Cold-rolled C-section upright with patented teardrop-shaped slot pattern (2-inch pitch). Cross-compatible with Interlake, Mecalux, Steel King, Husky, Republic, Speedrack.
Step Box-Section Beam
Roll-formed step box beam with welded end-bracket carrying 2-3 teardrop hooks. Beam length 72"-144" standard. 5,000-6,000 lb pair-capacity ratings.
Hook-In Beam Connector (2-3 Hook)
Welded steel hook bracket with 2 or 3 teardrop-shaped hooks per side. Gravity-snap-locks into upright slot β 60-second install per beam, no tools required.
Spring-Loaded Locking Pin
Positive-lock spring pin prevents accidental beam dislodgement from forklift impact. RMI MH16.1 Annex B 400 J impact-test verified. Removable for re-configuration.
Anchored Base Plate
8-10mm steel base plate welded to upright bottom + 3/8"-1/2" chemical anchor bolts per RMI MH16.1. Levelling shims accommodate floor flatness FF35 tolerance.
Column Protectors
12"-48" (300-1,200mm) yellow HDG column guards on every aisle-face upright. Standard 18" / 36" / 48" sizes. Bolt-on replaceable design swaps in 10 minutes.
K-Bracing (Diagonal & Horizontal)
Cross-bracing welded to uprights creates frame stability. K-pattern bracing for general use; ductile X-bracing for seismic zones D-F.

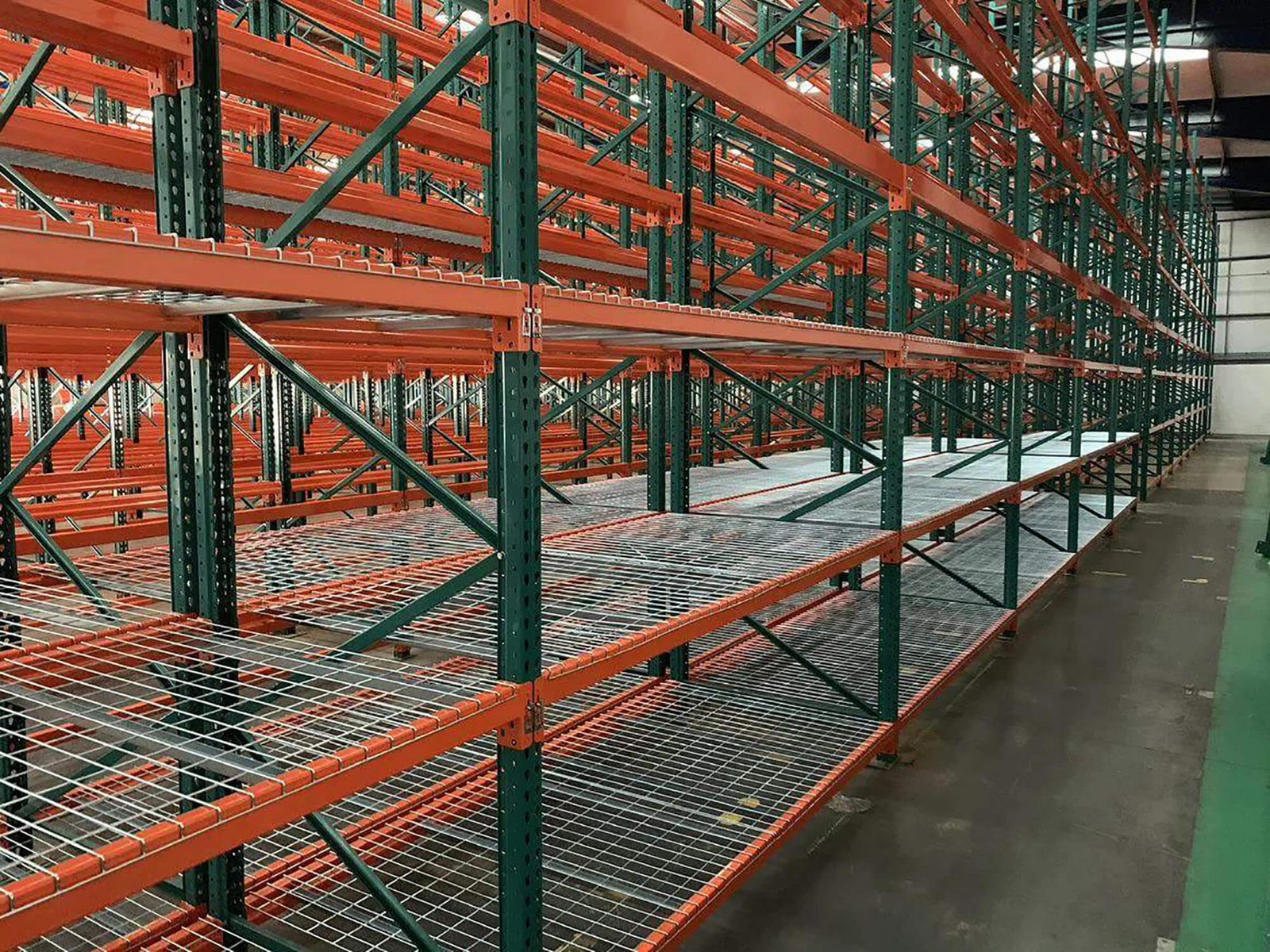

Wire Mesh Decking
Optional wire mesh decking (waterfall front edge, sprinkler-friendly). 2,500-3,000 lb capacity per 42"Γ48" deck panel. Drops in without bolts.
Pallet Support Bars
Cross-bars between beams support weak plastic / slip-sheet / damaged-stringer pallets. Critical for any operation handling non-GMA pallets.
RMI Load Notice Plate
Per-rack-run mandatory load capacity sign (RMI MH16.1 / ANSI MH16.1 + OSHA 29 CFR 1910 compliance). Pre-printed in English / French / Spanish.
8 Industries Running on Teardrop Pallet Racking
Eight industries where teardrop pallet racking is the right spec β wherever North American DC standards, cross-brand interchange, fast install and 2-inch reconfigurability matter more than European proprietary systems.
North American DCs (3PL / FMCG)
The universal pallet rack for Walmart / Costco / Target / Amazon supplier DCs. RMI MH16.1 compliance + cross-brand interchange = supplier-neutral procurement.
Cold-Storage Warehouses
HDG variant with low-temp Q345B steel β frozen meat, ice cream, frozen seafood DCs across USA / Canada. -25Β°C continuous operation tested.
Manufacturing & WIP Buffer
Heavy-duty 6,000 lb beam-pair variant for engine castings, machined parts, IBC totes, drum storage. IATF 16949 audit-compliant for automotive suppliers.
E-Commerce Fulfillment Centres
Amazon / Walmart.com / Target.com fulfillment standard. Fast 2-inch beam adjustability accommodates seasonal SKU velocity changes without contractor delay.
Retail Backroom + Regional DC
Walmart / Target / Costco / Home Depot regional DC standard. Cross-compatible with existing teardrop fleets β phased upgrade without forklift refresh.
Food & Beverage Distribution
Beer, soft drink, packaged food DCs across USA / Canada / Mexico. HDG variant for refrigerated zones; standard powder coat for ambient.
Seismic-Zone Warehouses
California, Pacific Northwest, Alaska, Mexico City β IBC seismic zones D-F. Ductile A572 Gr 50 + 5/8" anchors + epoxy grout per ASCE 7.
Used Rack & Refurbishment Market
AME beams + uprights drop into existing used-rack fleets sourced from auctions or refurbishment dealers β universal teardrop compatibility means zero conversion needed.
How to Spec a Teardrop Pallet Rack in 3 Decisions
Three decisions narrow your teardrop spec from a 5,000 lb standard to a 6,000 lb heavy-duty or seismic-rated ductile system. Get them right before requesting your quote β and confirm cross-brand compatibility with existing fleet.
Pallet Load: What Is Your Heaviest Pallet?
Beam pair capacity must > 2Γ heaviest pallet weight. Spec to worst case, not average.
- 1,500-2,000 lb pallets β Standard 5,000 lb beam pair β
- 2,000-3,000 lb pallets β Heavy-duty 6,000 lb beam pair β
- 3,000+ lb pallets β Custom 8,000-10,000 lb beam pair (engineered)
- Mixed pallets β Always use the heaviest, never average
Cross-Brand Compatibility: Existing Fleet?
If you have existing teardrop racks from any major NA brand, confirm AME compatibility before ordering.
- Existing Interlake / Mecalux fleet β confirm 2"-pitch teardrop β
- Existing Steel King / Husky fleet β confirm teardrop pattern β
- Existing Republic / Speedrack β confirm teardrop + beam profile β
- Existing proprietary (non-teardrop) β cannot mix; budget full replacement
Seismic Zone: Where Is Your Warehouse?
USA / Mexico / Canada seismic categories drive design. IBC categories D-F require ductile rack design.
- IBC A-C (most of Central / Eastern USA) β Standard K-bracing β
- IBC D (Pacific Northwest, parts of California) β Enhanced bracing β
- IBC E-F (California coast, Alaska, Mexico City) β Ductile design + 5/8" anchors + epoxy grout β
- Permit jurisdictions β Stamped seismic calc by local PE engineer
| If your operation needs... | Pick this configuration | Anchor / bracing | Avoid |
|---|---|---|---|
| Standard FMCG DC, 1,500 lb GMA pallets | Standard 5,000 lb Selective | 3/8" chem anchor + K-brace | 6,000 lb (over-spec) |
| Manufacturing 2,500-3,000 lb pallets | Heavy-Duty 6,000 lb | 1/2" chem anchor + K-brace | Standard 5,000 (under-spec) |
| High-bay urban DC, reach truck | Narrow Reach-Truck 5,000 lb | 3/8" chem anchor + K-brace | VNA (over-spec) |
| Frozen DC at -25Β°C | Cold-Storage HDG 5,000 lb | 3/8" chem anchor HDG | Standard powder coat (corrodes) |
| California / Pacific Northwest seismic | Seismic Zone D-F (Ductile A572) | 5/8" chem anchor + epoxy grout | Standard bracing (code violation) |
| Replace failed bays in existing Interlake fleet | AME Standard (drop-in compatible) | Match existing anchor spec | Proprietary brands (locked-in) |
| Walmart / Costco / Target supplier DC | RMI MH16.1 + 5,000 lb standard | Per retailer spec | Non-RMI brands (retailer reject) |
| Heavy automotive 2,500-3,000 lb engine pallets | Heavy-Duty 6,000 lb + impact protectors | 1/2" + 48" column guards | Standard 5,000 (under-spec) |
Teardrop vs. Slotted-Hole Β· Keystone Β· Bolt-Up Β· European Z-Profile
Where teardrop wins, where alternatives win. Use this matrix to defend your spec internally β every row reflects what a real North American DC procurement manager evaluates when standardising a rack fleet.
| Criteria | Teardrop (NA Standard) | Slotted-Hole (Generic) | Keystone (Republic Legacy) | Bolt-Up (Industrial Heavy) | European Z-Profile |
|---|---|---|---|---|---|
| Install time per beam | ~60 seconds (boltless) | ~75 seconds | ~90 seconds (legacy) | 3-5 minutes (4 bolts) | ~60 seconds (boltless) |
| North American DC dominance | β β β β β (industry default) | β β β β β | β β β β β (declining) | β β β β β (heavy industrial) | β β β β β (rare in NA) |
| Cross-brand interchange | β β β β β (universal) | β β β β β | β β β β β (proprietary) | β β β β β | β β β β β (EU only) |
| Secondary / used market | β β β β β | β β β β β | β β β β β | β β β β β | β β β β β |
| Beam pair capacity (lb) | 2,000-6,000+ | 2,000-5,000 | 2,500-5,000 | 3,000-8,000+ | 2,500-6,000 |
| Beam adjustability pitch | 2" (50mm) | 2" (50mm) | 3" (75mm) | 2" (50mm) | 2" (50mm) or 3" |
| Safety pin locking | β β β β β | β β β β β | β β β β β | β β β β β (bolt) | β β β β β |
| Standard compliance | RMI MH16.1 + ANSI MH16.1 | RMI MH16.1 (generic) | RMI MH16.1 (legacy) | RMI MH16.1 + AISC | EN 15512 (EU) |
| Spare-parts cost (per beam) | $ Lowest | $$ Mid | $$$ Higher (legacy) | $$ Mid | $$$$ Highest (imported) |
| Walmart/Costco/Target accepted | β Standard spec | β Generic OK | β οΈ Legacy only | β Heavy applications | β οΈ Case-by-case |
| Best for | North American DCs (universal) | Budget DCs, single-source OK | Existing Republic legacy fleets | Heavy industrial / mill | European-spec imports |
β AME Rack's North American Standard Verdict
Pick teardrop racking when you operate any DC in USA / Canada / Mexico β it is the universal industry standard, accepted by every major retailer (Walmart / Costco / Target / Home Depot / Amazon), interchangeable with every major manufacturer (Interlake / Mecalux / Steel King / Husky / Republic / Speedrack), and the cheapest in spare parts because every distributor stocks it. Slotted-hole generic beats teardrop only if you have an existing single-source fleet you're extending and don't need cross-brand interchange β but the small savings rarely outweigh future flexibility loss. Keystone (Republic legacy) beats teardrop only when you're extending an existing Republic legacy fleet β but Republic has now switched to teardrop, so this is a fading scenario. Bolt-up beats teardrop on heavy industrial / mill applications above 8,000 lb where the bolt connection adds safety margin. European Z-profile beats teardrop only in Europe β in North America it creates supplier lock-in and 2-3Γ higher spare parts cost.
3 North American Teardrop Pallet Rack Projects by AME Rack
Real customers, real cross-compatibility validation. From Texas Fortune 500 retailer to Mexican IATF auto plant to Toronto frozen 3PL β teardrop pallet racking delivers RMI MH16.1 compliance, brand interchangeability and 35-45% cost savings vs European brand alternatives.
Existing 22-year-old Interlake teardrop fleet needed 18,000-position expansion. Direct sourcing from Mecalux/Interlake quoted USD 4.2M FOB Chicago, 14-week lead time. Procurement targeted 35% cost reduction without sacrificing teardrop compatibility, RMI certification or Walmart-grade spec.
18,200 pallet positions of AME Rack Standard Teardrop Selective (5,000 lb beam pair Γ 42" deep Γ 144" high). Cross-compatibility verified by 3-bay sample test against existing Interlake fleet (beams interchange Β±0.3mm tolerance). RMI MH16.1 + ANSI + stamped Texas PE engineering. 20-day production + 35-day shipping.
Total cost USD 2.65M FOB Houston (-37% vs Mecalux quote). Cross-compatibility verified on-site β AME beams installed alongside 22-year-old Interlake uprights, zero issues. Project completed in 16 weeks total. Retailer extended a 3-year supplier framework agreement with AME for ongoing fleet expansion.
Plant needed 4,800 pallet positions for engine block storage (2,800 lb pallets, 24/7 production cycling). Local Mexican suppliers offered generic slotted-hole racks at low price but did not meet IATF audit-compliant Mexico City seismic Zone D requirements. Mecalux quoted teardrop at USD 950K FOB Veracruz with 16-week lead time.
4,800 positions of AME Rack Heavy-Duty Teardrop + Seismic Zone D (6,000 lb beam pair + ductile A572 Gr 50 uprights + 5/8" chemical anchors with epoxy grout + 48" column protectors). Stamped seismic calculation by Mexican RPI engineer per IBC / NTC-DF Mexico City building code. IATF 16949 audit-compliant documentation pack.
Total cost USD 540K FOB Veracruz (-43% vs Mecalux). Mexico City seismic code compliance verified. IATF 16949 surveillance audit passed with zero rack findings. Project completed in 12 weeks total. After September 2023 M7.6 Acapulco earthquake (light shaking in Monterrey) β zero rack damage. Plant added 1,200 positions Year-2 expansion.
3PL operated 28,000 positions of mixed brands (50% Interlake teardrop, 30% Husky teardrop, 20% Steel King teardrop) inherited from 4 acquisitions. Frozen-zone expansion of 8,400 positions needed cold-storage HDG variant. Insurer required all new racks meet existing teardrop interchange standard for future flexibility.
8,400 positions of AME Rack Cold-Storage HDG Teardrop (5,000 lb beam pair + HDG 100 ΞΌm + Q345B low-temp impact steel + sealed teardrop perforations). Cross-compatibility verified against all 3 existing brands in factory sample test before bulk production. Stamped Ontario PE engineering. 25-day production.
Total cost CAD 1.18M FOB Toronto (-39% vs Mecalux cold-storage quote). On-site verification β AME teardrop beams installed in mixed runs alongside Interlake + Husky + Steel King uprights, zero compatibility issues. -22Β°C operation verified 28 months post-install with zero brittle failure. 3PL extended 5-year fleet refresh agreement.
7-Stage Cross-Compatibility-Verified Manufacturing
Every teardrop rack leaves our Dongguan factory through a 7-stage production line built around precision teardrop roll-forming, EN 1090 EXC2 robotic welding, and physical fit-test verification against Interlake, Mecalux, Steel King and Husky brand samples kept in our QC lab β the cross-compatibility audit that generic manufacturers skip.
Mill-Certified Steel Inbound
Q235B / Q345B / A36 / A572 Gr 50 structural steel from Baosteel, Shagang & Ansteel. Mill test certificate (yield, elongation, chemistry) on every coil; AME QC re-tests random samples per ISO 6892 / ASTM A370.
Precision Teardrop Roll-Forming
Roll-forming line produces teardrop-perforated uprights to Β±0.3mm tolerance β tighter than industry standard Β±0.5mm. Cross-compatibility with Interlake / Mecalux / Steel King validated by die-set dimensional certification.
Beam Connector Welding
Robotic MIG welder attaches 2-hook or 3-hook beam connectors to step box-section beams. Full-penetration welds per EN 1090 EXC2. Hook profile press-formed from 3-4mm steel plate matching teardrop slot geometry.
Locking Pin Assembly
Spring-loaded locking pin pre-installed on every beam connector. Pin engagement force tested 50-150 N (heavy enough to prevent accidental release, light enough for one-hand removal). 100% inspection before paint.
Surface Treatment
7-stage pre-treatment (degrease β phosphate β passivate β dry). Standard: powder coat 2-3 mil (50-75 ΞΌm) Akzo Nobel + 200Β°C oven cure. Cold-storage: HDG 3-5 mil (80-120 ΞΌm) per ISO 1461. Yellow column protectors per OSHA safety code.
Cross-Brand Compatibility QC
Random samples from every production batch fit-tested against actual Interlake, Mecalux, Steel King and Husky upright samples kept in our QC lab. Beams MUST drop into all 4 brand uprights without binding or play before release.
Load Testing + Documentation
1.5Γ rated load held 24 h with deflection < L/180 per RMI MH16.1. Locking pin retention test under 400 J impact per Annex B. Stamped engineering report by chartered PE for US customers, P.Eng for Canadian, RPI for Mexican.
How to Buy Teardrop Pallet Racking β A 6-Point Checklist
Six things every warehouse manager, project owner and procurement lead should validate before placing a teardrop racking PO. These are the questions our top North American customers always ask β especially around brand cross-compatibility.
π 1. Specification Confirmation
- Upright depth (typically 42" / 48") and height (96"-240")
- Beam length (72"-144") and beam pair capacity (lb)
- Beam connector hook count (2 or 3 hooks per side)
- Upright steel grade (Q235B/A36 or Q345B/A572 Gr 50)
- Slot pitch (always 2" for teardrop, never assume)
- Surface finish (powder coat mil or HDG mil)
π 2. Cross-Brand Compatibility QC
- Confirm existing fleet brand (Interlake/Mecalux/Steel King/Husky)
- Request AME dimensional certification matching that brand
- Order 1-bay sample for on-site fit test BEFORE bulk PO
- Verify beam hook drops into existing upright without binding
- Verify upright slot accepts existing beam without play
π‘οΈ 3. Standards & Permits
- RMI MH16.1 + ANSI MH16.1 (mandatory in USA)
- Stamped engineering by US PE / Canadian P.Eng / Mexican RPI
- Seismic calc per IBC + ASCE 7 for category D-F
- OSHA 29 CFR 1910 load notice plate compliance
- Building permit racking compliance (jurisdiction-specific)
π° 4. Payment & Incoterms
- T/T 30% deposit + 70% before B/L (standard)
- L/C at sight accepted for orders β₯ USD 50,000
- FOB Shenzhen (default) / CIF / DDP Houston / LA / Vancouver
- Performance bond 5% (held 12 months for major projects)
- Net 30-60 OA for repeat customers after 3 successful POs
π’ 5. Logistics & Installation
- 40HQ holds ~600 pallet positions of standard teardrop
- Beams + uprights pre-bundled for direct install sequencing
- Container loading photo + video proof before sailing
- Lead time: 20 days powder coat, 25 days HDG, 25 days seismic
- Installation: local crews already know teardrop (no AME engineer needed for <5,000 positions)
π€ 6. After-Sales & Warranty
- 10-year structural warranty (15 years HDG cold-storage)
- Free replacement beams in 1st year for manufacturing defects
- Annual RMI MH16.3 rack inspection (mandatory commercial DCs)
- Spare parts stocked 15+ years (beams, uprights, pins, anchors)
- Cross-brand spare-parts service (drop-in for Interlake / Mecalux failures)
Everything Warehouse Managers, DC Engineers & Importers Ask About Teardrop Pallet Racking
Real questions from North American warehouse managers, DC engineers, retailer-supplier procurement and 3PL operators during 8+ years of teardrop racking export projects. Bookmark this β it answers ~95% of pre-PO objections.
Q01. What is teardrop pallet racking and why is it the North American standard?
Teardrop pallet racking uses a distinctive teardrop-shaped perforation pattern on the upright column that accepts hook-and-pin beam connectors which gravity-snap-lock without bolts. Originally engineered by Interlake (now Mecalux) in the 1960s, it became the de-facto standard because (1) the angled keyhole guides beams into place by gravity, (2) the locking pin prevents accidental release, (3) the 2-inch slot pitch enables fast reconfiguration. Today every major NA brand uses the same teardrop pattern within Β±0.5mm tolerance.
Q02. Are AME Rack teardrop beams cross-compatible with Interlake / Mecalux / Steel King?
Yes β cross-compatibility is the entire point of teardrop. AME teardrop beams drop into Interlake, Mecalux, Steel King, Husky, Republic and Speedrack uprights β and vice versa. Cross-compatibility is verified in our QC lab using actual brand samples (we maintain a brand-sample library). We recommend ordering 1 sample bay first for on-site fit test before bulk PO.
Q03. What is the typical lead time?
20 days production for standard powder-coat teardrop; 25 days for HDG cold-storage variant; 25 days for seismic Zone D-F ductile configuration; 30 days for custom heavy-duty 6,000+ lb beam pairs. Express 15-day production possible for repeat customers with stock components.
Q04. What beam pair capacity do I need?
Spec to your heaviest pallet, never average. Beam pair must > 2Γ heaviest pallet weight. Common ratings: 3,000 lb / 4,400 lb / 5,000 lb / 6,000 lb / 8,000 lb. Standard 5,000 lb beam pair fits 95% of FMCG / e-com applications (1,500-2,000 lb GMA pallets). 6,000+ lb required for automotive engine blocks, foundry castings, IBC totes.
Q05. Does AME Rack racking meet RMI MH16.1 / ANSI MH16.1?
Yes β full RMI MH16.1 + ANSI MH16.1 compliance. Every project ships with stamped FEA report by chartered US PE / Canadian P.Eng / Mexican RPI engineer. Required for Walmart / Costco / Target / Home Depot / Amazon supplier DCs. Documentation pack includes load notice plates per OSHA 29 CFR 1910 + ANSI MH16.3 inspection protocol.
Q06. Can teardrop racking handle cold storage / freezer?
Yes β order HDG variant: hot-dip galvanized 80-120 ΞΌm per ISO 1461 + Q345B low-temp impact steel (Charpy V-notch tested at -30Β°C). Operating range -25Β°C to +25Β°C. Operating in frozen DCs across USA / Canada / Mexico for 15+ year service life. Sealed perforations prevent freeze-thaw cycle damage.
Q07. Is teardrop racking compatible with California / IBC seismic zones D-F?
Yes β Seismic Zone D-F configuration: A572 Gr 50 ductile uprights + 5/8" chemical anchor bolts with epoxy grout + enhanced K-bracing per ASCE 7 + IBC seismic categories D-F. Stamped seismic calculation by California PE engineer (or local PE for other states / provinces). Required for any racking permit in California, Pacific Northwest, Alaska, Mexico City.
Q08. What is the difference between teardrop and slotted-hole / keystone racking?
Teardrop: Universal North American standard (Interlake / Mecalux / Steel King / Husky / Republic / Speedrack interchange). Slotted-hole: Generic round/oval slots, brand-specific (no universal interchange). Keystone: Republic Manufacturing legacy pattern (Republic now also uses teardrop). Bolt-up: Heavy industrial / mill applications above 8,000 lb. For 95% of NA DCs the answer is teardrop.
Q09. How does AME Rack pricing compare to Interlake / Mecalux / Steel King?
40-55% lower FOB Shenzhen pricing than Mecalux / Interlake / Steel King quotes, even after shipping and 5-10% import duty. We use the same Q345B / A572 Gr 50 steel grades, same RMI MH16.1 design methodology, same teardrop dimensional tolerances. Major Fortune 500 retailers source from us specifically for this cost differential while maintaining brand cross-compatibility.
Q10. How long does teardrop rack take to install per bay?
~60 seconds per beam, ~5 minutes per upright. A standard 8-bay run with 4 beam levels = 32 beams + 9 uprights = approximately 4 hours per bay-line for a 2-person crew. North American installation crews already know teardrop systems β no specialised training needed.
Q11. What is the warranty?
10-year structural warranty on standard powder-coat configurations (uprights, beams, frames). 15-year warranty on HDG cold-storage variants. 10-year + seismic certification on Seismic Zone D-F configurations. Covers manufacturing defects, weld failure, paint corrosion-through. Excludes user damage (forklift impact >400J, overload, chemical exposure outside rated environment).
Q12. Do you ship to USA / Canada / Mexico ports?
Yes β all major North American ports. Direct shipping to Los Angeles, Long Beach, Oakland, Seattle, Tacoma, Vancouver BC, Houston, New York/NJ, Savannah, Charleston, Veracruz, Manzanillo. FOB Shenzhen (default), CIF, DDP available. Typical transit: 18-22 days to West Coast USA, 28-35 days to East Coast / Gulf, 25-30 days to Mexican ports.
Q13. Is annual rack inspection required?
Yes β RMI MH16.3 mandates annual visual inspection for commercial warehouse racking. Conducted by competent person (often SARI / RMI-certified rack inspector). AME provides post-install training; certified inspectors available in most US / Canadian / Mexican metro areas. Reportable damage requires immediate offload and repair β AME ships replacement beams within 7-10 days globally.
Q14. What payment terms do you accept?
Standard: 30% T/T deposit + 70% before B/L. L/C at sight for orders β₯ USD 50,000. Performance bond 5% for major projects (held 12 months). After 3 successful POs, repeat customers can negotiate net 30-60 OA subject to credit check. Major retailer-supplier DCs often arrange escrow / inspection-based payment.
Q15. Can I mix AME teardrop with existing Mecalux fleet in the same warehouse?
Yes β and customers do this all the time for cost-optimised expansion. The teardrop cross-compatibility standard means AME beams + Mecalux uprights (or vice versa) work seamlessly in the same warehouse. We recommend a 1-bay on-site fit test before bulk PO to verify dimensional match. Used by Walmart / Costco / Target supplier DCs across USA for budget-friendly fleet extension.
Get a Teardrop Pallet Rack Quote + Cross-Compatibility Verification in 48 Hours
Send your warehouse CAD + existing brand (Interlake / Mecalux / Steel King / Husky / Republic / Speedrack) + pallet weights + seismic zone β we return RMI-compliant quote, stamped PE engineering, brand cross-compatibility certification and 1-bay sample offer within 48 hours. Free engineering. Free fit-test sample. 40-55% lower than Mecalux / Interlake FOB.
π© 3 Ways to Start the Conversation
π§ Lily@amerack.com
π¬ WhatsApp / Phone: +86 188 2453 7792
π Dongguan, Guangdong, China Β· MONβSAT 09:00β18:00 (GMT+8)
