Cold Storage Racking — Engineered for -30°C, Damp Cycles & 24/7 Refrigerated Operations
A purpose-built racking architecture for refrigerated warehousing and frozen food distribution centres: hot-dip galvanised drive-in, radio shuttle, double-deep and AS/RS systems designed to survive sub-zero temperature swings, condensation, defrost cycles and the impact of forklifts working in cold-rated PPE.
Cold Storage Racking, Summed Up in 10 Quick Facts
- Best rack types: Drive-in + radio shuttle + double-deep dominate refrigerated DCs — density beats access in cold-chain.
- Why density matters: Every cubic metre cooled costs ~$80–$120/yr in energy — denser racking cuts the cold-volume bill.
- Surface finish: Hot-dip galvanised 80–120 μm mandatory below 0°C; powder coat alone cracks under repeated frost cycles.
- Steel grade: Q345B with low-temperature impact testing — verified to -40°C Charpy V-notch ≥27 J.
- Aisle width: Cold-rated reach trucks need 2.7–3.0m; shuttle systems shared aisles save 30–50% floor.
- Max height tested: 14m in radio shuttle / AS/RS configuration for high-bay cold rooms.
- Density gain: Radio shuttle delivers +80% storage vs selective — typical payback inside 36 months from energy + space savings.
- Operating range: Field-proven from +15°C dry-chill to -30°C blast-frozen environments.
- Compliance: EN 15512 · AS 4084 · FEM 10.2.02 · RMI MH16 + HACCP-friendly smooth-surface designs.
- AME Rack lead time: Standard 25 days FOB Shenzhen; HDG batch processing adds 5–7 days vs powder coat.
If You Run a Refrigerated DC, You've Lived These 6 Failures
We've designed racking for cold storage operators from Saudi Arabia to Scandinavia. Six failure patterns come up in nearly every kick-off — each with a proven storage-engineering fix.
"Welds crack after one winter at -25°C"
Standard Q235B steel loses ductility below 0°C. Sub-zero temperature combined with forklift impact propagates micro-cracks into weld joints.
"Powder coat blistered at the base in 18 months"
Defrost cycles drive condensate to the floor — pooled water at base plates eats through powder coat finish in less than two years.
"Refrigeration bill kills the unit economics"
Every cubic metre cooled below -20°C costs $80–$120 per year in energy. Half-empty wide-aisle racking wastes that cost.
"Drivers in PPE = more rack damage"
Cold-rated drivers wearing thick PPE have reduced peripheral vision. Drive-in racks get hit 3× more often than ambient warehouses.
"Frost on rack rails jams the shuttle"
Humidity from inbound goods condenses then freezes on horizontal surfaces, jamming shuttle cars and damaging gear motors.
"Auditor flagged wood and porous surfaces"
HACCP and BRC food-safety audits reject wooden pallets at rack contact and any porous or rust-prone surfaces.
9 Racking Systems Built for Refrigerated & Frozen Storage
A cold-chain DC rarely uses one rack type. Below are the nine systems we deploy — typically combined — to maximise pallet density per cubic metre cooled, while protecting against frost, condensation and impact damage.

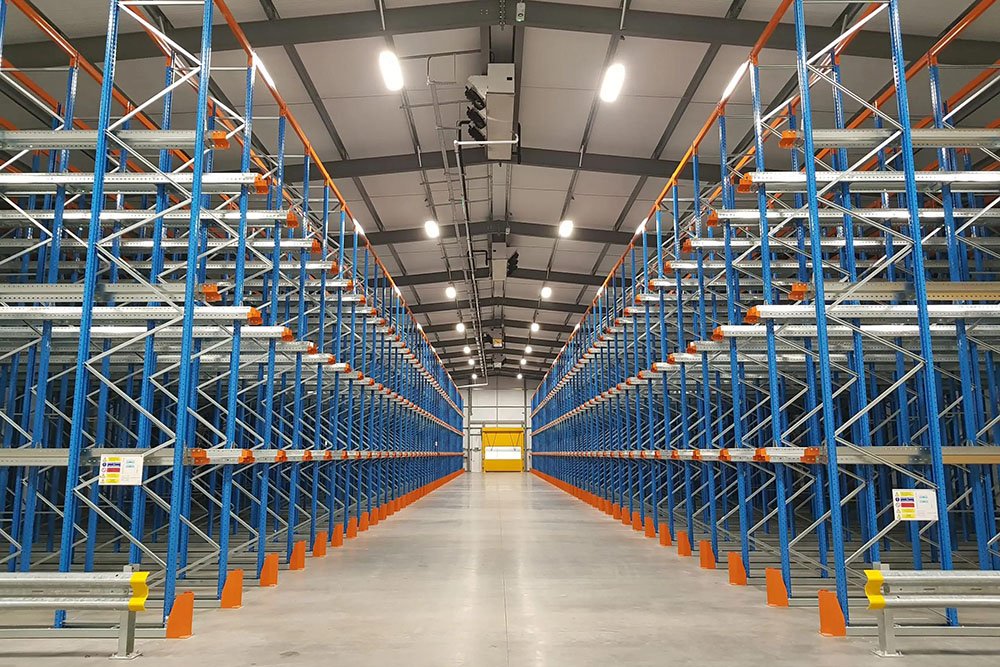

Drive-In Racking
Single-SKU LIFO storage that wins on density — the cold-storage default for slow-moving frozen stock. Up to 60% less cooled volume vs selective.

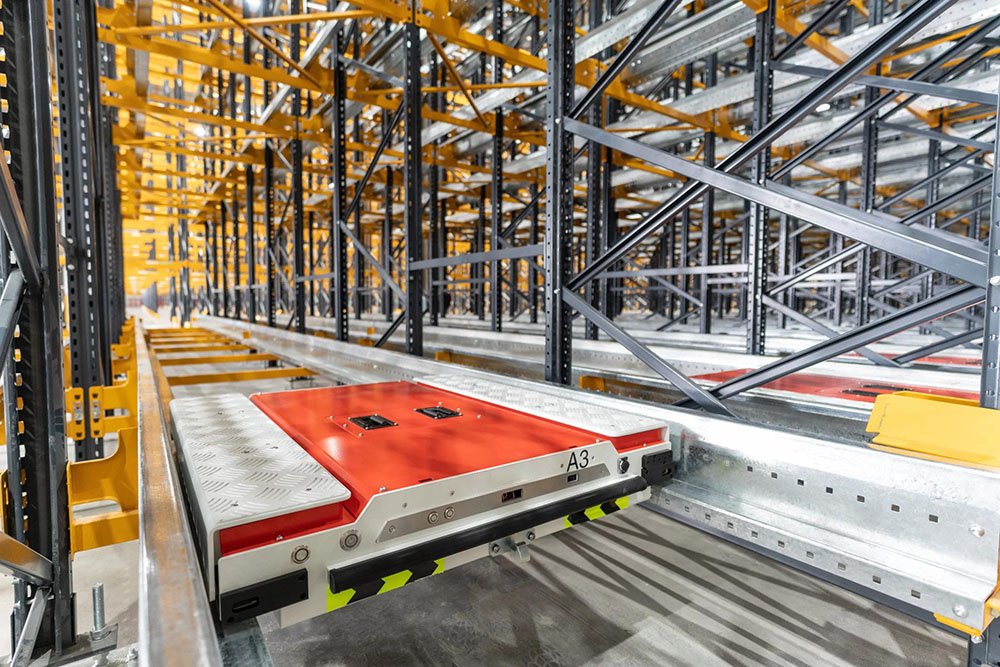

Radio Shuttle Racking
Battery-powered shuttle cars enable deep-lane density with automated FIFO/LIFO. Specified with sealed IP66 motors and frost-shedding rails for -30°C duty.
Double-Deep Racking
Two pallets deep with reach truck access. Adds 35% density vs selective while keeping fast access — pragmatic for chilled DCs with mixed SKU profile.

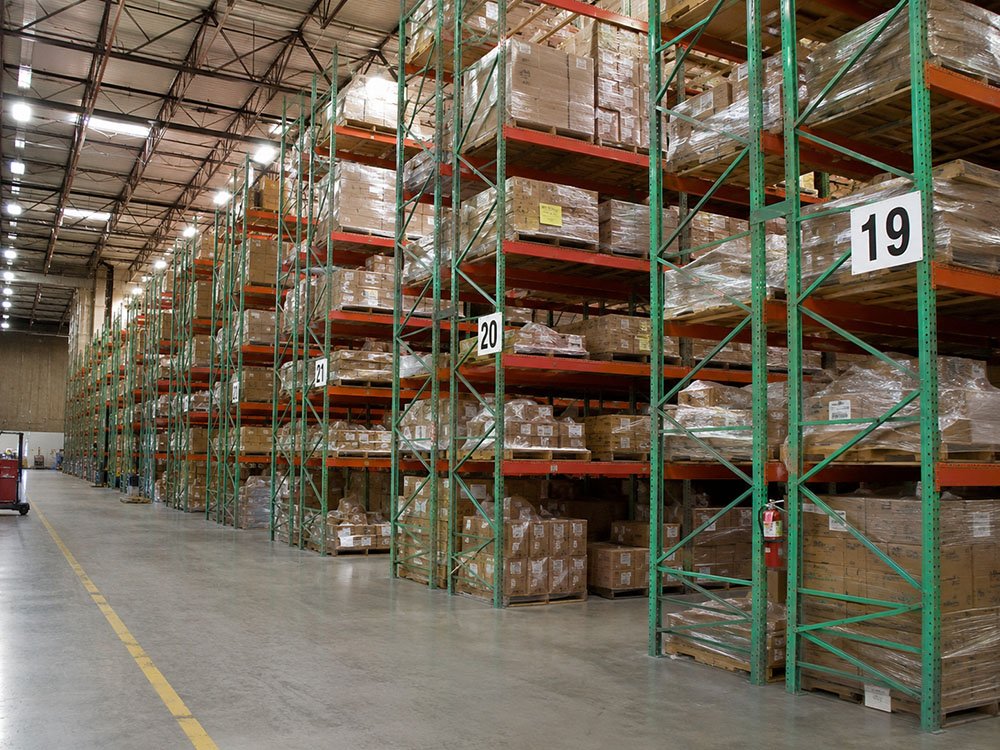

Selective Pallet Racking (HDG)
Hot-dip galvanised selective pallet racking — the cold-storage backbone for inbound staging, mixed SKU and small-batch picking zones.

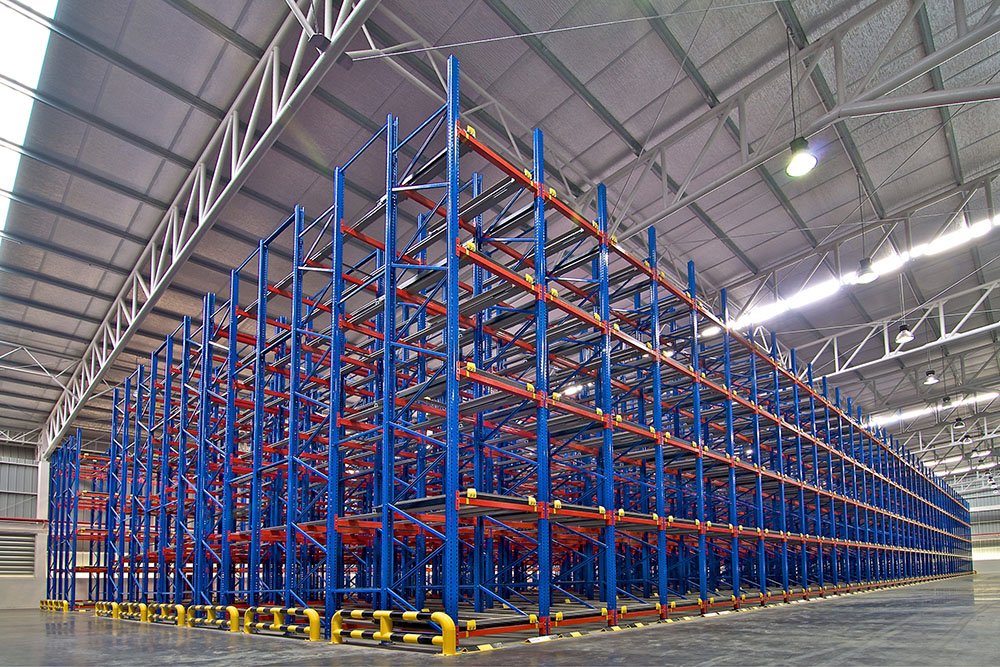

Pallet Flow Rack
Gravity-roller deep lanes — load at back, pick at front. Pure FIFO for date-critical frozen pharma, dairy and ready-meal categories.

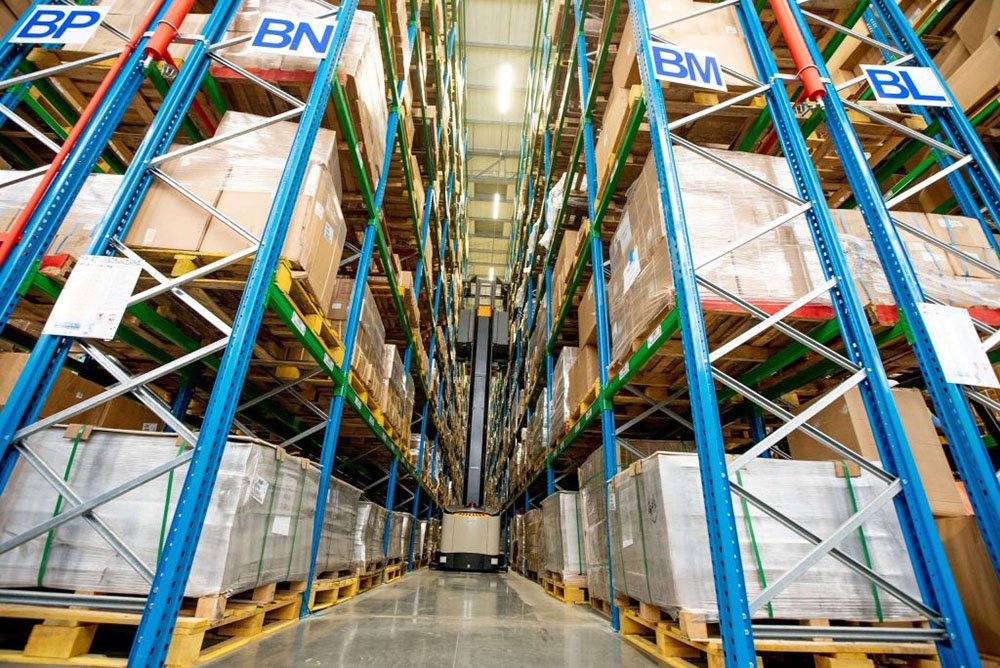

VNA Racking (HDG)
Very-narrow-aisle racking unlocks 12m+ heights in cold rooms. Combines selective access with major cubic-volume gain — best ROI when cooled volume is expensive.

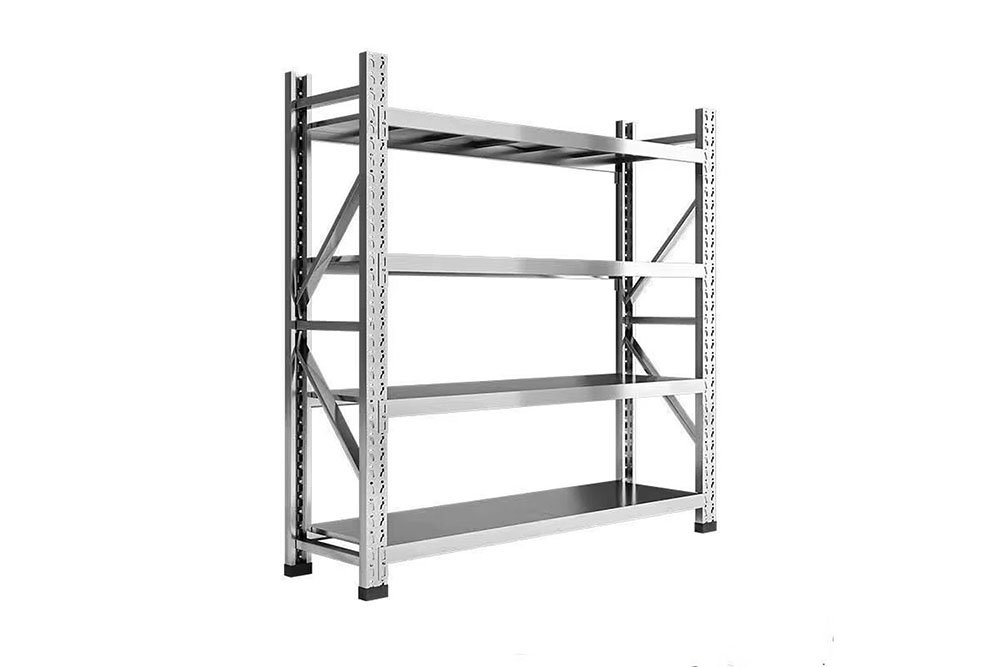

304 Stainless Steel Racking
AISI 304 stainless construction for direct food-contact zones, processing rooms and pharma cold storage. HACCP / BRC / GMP compliant smooth-weld finish.

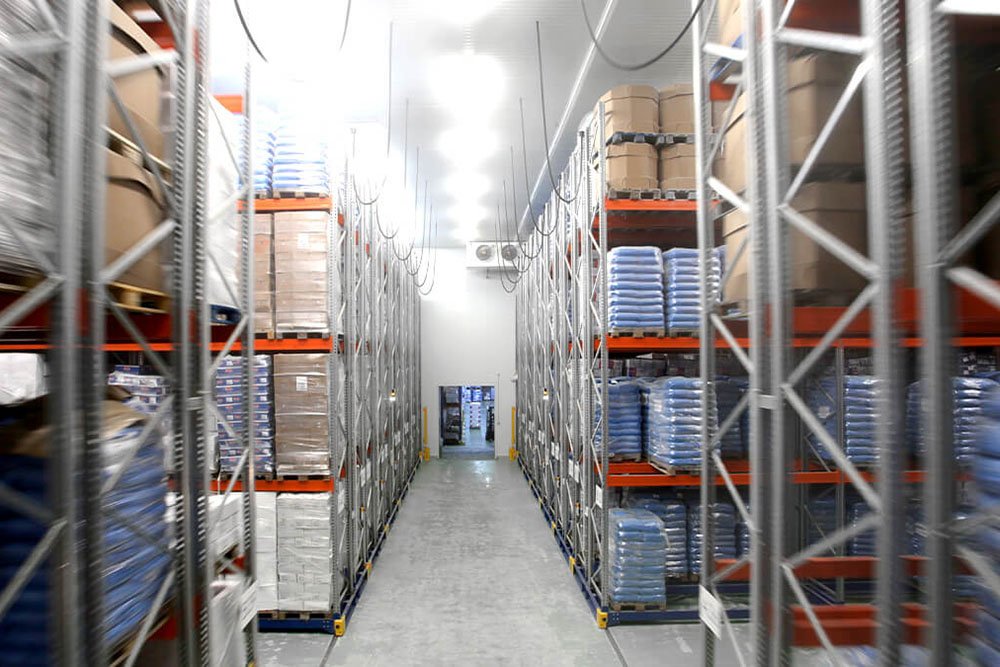

Mobile Pallet Racking
Selective pallet racks mounted on motorised mobile bases — only one working aisle opens at a time. Cuts cooled volume by up to 80% while keeping 100% pallet access; the lowest cost-per-pallet in any cold room.

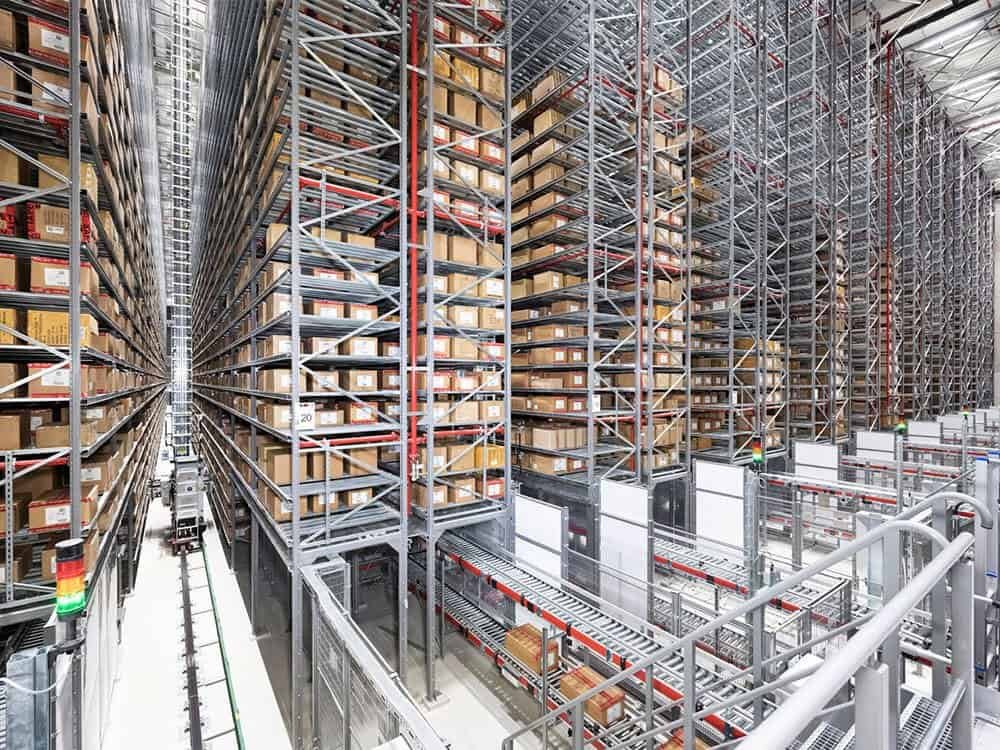

AS/RS for Cold Storage
Cold-rated stacker cranes + WMS-integrated automation. Minimises human exposure to sub-zero environments and runs lights-out for max energy efficiency.
Cold Storage Installations Running 24/7 Below Zero
Three recent cold-chain builds where AME Rack supplied the racking architecture — each project name, scale, temperature and operating duration available with signed buyer feedback on request.

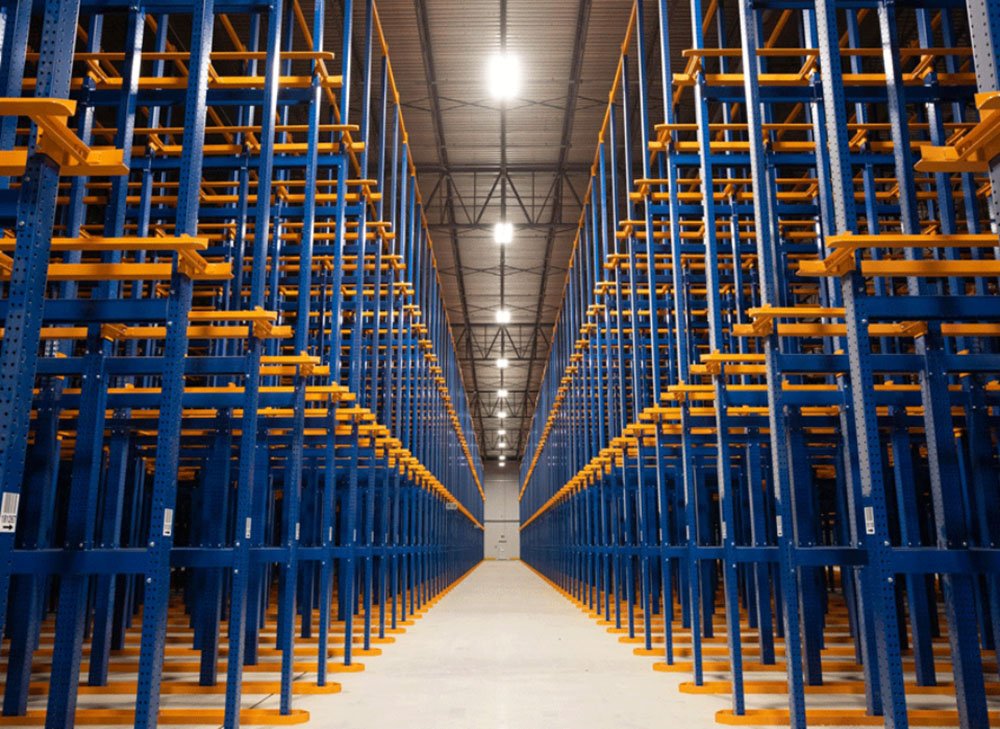

-25°C Drive-In Cold Storage for Unilever Europe
Drive-in racking project for Unilever's European frozen distribution hub. HDG 120 μm finish, Q345B cold-impact tested, sealed base-plate anchors. Continuous service since 2019 with zero structural defect claims.

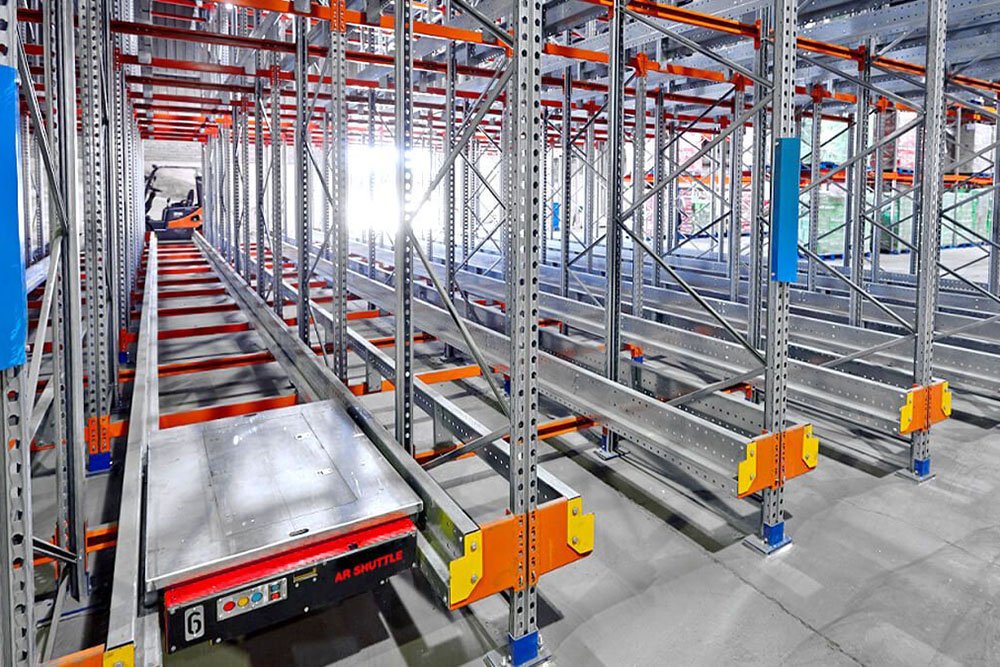

Radio Shuttle System for Brazilian Frozen Beef DC
5,000 pallet positions of radio shuttle racking for a São Paulo frozen-beef exporter. Sealed IP66 shuttle motors, frost-shedding rails, full WMS integration. Battery life and throughput exactly as specified after 18 months.

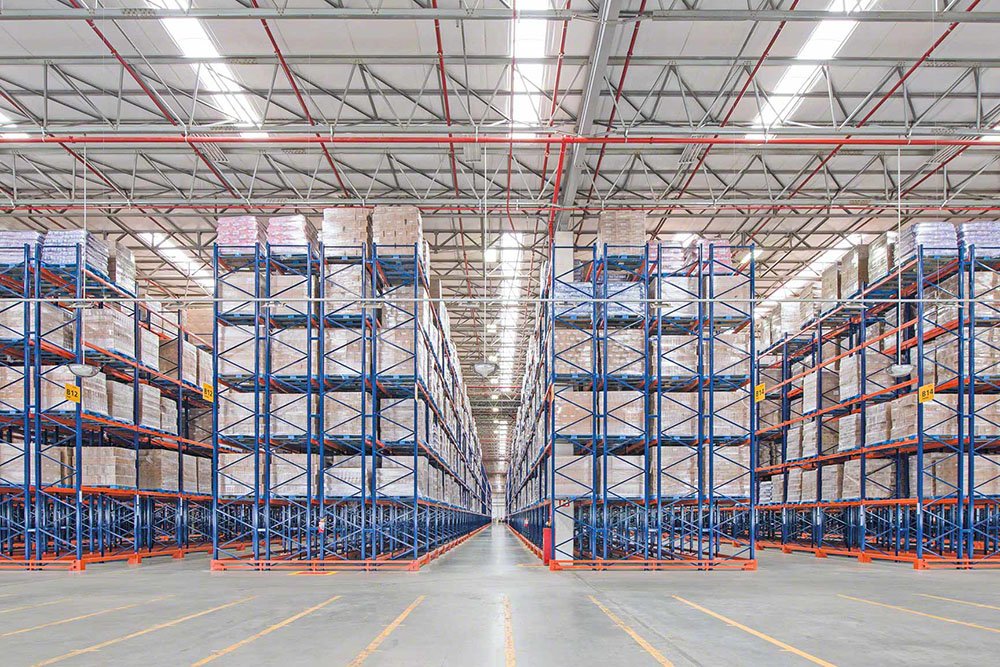

Double-Deep Chilled Dairy Hub in UAE
2,400 pallet position double-deep system at +2°C for a Gulf dairy distributor. HDG finish + condensate drainage slots designed for 50°C → +2°C dock-to-room delta. Delivered in 32 days to Dubai port.
Cold Storage Racking Engineering Specs
Parameters cold-chain consultants and refrigeration engineers ask for first. Every project ships with stamped FEA report and HDG inspection certificate as standard.
| Parameter | Drive-In | Radio Shuttle | Double-Deep | Selective HDG | VNA HDG |
|---|---|---|---|---|---|
| Operating Temp Range | +2°C to -30°C | +2°C to -30°C | +5°C to -25°C | +15°C to -30°C | +5°C to -25°C |
| Standard Height | 6–10 m | 8–14 m | 5–10 m | 3–8 m | 10–14 m |
| Aisle Width | Shared | Shared | 2.8–3.0 m | 2.7–3.0 m | 1.6–1.8 m |
| Pallet Capacity | 1,000–1,500 kg | 1,000–1,500 kg | 1,000–1,800 kg | 1,000–2,500 kg | 1,000–2,000 kg |
| Density vs Selective | +60% | +80% | +35% | Baseline | +45% |
| Steel Grade | Q345B cold-impact | Q345B cold-impact | Q345B | Q345B | Q345B |
| Charpy V-notch @ -40°C | ≥ 27 J | ≥ 27 J | ≥ 27 J | ≥ 27 J | ≥ 27 J |
| Surface Finish | HDG 80–120 μm | HDG 80–120 μm | HDG 80–120 μm | HDG 80–120 μm | HDG 80–120 μm |
| Salt-Spray Test | 1,000h | 1,000h | 1,000h | 1,000h | 1,000h |
| Base Plate Drainage | ✓ Slotted | ✓ Slotted | ✓ Slotted | ✓ Slotted | ✓ Slotted |
| Compliance | EN 15512 · AS 4084 · RMI MH16 · FEM 10.2.02 · HACCP-friendly | ||||
| Typical Lead Time | 25 days | 30–35 days | 25 days | 25 days | 30 days |
How to Choose: When A vs B for Your Cold-Chain DC
Six trade-off decisions specific to refrigerated warehousing. Use these to narrow options before requesting a detailed layout from our cold-chain engineering desk.
Drive-In vs Radio Shuttle?
Pick Drive-In when daily throughput < 5 pallets/h per lane — lowest capex. Pick Radio Shuttle when throughput > 8 pallets/h or you need FIFO; payback in 24–36 months from labour + energy savings.
HDG vs Powder Coat in Cold Storage?
HDG (hot-dip galvanised) is mandatory below 0°C — 80–120 μm coating survives defrost cycles and condensation for 15+ years. Powder coat alone cracks at the base within 18–24 months in sub-zero duty.
Q235B vs Q345B Steel?
Q345B with low-temp impact testing is the cold-storage standard (Charpy V-notch ≥27 J at -40°C). Q235B loses ductility below 0°C and is only acceptable for chilled rooms above +2°C.
Pallet Flow vs Push-Back?
Pallet Flow for date-critical dairy, frozen meals, frozen pharma — pure FIFO. Push-Back for non-date-sensitive frozen veg, ice cream where LIFO is acceptable and you want lower capex.
When does AS/RS pay back in cold storage?
AS/RS payback is faster in cold storage than ambient — typically 2.5–4 years — because lights-out operation eliminates cold-PPE labour cost and dense slotting cuts cooled volume. Threshold: >20K daily picks (lower than ambient).
Single-deep vs Double-deep for chilled chain?
Single-deep selective for chilled DCs with high SKU mix (e.g. dairy distribution). Double-deep when 50%+ of SKUs run in pallet pairs — 35% density gain with only 2-step reach truck cycle.
Side-by-Side: Which Cold-Storage Rack Wins for Your Use Case
Six rack types × eight cold-chain selection criteria. The shortcut most procurement managers wish they had before issuing the RFQ to multiple Chinese suppliers.
| Selection Criteria | Drive-In | Radio Shuttle | Double-Deep | Selective HDG | Pallet Flow | Mobile Pallet |
|---|---|---|---|---|---|---|
| Storage Density | ★★★★ | ★★★★★ | ★★★ | ★★ | ★★★★ | ★★★★★ |
| Cold-Volume Efficiency | ★★★★ | ★★★★★ | ★★★ | ★★ | ★★★★ | ★★★★★ |
| FIFO Capability | ★ | ★★★★★ | ★★ | ★★★★ | ★★★★★ | ★★★★ |
| Capex (per pallet) | $ Low | $$$$ Very High | $$ Mid | $ Low | $$$ High | $$$ High |
| Corrosion Resistance | ★★★★ | ★★★★ | ★★★★ | ★★★★ | ★★★★ | ★★★★ |
| HACCP / GMP Ready | ★★★ | ★★★ | ★★★ | ★★★ | ★★★ | ★★★ |
| Installation Time | 7–14 days | 21–35 days | 10–18 days | 7–10 days | 14–21 days | 18–28 days |
| Best Match Goods | Frozen meat / IQF | FMCG frozen | Chilled dairy | Mixed staging | Frozen pharma | High-cost cold rooms |
Cold Storage Racking Buyer's FAQ
The 15 questions cold-chain procurement managers and refrigeration engineers ask before issuing the first PO.
01What is the best racking system for cold storage and refrigerated warehousing?
02Down to what temperature can AME Rack cold storage racking operate?
03Why is hot-dip galvanising required in cold storage racking?
04What steel grade is used for cold-rated racking?
05How much energy can dense racking save in a refrigerated warehouse?
06Are AME Rack cold storage systems HACCP and BRC compliant?
07How long does cold storage racking take to install?
08What is the lead time for cold-rated racking from order to FOB Shenzhen?
09Can radio shuttle racking handle -25°C operation reliably?
10Do you provide structural calculations for cold storage building authorities?
11What is the warranty on cold storage racking?
12Can I run forklifts wearing cold-rated PPE between your racking?
13What documentation ships with cold storage racking?
14Do you ship cold storage racking to North America, Europe and the Middle East?
15How does AME Rack pricing compare for cold storage projects?
Ready to Design the Right Rack Mix for Your Cold-Chain DC?
Send your cold room dimensions, operating temperature, pallet specs and daily throughput — receive 3D layout, FEA report, HDG inspection plan and FOB quotation within 4 working hours. Zero commitment.
