Roll Containers — Nestable, Foldable & Wheeled Cage Trolleys for Last-Mile Logistics
The standard wheeled-cage workhorse of retail distribution, supermarket replenishment, postal and parcel logistics, laundry and pharmacy operations. AME Rack manufactures CHEP-pool-compatible roll containers — A-frame, Z-frame, 2-sided, 3-sided and 4-sided variants with hinged or split-gate front, electro-galvanized / hot-dip galvanized / powder-coat finishes, compliant with EN 12674, NEN-EN 12674-3 (Dutch postal), DPD and Royal Mail specs.
The Wheeled Cage Trolley Behind Every Supermarket Replenishment Run
A roll container (also called roll cage, roll pallet, nestable roll container, cage trolley, distribution trolley, supermarket roll cage, postal roll container, wheeled storage cage, rolling cage or logistic trolley) is a 4-wheel mobile cage used as the universal last-mile delivery unit across retail, postal, pharmacy, laundry and 3PL operations worldwide.
Where a wire mesh container ships pallet loads from factory to warehouse, the roll container takes over for the last 50 meters — from warehouse dock to store shelf, from sorting centre to delivery van, from laundry to hospital ward. The integrated 4-wheel base (typically 125–200mm rubber or PU swivel castors) lets a single operator move 400–500 kg without a forklift.
The engineering trick that makes a roll container so logistics-friendly is nesting and folding. A-frame and Z-frame designs nest 4–6 deep when empty (footprint shrinks to 1/4); 4-sided folding designs collapse flat for return shipping. Three full containers can return in the volume of one assembled — turning the empty-leg of a closed-loop delivery network from a cost into a fraction of its outbound spend.
AME Rack manufactures roll containers compliant with EN 12674 (European roll container standard), NEN-EN 12674-3 (Dutch postal / TNT spec), BS EN 12674-4, VDA 4500, CHEP-pool compatibility, DPD parcel roll and Royal Mail York container specs. Mill test certificates and load-test reports are issued free with every project.

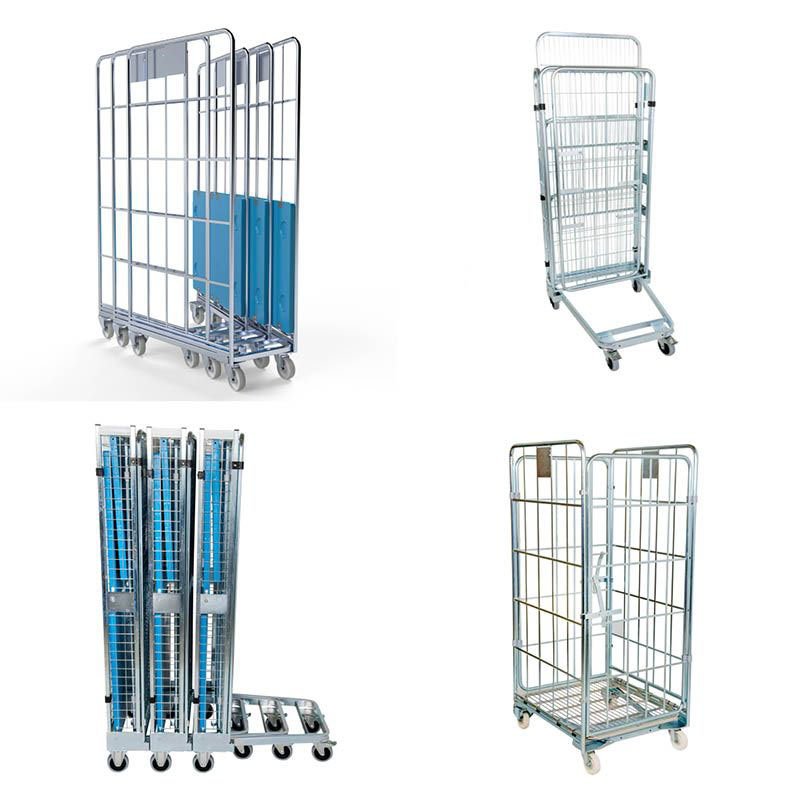

Foldable Roll Container — 500 kg Load
Why Roll Containers Win the Last-Mile Logistics Race
Eight reasons returnable roll cages have become the default last-mile delivery unit across retail, postal, pharmacy and 3PL operations worldwide.
4-Wheel Mobility
Integrated 125–200mm rubber/PU castors — 1 operator moves 400–500 kg load across smooth and rough floors. 2 swivel + 2 fixed (or 4 swivel) configurations.
Nestable -75% Footprint
A-frame and Z-frame designs nest 4–6 deep when empty. 4 nested roll cages occupy the footprint of 1 — recovers 75% of empty-cage storage area in DC and store back-rooms.
500 kg Load Capacity
Standard 500 kg rated payload — handles a full pallet of supermarket replenishment, postal parcels, laundry bags or pharmacy totes per trip.
Split-Gate Front Access
Hinged 2-piece front gate with locking pins — top half opens for top-load pick, bottom half opens for full access without lifting overstock.
EN 12674 Certified
FEA-verified to EN 12674 (European roll container), NEN-EN 12674-3 (Dutch postal/TNT), BS EN 12674-4 and VDA 4500. Stamped load test report issued free.
10-Year Pool Lifecycle
200+ trip cycles, 10-year service life with replaceable castor wheels and bolt-on parts. Standard pool unit for CHEP, DPD, Royal Mail and major retailer fleets.
OEM Brand Colour
RAL-matched powder coat (red / green / blue / yellow / corporate colour) for retailer fleet identification and pool segregation. Brand logo silkscreen or sticker available.
Globally Shipped
Exported to 65+ countries; FOB / CIF / DDP supported. 200 nested or 240 folded units per 40HQ container — the most freight-efficient roll cage on the market.
6 Configurations of Roll Container
Roll containers in six standard variants — from open-access order picking cages to fully-enclosed anti-theft security containers. Pick the panel configuration, access mode and folding option that match your industry, security level and return-logistics workflow.

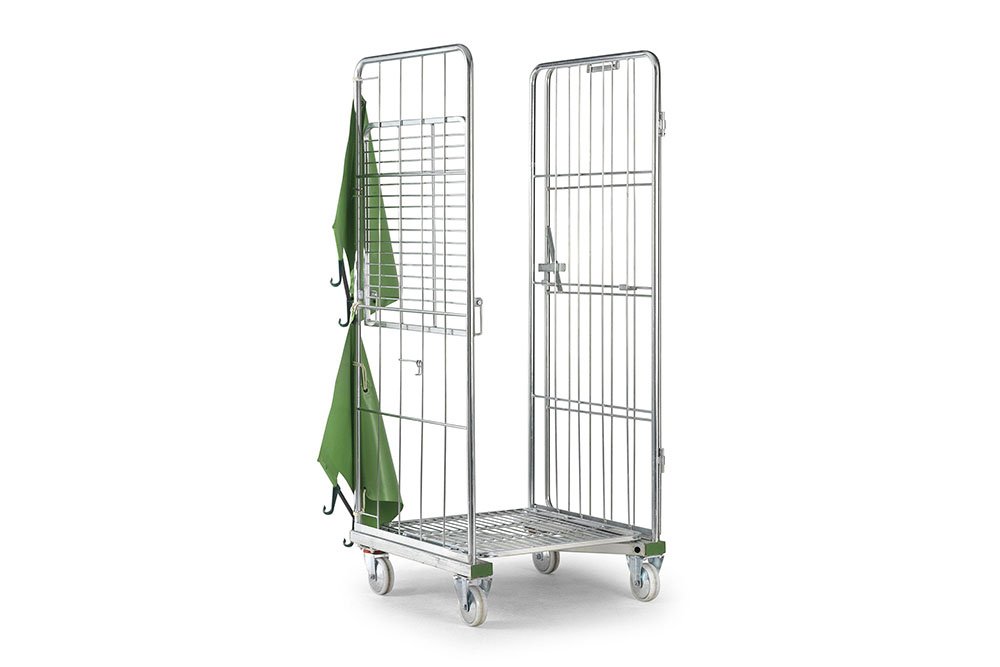

2-Sided Roll Container
Two mesh side panels with open front and back for maximum accessibility. Ideal for order picking, goods loading and fast-paced distribution environments.

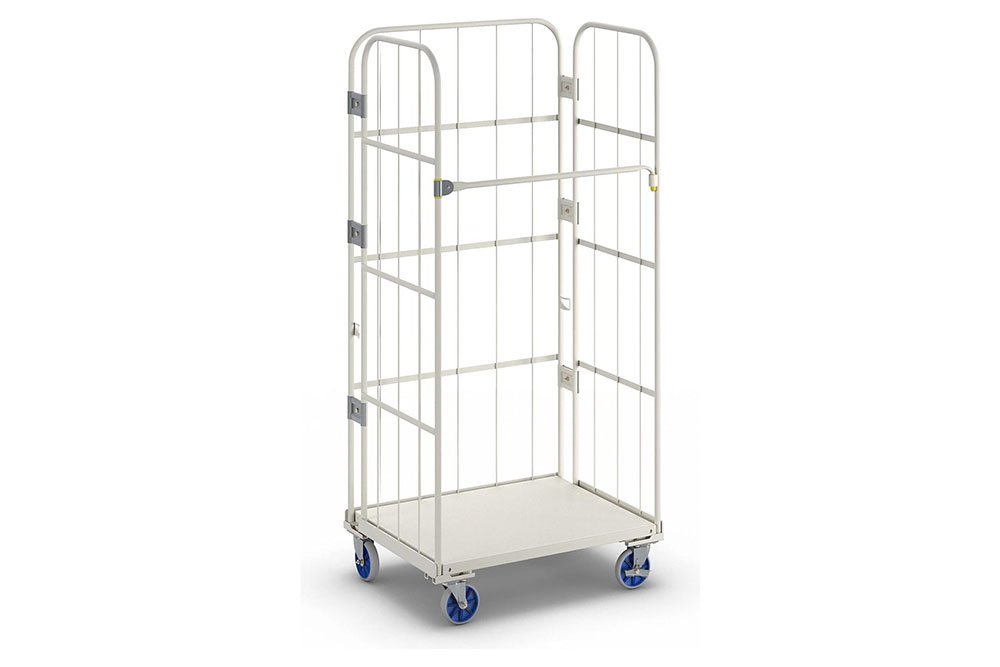

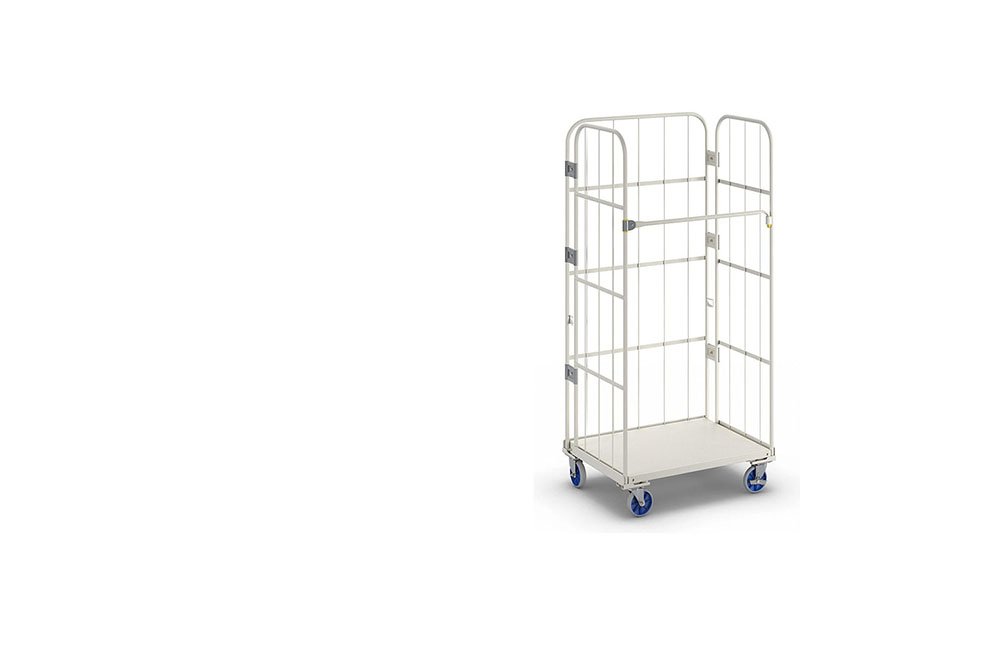

3-Sided Roll Container
Three enclosed sides with one open face for easy front loading. The most popular configuration for retail replenishment and last-mile logistics.

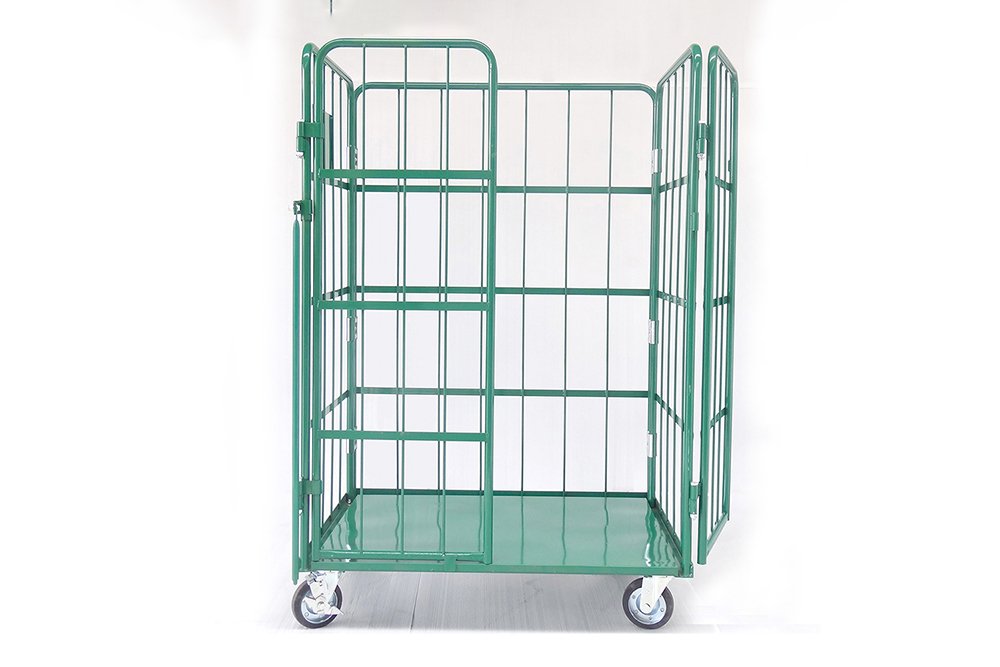

4-Sided Roll Container
Fully enclosed on all four sides with hinged front gate or drop-down door. Maximum containment for loose items, small parcels and valuable goods.

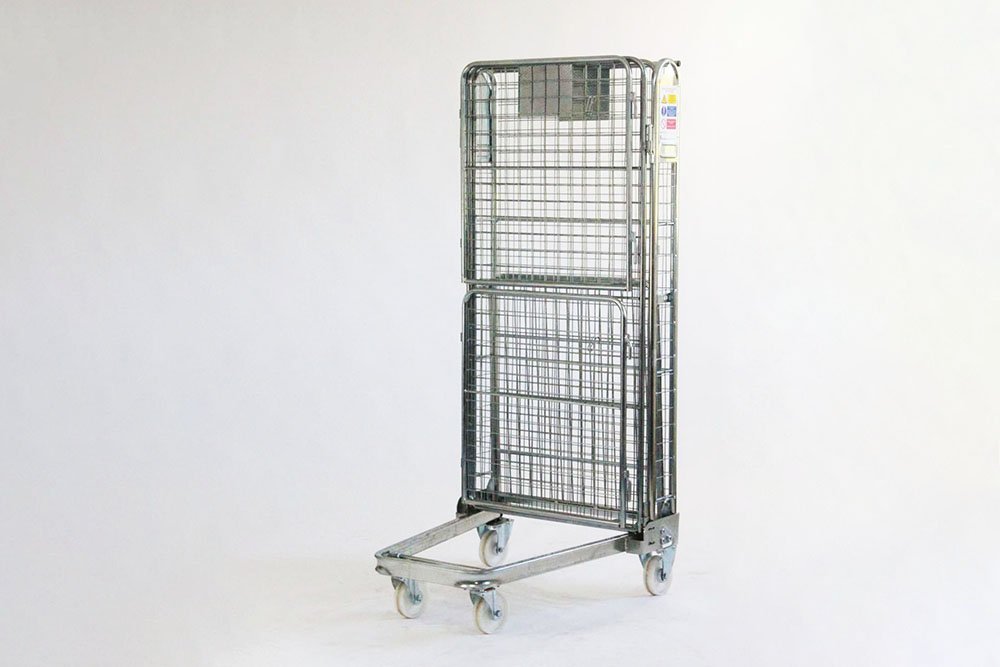

Nestable Roll Container
A-frame design nests up to 6 units into the footprint of one when empty — cuts return-freight cost dramatically. The standard choice for closed-loop distribution networks.

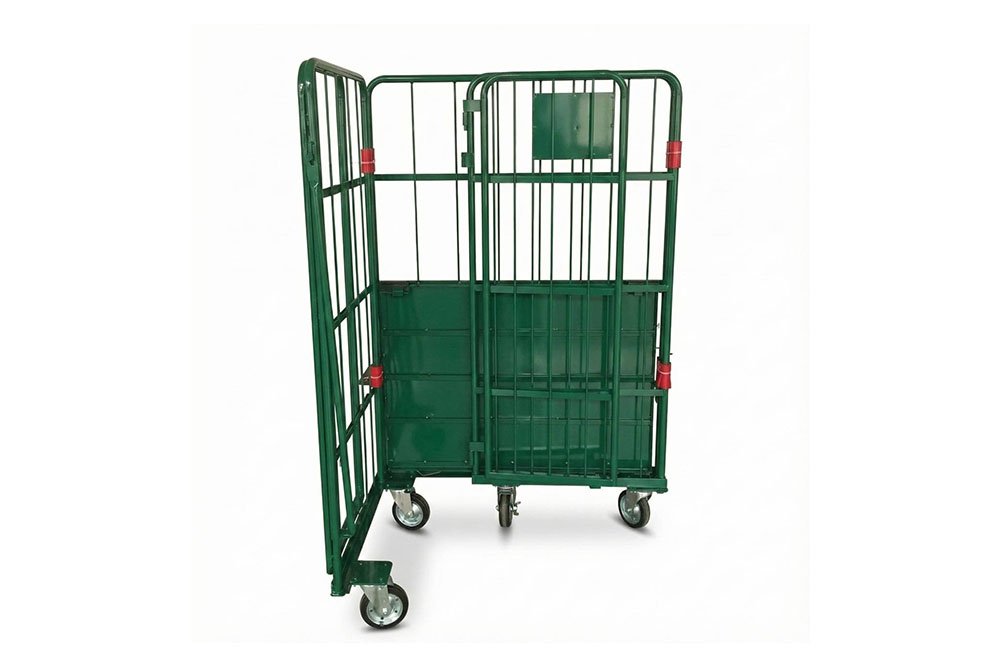

Foldable Roll Container
Folds flat when empty — panels collapse onto the base for compact return shipping and off-season storage. Fits four times as many units in the same truck as static cages.

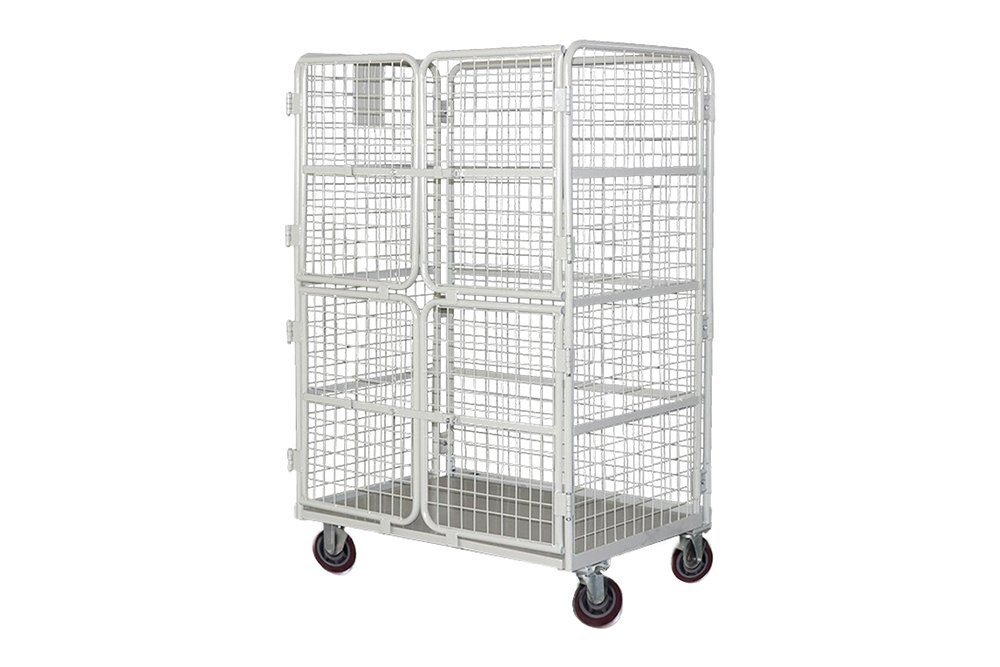

Security Roll Container
4-sided cage with lockable hinged doors, tamper-evident seal points and reinforced mesh. Standard for pharmacy distribution, electronics and other high-value goods in transit.
Engineered Technical Parameters — 6 Standard Configurations
Standard catalogue specs across all six roll container variants. All dimensions, panel gauges, castor sizes and finishes fully customisable — send target load, transport network and required nesting / folding option for a project-specific quote.
| Parameter | 2-Sided | 3-Sided | 4-Sided | Nestable | Foldable | Security |
|---|---|---|---|---|---|---|
| ▎Application & Access | ||||||
| Best For | Order picking, DC | Retail, supermarket | Parcel sorting | Return logistics | Seasonal / low freq. | Pharma, high-value |
| Panel Config | 2 mesh sides | 3 mesh sides | 4 mesh sides | 3 sides + A-frame | 4 sides collapsing | 4 sides + locks |
| Access Mode | 2-side open | Front open | Hinged gate | Front open | Split front | Twin lockable doors |
| ▎Load & Handling | ||||||
| Load Capacity | 300 – 500 kg | 300 – 500 kg | 400 – 600 kg | 400 – 500 kg | 400 – 500 kg | 400 – 600 kg |
| Empty Weight | 25 – 35 kg | 28 – 40 kg | 35 – 50 kg | 28 – 38 kg | 32 – 45 kg | 40 – 55 kg |
| Stacking | Yes (side-by-side) | Yes (3:1 nest) | Stackable (top-load) | Up to 6:1 nest | Folded flat 200 mm | Not stackable |
| ▎Dimensions (Standard) | ||||||
| External W × D | 720 × 810 mm | 720 × 810 mm | 720 × 810 mm | 720 × 810 mm | 720 × 810 mm | 720 × 810 mm |
| Overall Height | 1,650 mm | 1,650 – 1,830 mm | 1,650 – 1,830 mm | 1,650 mm | 1,650 mm | 1,650 – 1,830 mm |
| Custom Sizes | Available | Available | Available | Available | Available | Available |
| ▎Structure & Materials | ||||||
| Base Type | Steel base plate | Steel base plate | Steel base plate | A-frame steel | Steel base + hinges | Reinforced steel plate |
| Panel Mesh Wire | Ø 4.0 – 5.0 mm | Ø 4.0 – 5.0 mm | Ø 4.5 – 5.0 mm | Ø 4.0 – 5.0 mm | Ø 4.0 – 5.0 mm | Ø 5.0 – 6.0 mm |
| Mesh Opening | 50 × 100 mm | 50 × 100 mm | 50 × 100 mm | 50 × 100 mm | 50 × 100 mm | 25 × 50 mm (tight) |
| Steel Grade | Q195 / SPCC | Q195 / SPCC | Q235B | Q195 / SPCC | Q235B | Q235B / Q345B |
| ▎Castors & Wheels | ||||||
| Castor Diameter | 125 mm | 125 – 150 mm | 125 – 200 mm | 125 mm | 125 – 150 mm | 150 – 200 mm |
| Castor Type | 4 × swivel | 2 swivel + 2 fixed | 2 swivel + 2 fixed (brake) | 4 × swivel | 2 swivel + 2 fixed | 2 swivel + 2 fixed with brake |
| Wheel Material | PU / rubber | PU / rubber | PU / TPR | PU / rubber | PU / rubber | TPR / phenolic (anti-noise) |
| ▎Security & Options | ||||||
| Locking System | — | — | Padlock ring (opt.) | — | — | Twin padlocks + seal points |
| Tamper-Evident Seal | — | — | Available | — | — | Standard |
| Shelf / Divider | 1 middle shelf opt. | 1 middle shelf opt. | 1 – 2 middle shelves | 1 removable shelf | 1 folding shelf | 1 – 2 middle shelves |
| ▎Finish & Compliance | ||||||
| Surface Finish | Electro-Galv. / Powder | Electro-Galv. / Powder | Electro-Galv. / Powder | Electro-Galv. | Powder coat | Powder coat / HDG |
| Compliance | EN 12674 | EN 12674 / NEN-EN | EN 12674 | EN 12674 | EN 12674 | EN 12674 · GDP-ready |
| ▎Commercial | ||||||
| Lead Time | 12 – 15 days | 12 – 15 days | 15 – 18 days | 15 – 18 days | 18 – 22 days | 18 – 22 days |
| MOQ (units) | 100 | 100 | 100 | 100 | 100 | 50 |
| Container Load (40HQ) | ~ 480 pcs | ~ 380 pcs | ~ 220 pcs | ~ 900 pcs (nested) | ~ 1,600 pcs (folded) | ~ 180 pcs |
10 Engineered Parts of a Roll Container
Every roll container we ship is built from the same 10-part architecture — designed for repairability, returnability and 10+ year service life in closed-loop last-mile logistics.
Welded Steel Wire / Tube Mesh
Ø19–25mm tube frame + Ø4–5mm wire mesh on 50×50mm grid. Robot-welded at every intersection — 250+ welds per side panel.
4× Castor Wheels
Ø125 / 150 / 200mm rubber, PU or nylon castors. 2 swivel + 2 fixed (or 4 swivel) configurations. Sealed precision bearings for low rolling resistance.
Steel-Plate / Plywood Base
Choice of pressed steel plate (3mm), HDG steel base, or 18mm plywood. Steel for retail / postal; plywood for laundry / parcel.
Hinged Side Panels
Side walls hinge inward for nesting (A/Z-frame) or fold flat (4-sided). Stainless steel hinge pins — 200+ cycles without backlash.
Split Gate Front (2-piece)
Top + bottom half-gates open independently. Top for top-load pick, bottom for bottom-load access. Spring-lock latch on each piece.
Identification Label Holder
A5 acrylic plate holder on front gate or side — for route card, batch label, retailer ID, RFID tag mount. CHEP / DPD / Royal Mail label compliant.
Castor Brake (Optional)
Foot-operated brake on 2 of the 4 castors — for ramp loading, stationary picking, and incline parking. Critical for parcel delivery vans.
Adjustable Middle Shelf
Optional 1–2 middle shelves on 50mm slot pitch — separates pharmacy totes, laundry bags, small parcels. Removable for full-height items.
Lock / Seal Eye
Hasp + padlock eye on the gate frame — accepts standard pad lock or numbered security seal. Required for pharmacy, electronics and high-value retail.
Surface Finish
Standard: electro-galvanized 8–15 μm. Outdoor: HDG 60–90 μm per ISO 1461. Retail/postal: powder coat RAL colour 60–80 μm over zinc.
8 Industries Running on Roll Containers
Eight industries where roll cages deliver measurable cost savings — wherever last-mile mobility, returnable packaging, nestable storage and pool-fleet logistics matter more than rigid pallet shipping.
Supermarket Replenishment
Carrefour, Tesco, Aldi, Walmart — daily backstore-to-shelf replenishment runs. A-frame nestable is the global default.
Postal & Parcel Logistics
TNT, DPD, DHL, Royal Mail, China Post sortation centres — Z-frame NEN-EN 12674-3 standard. 24/7 conveyor and van-loading cycles.
Pharmacy & Hospital
Pharma distribution to chemists and hospital wards — 4-sided lockable with split gate. Optional barcode tag mount for batch traceability.
Laundry & Linen Services
Hospital laundry, hotel linen, uniform services — plywood base + 4-side cage. HACCP-friendly for laundered medical linens.
E-Commerce Fulfillment
Amazon, JD, Shopify 3PL — pick-and-pack roll cages with split gate and adjustable shelves. Optimised for parcel sortation and last-mile van loading.
Bakery & Fresh Food
Bread, frozen goods, dairy — HDG-finish cold-chain roll cage with sealed bearing castors rated to -25°C.
Hotel & Hospitality
Hotel housekeeping carts, banquet equipment, F&B replenishment — branded powder coat finish with retailer/hotel logo.
In-Plant Material Flow
Factory line-side material movement, WIP transport, kitting cart — adjustable shelf variants with locking castors.
How to Spec a Roll Container Fleet in 3 Decisions
Three decisions determine whether your roll cage fleet runs smoothly for 10 years — or breaks down in 18 months. Work through them before requesting your quote.
Frame Type: A-Frame, Z-Frame or 4-Sided?
Frame topology drives both nesting efficiency and security. Pick the one that matches your industry standard.
- A-Frame — Supermarket / retail; nests 6 deep; -75% empty
- Z-Frame — Postal / parcel; NEN-EN 12674-3; nests 5 deep
- 4-Sided Foldable — Pharma / high-value; folds flat; lockable
- 2-Sided Open — Apparel / fast pick; max access; no security
Castor Spec: Wheel Diameter & Material
The #1 cause of premature failure. Match the wheel to your floor and operator workflow — the wrong castor lasts 6 months, the right one lasts 10 years.
- Ø125mm rubber — Indoor smooth floor, light load
- Ø150mm PU — Indoor warehouse, 400 kg load, low-noise
- Ø200mm rubber — Outdoor / rough surface / ramp use
- 4 swivel — Tight aisle (omnidirectional)
- 2 swivel + 2 fixed — Straight-line tracking (postal)
Finish: EG, HDG or Powder Coat?
Surface finish drives lifecycle cost and brand alignment. Powder coat is the default for retailer pool fleets.
- EG 8–15 μm — Indoor only, 3–5 yr life, lowest cost
- HDG 60–90 μm — Outdoor / cold-chain, 10+ yr life
- Powder coat over zinc — RAL brand colour, 7+ yr life
- 304 stainless — Pharma / food-contact, 15+ yr life
| Selection Criteria | A-Frame Retail | Z-Frame Postal | 4-Sided Pharma | HDG Outdoor |
|---|---|---|---|---|
| Best industry | Supermarket, retail DC | Postal, parcel, courier | Pharmacy, electronics | Outdoor, cold-chain |
| Standard compliance | EN 12674 | NEN-EN 12674-3 | EN 12674 · BS 12674-4 | ISO 1461 + EN 12674 |
| Nesting / folding | Nests 6 (-75%) | Nests 5 (-70%) | Folds flat (-65%) | Folds flat (-60%) |
| Security level | Low (3-sided) | Low–medium | High (lockable) | Medium |
| Castor default | Ø125mm rubber | Ø125mm PU (2+2) | Ø150mm PU (2+2) | Ø200mm rubber (4 swivel) |
| Surface finish | EG / powder coat | EG / powder coat | Powder coat / stainless | HDG 60–90 μm |
| Cost index (vs A-frame) | 1.0× (baseline) | 1.1× | 1.4× | 1.6× |
| Empty volume reduction | -75% (nested) | -70% (nested) | -65% (folded) | -60% (folded) |
Roll Container vs. Pallet · Wire Mesh Container · Plastic Dolly · Hand Truck
Where the roll container wins, where alternatives win. Use this matrix to defend your spec internally — every row reflects what a real procurement manager asks.
| Criteria | Roll Container | Wood / Plastic Pallet | Wire Mesh Container | Plastic Dolly | Hand Truck |
|---|---|---|---|---|---|
| Operator mobility | ★★★★★ | ★★★★★ (forklift only) | ★★★★★ (forklift) | ★★★★★ | ★★★★★ |
| Load capacity | 400–500 kg | 1000–2000 kg | 500–2000 kg | 250 kg | 150–300 kg |
| Wheeled / mobile | Yes — 4 castors built in | No (needs forklift) | No (needs forklift) | Yes | Yes (2-wheel) |
| Stack-/nest-able empty | Nests 6 deep (-75%) | Stacks 20 high | Folds flat (-75%) | Nests 8 deep | No (rigid) |
| Visible inventory | ★★★★★ | ★★★★★ (loose) | ★★★★★ | ★★★★★ | ★★★★★ |
| Last-mile / in-store use | ★★★★★ | ★★★★★ | ★★★★★ | ★★★★★ | ★★★★★ |
| Service life (trips) | 200+ trips · 10 yrs | 50–80 trips · 3 yrs | 200+ trips · 10 yrs | 100 trips · 4 yrs | 500+ trips · 8 yrs |
| Cost per trip (10-yr fleet) | $0.55 | $1.20 | $0.45 | $0.80 | $0.60 |
| ISPM-15 / phyto issue | None (steel) | Wood: YES | None | None | None |
| Container loading (40HQ) | ~200 nested | ~600 (pallet) | ~240 folded | ~300 nested | ~150 |
| Best use case | Last-mile, retail, postal | Bulk dock-to-dock | Returnable B2B | Small parcel move | Single-item move |
⭐ AME Rack's Honest Verdict
Pick roll containers when you need wheeled last-mile delivery in a closed-loop pool — supermarket replenishment, postal/parcel sortation, pharmacy distribution, hotel housekeeping, e-com fulfillment van loading. Stay with pallets when you ship dock-to-dock in bulk volumes via forklift (≥1 tonne loads). Wire mesh containers beat roll cages for heavy B2B closed-loop logistics (1500–2000 kg parts). Plastic dollies win on light-duty small parcel moves under 250 kg. Hand trucks win on single-item vertical lifts (stairs, narrow doorways).
7-Stage Manufacturing & Quality Pipeline for Roll Containers
Every roll container leaves our Dongguan factory through a 7-stage production line built around mill-certified steel, robotic resistance welding, in-line mobility testing and full-container loading verification.
Steel Tube & Wire Inbound
Q235B steel tube (Ø19–25mm, wall 1.5–2.0mm) and cold-drawn wire (Ø4–5mm) sourced from Baosteel & Hesteel. Mill test certificate (yield strength, elongation, chemistry) with every coil; AME QC re-tests random samples per ISO 16120-2.
CNC Tube Bending & Cutting
CNC tube bender forms A-frame, Z-frame and 4-side frames to ±0.5mm tolerance. Laser cutter trims tube ends and prepares hinge sockets — all in one CNC line for repeatability.
Robotic Mesh Welding
Multi-head Panasonic robotic resistance welder welds 250+ wire-to-wire and wire-to-tube intersections per panel. Cross-weld penetration tested per ISO 17636. Output: 6 panels/minute at 100% weld coverage.
Base & Castor Mount Assembly
Steel plate base (3mm) or 18mm plywood mounted to base frame; castor brackets fitted with M10-grade 8.8 bolts. Each base load-tested with 1.5× rated payload before paint.
Surface Treatment
7-stage pre-treatment (degrease → rinse → phosphate → rinse → passivate → rinse → dry). Standard: electro-galvanized 8–15 μm. Pool/retail: powder coat 60–80 μm over zinc primer (any RAL colour). Outdoor: hot-dip galvanized 60–90 μm per ISO 1461.
Castor Fitting & Mobility Test
Ø125 / 150 / 200mm rubber, PU or nylon castors with sealed precision bearings. Mobility test: roll 50 m on concrete with 1.5× rated load — passes if no wobble, drift <5°, rolling resistance ≤2% of payload.
Final QC & Container Loading
100% inspection: dimensional check, weld coverage, paint adhesion (cross-hatch ASTM D3359), corrosion sample (salt spray ISO 9227). Nested or pre-folded for max density (~200 units/40HQ). Photo + video proof-of-loading sent before vessel sails.
How to Buy Roll Containers — A 6-Point Importer Checklist
Six things every importer, retail-pool operator, postal-sortation manager and 3PL fleet buyer should validate before placing a roll container PO. These are the questions our top customers always ask.
📋 1. Specification Confirmation
- External + internal dimensions (L × W × H, mm)
- Frame type: A-frame / Z-frame / 4-sided / 2-sided
- Tube diameter (Ø19–25mm) and wire diameter (Ø4–5mm)
- Load capacity AND number of shelves (with shelf pitch)
- Castor: diameter, material (rubber/PU/nylon), swivel/fixed mix
- Surface finish in μm (EG / HDG / powder coat RAL colour)
🛡️ 2. Compliance & Test Reports
- EN 12674 European roll container compliance
- NEN-EN 12674-3 for Dutch / TNT postal roll cages
- BS EN 12674-4 for UK Royal Mail York container
- VDA 4500 for German automotive roll cage
- ISO 1461 HDG coating certificate (if outdoor)
- Salt spray ISO 9227 test report (corrosion warranty)
📐 3. Sample Order Strategy
- Request 2–4 sample units before bulk PO (sea or air)
- Roll 50m on YOUR floor with full rated load
- Validate fold/nest cycle ≥ 100× without backlash
- Test castor brake hold on 10° ramp
- Verify paint adhesion (cross-hatch ASTM D3359 tape test)
💰 4. Payment & Incoterms
- T/T 30% deposit + 70% before B/L (standard)
- L/C at sight accepted for orders ≥ USD 30,000
- Incoterms: FOB Shenzhen (default), CIF, DDP available
- OA 30–60 days for repeat customers after 3 successful POs
- Western Union accepted for samples ≤ USD 2,000
🚢 5. Logistics & Container Loading
- 40HQ holds ~200 nested A-frame / ~180 Z-frame / ~240 folded 4-side
- Nested or pre-folded packing for max density
- IPPC ISPM-15 wood pallets (or paperboard sleeves)
- Container loading photo + video sent before sailing
- Lead time: 15 days EG, 20 days powder coat, 25 days HDG
🤝 6. After-Sales & Warranty
- 3-year structural warranty (5 years on HDG outdoor)
- 1-year castor wheel warranty (sealed-bearing variant)
- Free replacement parts in 1st year for manufacturing defects
- Repair kit (spare castors + hinge pins) shipped with bulk order
- Dedicated account manager (WhatsApp / Email / WeChat)
Everything Importers, Retailers, Postal Ops & Pool Operators Ask About Roll Containers
Real questions from procurement managers, importers, retail-pool operators and postal-fleet buyers during 24 months of roll cage export quotes. Bookmark this — it answers ~95% of pre-order objections.
Q01. What is the typical lead time for roll containers?
15 days for standard electro-galvanized A-frame / Z-frame units; 20 days for powder-coat RAL colour match; 25 days for HDG outdoor variants. Express 10-day production possible for repeat customers with stock components.
Q02. What is the MOQ (Minimum Order Quantity)?
Standard MOQ is 10 units per configuration. For first orders we accept 5 units mixed to let distributors trial multiple variants. Sample 2–4 units shipped by air for paid evaluation; large pool fleets (1,000+ units) get a 1-pallet trial batch by sea.
Q03. How many roll containers fit in a 40HQ container?
~200 A-frame (nested 6 deep) / ~180 Z-frame (nested 5 deep) / ~240 4-sided foldable (folded flat) / ~200 HDG outdoor. Always order nested or folded — saves 60–75% freight vs assembled. Photo + video proof-of-loading sent before vessel sails.
Q04. What is the difference between A-frame, Z-frame and 4-sided roll cages?
A-frame = 2 side panels + 1 back (open front), nests 6 deep, supermarket standard. Z-frame = NEN-EN 12674-3 postal spec, 3-sided, nests 5 deep. 4-sided = full cage with split-gate, foldable, lockable for pharma/electronics.
Q05. Which castor size and material should I choose?
Ø125mm rubber for indoor smooth floor and light load. Ø150mm PU for indoor warehouse, 400 kg load, low-noise. Ø200mm rubber for outdoor / rough surface / ramp use. PU is quieter and floor-mark-free; rubber survives outdoor abuse better.
Q06. What is the load capacity?
Standard is 400 kg (A-frame) or 500 kg (Z-frame / 4-sided). Heavy-duty 600–750 kg variants available with Ø25mm tube + Ø200mm castors. For tall stacks (1700mm+) effective payload is ~10% lower due to centre-of-gravity.
Q07. Are AME Rack roll containers CHEP / DPD / Royal Mail pool compatible?
Yes — our Z-frame meets NEN-EN 12674-3 (TNT/DPD/Dutch post). 4-sided variant meets BS EN 12674-4 (Royal Mail York container). A-frame is CHEP-pool compatible. We have shipped fleet units to UK/EU pool operators since 2015.
Q08. What is the corrosion warranty?
EG indoor: 1 year. HDG outdoor: 5 years (covered by ISO 1461 spec). Powder coat over zinc: 3 years. 304 stainless: 10 years. Warranty covers corrosion-through; excludes chemical exposure outside the rated environment.
Q09. Can the roll container be branded with our corporate colour?
Yes — minimum 50 units per RAL colour. We apply RAL-matched powder coat 60–80 μm over zinc primer (red / green / blue / yellow / corporate colour). Silkscreen or sticker logo also available. Used by ~50 retail-pool and postal-fleet brands globally.
Q10. Do you offer castor brakes?
Yes — foot-operated brake on 2 of the 4 castors (or 4 of 4 for premium fleet). Critical for ramp loading, stationary picking and incline parking. Brake spec adds USD 4–8 per unit FOB Shenzhen.
Q11. Can roll containers handle cold storage / freezer use?
Yes — order the HDG variant with sealed bearing castors rated -25°C operating range. Plus low-temp impact steel (Q345B) for the frame. Operating range -25°C to +60°C without bearing or paint failure.
Q12. What standards do AME Rack roll containers comply with?
EN 12674 (European roll container), NEN-EN 12674-3 (Dutch postal/TNT), BS EN 12674-4 (UK Royal Mail), VDA 4500 (German auto), ISO 1461 (HDG coating), ISO 9001 / 14001 factory certs. Stamped FEA load test report issued free.
Q13. How does AME Rack price compare to local European suppliers?
Roll containers are weight-driven products — our FOB Shenzhen pricing typically lands at 40–60% of EU/UK manufacturer pricing, even after shipping and 5–8% import duty. The economics work best for 1×40HQ (~200 units) or larger orders.
Q14. What is the typical service life of a roll container?
10 years / 200+ trip cycles for the steel frame; 3–5 years for castor wheels (replaceable with standard M10 bolt-on castor). Plywood base bottoms last 5–7 years and can be re-bottomed. Total fleet lifetime cost is typically the lowest of any returnable container format.
Q15. What payment terms do you accept?
Standard: 30% T/T deposit + 70% before B/L. L/C at sight for orders ≥ USD 30,000. Western Union for samples ≤ USD 2,000. After 3 successful POs, repeat customers can negotiate OA 30–60 days subject to credit check.
Get a Roll Container Quote in 4 Hours — From the Factory That Ships 65+ Countries
Send your spec (frame type / dimensions / load / castor / finish / quantity / destination port) — we reply within 4 hours during Shenzhen business day with FOB pricing, container loading plan and lead time. Free engineering review. Free load-test report. Free packing list.
📩 3 Ways to Start the Conversation
📧 Lily@amerack.com
💬 WhatsApp / Phone: +86 188 2453 7792
🏭 Dongguan, Guangdong, China · MON–SAT 09:00–18:00 (GMT+8)
