Drum & IBC Racking โ Built for Spill Containment, Heavy Loads & Hazardous Material Compliance
A purpose-engineered racking architecture for chemical plants, lubricant distributors, petrochemical depots and industrial cleaning warehouses: heavy-duty selective for IBC totes and 200L steel drums, drive-in for bulk lubricant pallets, integrated spill containment trays, drum-cradle attachments and multi-tier mezzanines for small-pack chemicals โ designed for UN / ADR / DOT / IMDG hazmat compliance.
Drum & Chemical Racking, Summed Up in 10 Quick Facts
- Best rack mix: Heavy-duty selective + Drive-in + Mezzanine + Spill trays โ the four-pillar hazmat layout.
- IBC weight class: Standard 1000L IBC totes weigh 1,100โ1,500 kg when full; racks rated to 1,500โ2,000 kg per pair.
- 200L drum capacity: Standard pallet rack holds 4 ร 200L steel drums per beam pair at 200โ250 kg each.
- Spill containment: EPA / OSHA require 110% of largest container OR 10% of total volume, whichever is greater โ built into our integrated steel sumps.
- Hazmat compliance: Designs friendly to UN ยท ADR ยท DOT 49 CFR ยท IMDG ยท GHS classification rules.
- Segregation rules: Acids / bases / oxidisers / flammables physically separated per NFPA 30 + OSHA 1910.106 distance rules.
- Heights supported: Heavy-duty selective 6โ8m for IBC stacking ยท Mezzanine 2โ3 tiers for small-pack chemicals.
- Coating spec: HDG + chemical-resistant epoxy for acid splash zones; standard HDG for lubricant warehouses.
- Forklift safe: Wider 3.0โ3.5m aisles + reinforced column guards prevent forklift impact on drum stacks.
- AME Rack lead time: Standard 25 days FOB Shenzhen; spill-tray welded accessories add 5โ7 days.
If You Run a Chemical or Lubricant DC, You've Lived These 6 Compliance Failures
We've designed racking for petrochemical depots, lubricant distributors and industrial chemical warehouses across 65 countries. Six failure patterns come up in nearly every kick-off โ each is a regulatory red flag.
"EPA fined us $50K โ no secondary containment"
EPA, OSHA and local environmental authorities require 110% spill containment for hazardous liquids. Open pallet racks have zero containment โ a single ruptured IBC triggers an immediate violation.
"Beam bent under fully loaded 1,500 kg IBC"
Standard 1,000 kg pallet beams cannot safely hold full 1000L IBC totes (1,100โ1,500 kg). Beam deflection becomes permanent and the rack fails its annual structural audit.
"Acids stored next to oxidisers โ fire marshal shutdown"
NFPA 30, OSHA 1910.106 and local fire codes require physical segregation of incompatible chemicals (acids vs bases vs oxidisers vs flammables). Adjacent storage triggers immediate shutdown orders.
"200L drums rolled off the beam during forklift impact"
200L steel drums stored without cradles roll laterally when forklifts impact the rack โ drums fall, leak and trigger evacuations.
"HDG coating dissolved under sulphuric acid splash"
Standard hot-dip galvanised coating survives lubricants and neutral chemicals but corrodes under acid splash within 6โ12 months. Rack collapse risk follows.
"EPA Tier II inventory check failed โ no rack-level traceability"
EPA Tier II reporting + SDS / MSDS audits demand rack-level tracking of every hazardous chemical above threshold. Untraceable inventory triggers escalating fines.
8 Racking Systems Built for Drums, IBCs & Chemicals
A chemical or lubricant warehouse rarely uses one rack type. Below are the eight configurations we deploy in petrochemical depots, oil distributor DCs, industrial cleaning warehouses and chemical processing plants โ combined to deliver hazmat compliance, spill containment and heavy-load support.

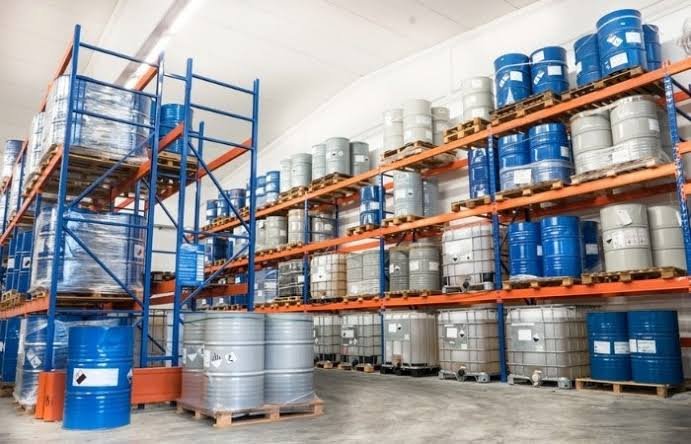

IBC Heavy-Duty Selective Racking
Heavy-duty selective with reinforced 3.0mm uprights and 1,500โ2,000 kg beams โ purpose-rated for 1000L IBC totes (1,100โ1,500 kg loaded). Integrated welded sump tray option for 110% spill containment.
Drive-In Racking (Bulk Lubricant)
High-density LIFO for slow-moving single-SKU bulk lubricant pallets โ saves up to 60% floor space vs selective. Best for distributor depots with palletised oil and grease stock.
Double-Deep Racking
Two pallets deep with reach-truck access โ 35% denser than selective while keeping fast access. Pragmatic mid-range for chemical DCs handling paired SKU drum pallets.

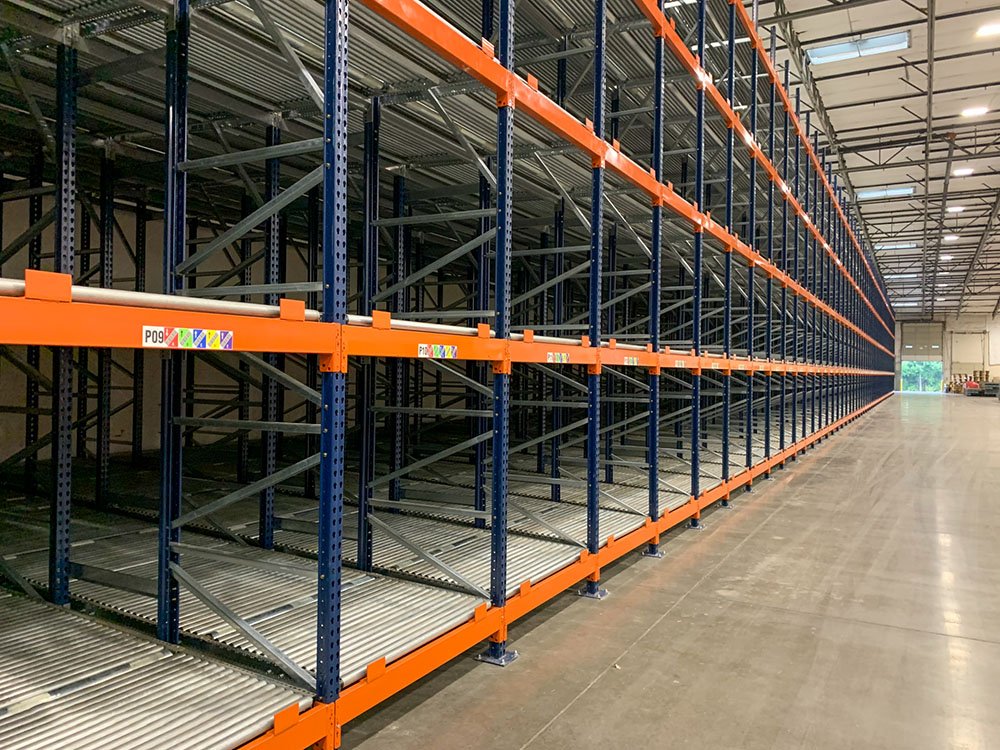

Pallet Flow Rack (Lubricant FIFO)
Inclined gravity-roller lanes โ load at back, pick at front. Pure FIFO for dated lubricant SKUs and shelf-life-sensitive chemicals (catalysts, coatings, additives).
Multi-Layer Mezzanine
2- to 3-tier bolted mezzanines for small-pack chemicals (1Lโ25L containers, sample stock, lab chemicals). Integrated fire-rated decking and sprinkler clearance for NFPA compliance.
Stack Racks (Stackable)
Free-standing collapsible drum supports โ perfect for inbound staging buffer or temporary site storage during production turnarounds. Fold flat when not in use, no floor anchoring required.
Chemical Storage Builds Passing EPA & OSHA Audits
Three recent drum and chemical storage installations where AME Rack designed the full racking architecture. Names, scales and operating duration available with signed buyer feedback on request.

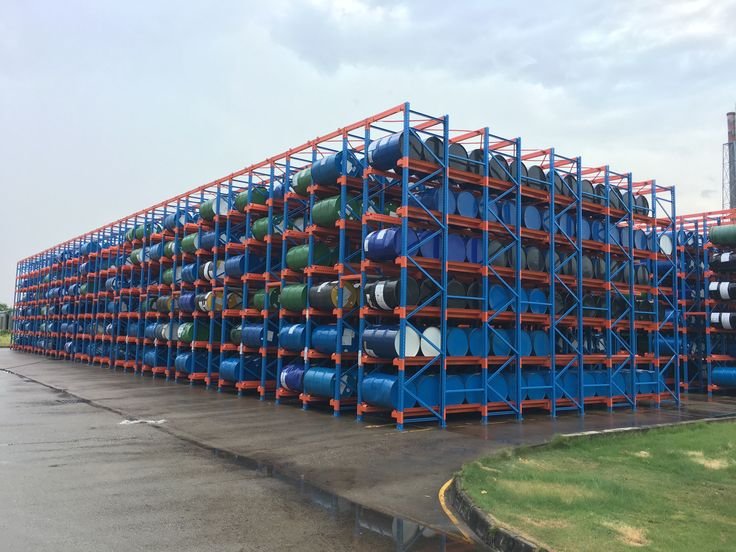

Lubricant DC Racking for ExxonMobil Programme
Heavy-duty selective + drive-in racking system for an ExxonMobil lubricant programme in North America. Includes IBC-rated beams, drum cradle attachments and integrated spill containment trays across all hazmat zones. Continuous operation since 2018.

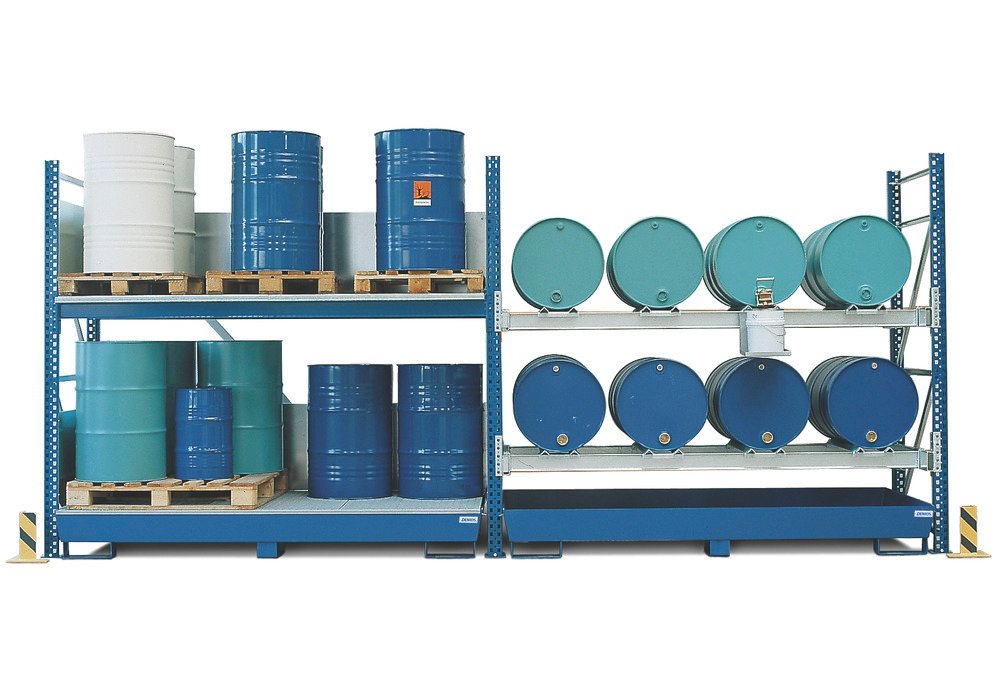

IBC + Spill Tray System for EU Chemical Distributor
4,200 IBC positions of heavy-duty selective racking with welded steel sump trays for a German chemical distributor. ADR-compliant zoned segregation walls separate acids, bases and oxidisers. Passed first EPA-equivalent audit on day one.

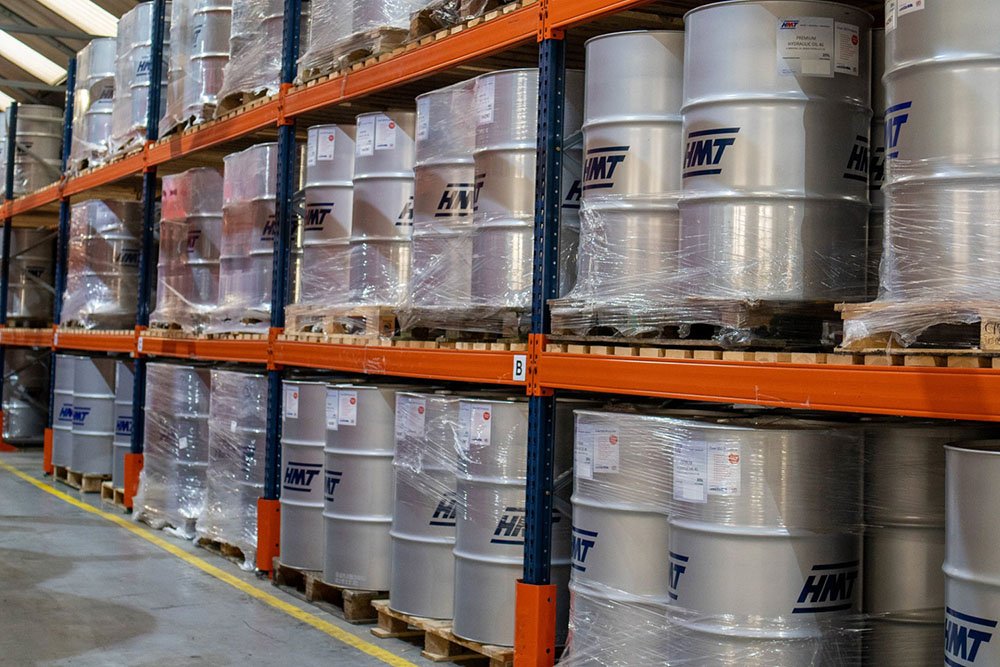

200L Drum Depot Racking for MENA Petrochemical
Drum-cradle selective racking + 2-tier mezzanine for a Gulf petrochemical lubricant depot handling 200L drums and small-pack additives. Forklift impact incidents dropped to zero with reinforced column guards and wider 3.5m aisles.
Drum & Chemical Racking Engineering Specs
The parameters EHS managers, hazmat compliance auditors and chemical-industry procurement teams ask for first. Full datasheets, FEA reports and hazmat compliance packs issued free with every project.
| Parameter | IBC Selective | Drum Selective | Drive-In | Double-Deep | Mezzanine |
|---|---|---|---|---|---|
| Container Type | 1000L IBC totes | 200L steel drums | Palletised lubricant | Paired chemical pallets | 1Lโ25L containers |
| Capacity per Level | 1 IBC (1,500 kg) | 4 drums (1,000 kg) | 1 pallet (1,500 kg) | 2 pallets (1,800 kg) | 500โ800 kg/ใก |
| Beam Capacity | 1,500โ2,000 kg/pair | 1,000โ1,500 kg/pair | 1,000โ1,500 kg/pair | 1,000โ1,800 kg/pair | n/a |
| Upright Gauge | 2.5โ3.0 mm | 2.0โ2.5 mm | 2.5โ3.0 mm | 2.5โ3.0 mm | 3.0โ4.0 mm |
| Standard Height | 4โ6 m (3 levels) | 4โ6 m (4 levels) | 5โ8 m | 5โ8 m | 2โ3 tiers |
| Aisle Width | 3.0โ3.5 m | 3.0โ3.5 m | Shared | 3.0โ3.5 m | n/a |
| Spill Containment | 110% sump tray | 110% sump tray | Optional sump | 110% sump tray | Drip pans |
| Coating Spec | HDG + epoxy | HDG + epoxy | HDG | HDG | HDG / powder coat |
| Steel Grade | Q345B | Q345B | Q345B | Q345B | Q345B + H-beam |
| Hazmat Compliance | UN ยท ADR ยท DOT 49 CFR ยท IMDG ยท GHS ยท NFPA 30 ยท OSHA 1910.106 friendly | ||||
| Compliance Standards | EN 15512 ยท AS 4084 ยท RMI MH16 ยท FEM 10.2.02 | ||||
| Typical Lead Time | 25 days | 20โ25 days | 25 days | 20โ25 days | 25โ35 days |
How to Choose: When A vs B for Your Chemical DC
Six trade-off decisions specific to drum and chemical storage. Use these as the first-pass filter before requesting a detailed layout from our hazmat-trained engineering desk.
IBC Heavy-Duty vs Standard Selective?
IBC Heavy-Duty Selective mandatory for 1000L IBC totes โ full loaded weight (1,100โ1,500 kg) exceeds standard 1,000 kg beam rating. Beam deflection on standard racks becomes permanent within 6 months. Standard Selective only acceptable for empty IBCs or palletised small-pack chemicals < 1,000 kg.
Spill Tray vs Floor Containment Berm?
Integrated Spill Tray at rack level catches leaks before they reach the floor โ meets 110% rule for the individual IBC / drum stored above. Floor Containment Berm required additionally when total volume exceeds 10% of all containers; many sites use both as defence in depth.
Drum Cradle vs Plain Beam for 200L Drums?
Drum Cradle mandatory โ plain pallet beams allow lateral drum roll-off during forklift impact. Cradle attachments lock 4 drums per beam pair and prevent the routine roll-off incidents that trigger evacuations and reportable spills.
HDG vs HDG + Epoxy Coating?
HDG alone survives lubricants, neutral chemicals and outdoor weather for 15+ years. HDG + chemical-resistant epoxy topcoat mandatory for acid splash zones (sulphuric, hydrochloric, nitric) โ without it, HDG corrodes within 6โ12 months and the rack fails its structural audit.
How to design for NFPA 30 / ADR segregation?
Four engineering tools: (1) zoned layout with physical distance per NFPA 30 / OSHA 1910.106; (2) mesh-cage segregation walls between incompatible classes (acids vs bases vs oxidisers vs flammables); (3) colour-coded hazmat signage at every bay; (4) fire-rated mezzanine decking per local fire code.
How to design for EPA Tier II / SDS audit traceability?
Three engineering tools: (1) bay-level RFID tags linked to WMS for every hazardous chemical inventory point; (2) SDS / MSDS digital linkage โ scan bay tag, retrieve current SDS; (3) colour-coded compatibility zoning mapped to UN / ADR / DOT / IMDG classification. Eliminates the manual audit failures that destroy hazmat operating permits.
Side-by-Side: Which Rack Wins for Your Chemical Container Mix
Six rack types ร eight chemical-storage criteria โ the shortcut most EHS managers and chemical-industry procurement directors wish they had before issuing the RFP. Use to narrow rack mix per IBC / drum / small-pack profile.
| Selection Criteria | IBC Selective | Drum Selective | Drive-In | Double-Deep | Pallet Flow | Mezzanine |
|---|---|---|---|---|---|---|
| 1000L IBC Suitability | โ โ โ โ โ | โ โ | โ โ โ | โ โ โ โ | โ โ โ | โ |
| 200L Drum Suitability | โ โ โ | โ โ โ โ โ | โ โ โ โ | โ โ โ โ | โ โ โ | โ โ |
| Small-Pack (1Lโ25L) | โ โ | โ โ | โ โ | โ โ | โ โ โ | โ โ โ โ โ |
| Spill Containment Built-In | โ โ โ โ โ | โ โ โ โ โ | โ โ โ | โ โ โ โ | โ โ โ | โ โ โ |
| Hazmat Segregation Friendly | โ โ โ โ | โ โ โ โ | โ โ | โ โ โ | โ โ โ | โ โ โ โ โ |
| Storage Density | โ โ | โ โ โ | โ โ โ โ | โ โ โ | โ โ โ โ | โ โ โ โ โ |
| Capex (per container) | $$ Mid | $ Low | $$ Mid | $$ Mid | $$$ High | $$ Mid |
| Best Match Operation | IBC chemical DC | Lubricant depot | Bulk lubricant | Mid-mix chemical | Dated chemicals | Lab / small-pack |
Drum & Chemical Racking Buyer's FAQ
The 15 questions chemical-industry EHS managers, petrochemical depot engineers and hazmat compliance teams ask before issuing the first PO.
01What is the best racking system for an oil drum and chemical warehouse?
02How do you provide secondary spill containment per EPA and OSHA rules?
03What weight rating is required for racking storing 1000L IBC totes?
04How are 200L steel drums protected from roll-off?
05Are AME Rack systems compliant with NFPA 30 and ADR hazmat rules?
06What coating handles aggressive acid splash zones?
07How are drum and chemical inventories traced for EPA Tier II reporting?
08Can mezzanines store small-pack chemicals (1Lโ25L) safely?
09How do you separate incompatible chemicals (acids vs bases vs oxidisers)?
10What is the warranty on chemical warehouse racking?
11What is the typical lead time for drum and chemical racking?
12Do you ship chemical racking to North America, Europe and the Middle East?
13What payment terms work for chemical and petrochemical buyers?
14How are drum / IBC racks audited for structural integrity over time?
15How does AME Rack pricing compare for chemical warehouse projects?
Ready to Design the Right Rack Mix for Your Chemical Warehouse?
Send your container profile (IBC / 200L drum / small-pack), hazmat class breakdown (acid / base / oxidiser / flammable), building dimensions and EPA reporting thresholds โ receive a full 3D layout, FEA report, hazmat compliance pack and FOB quotation within 4 working hours. Zero commitment.
