E-Commerce Warehouse Racking — Built for Fast-Pick, High-SKU, Peak-Season Reality
A complete racking architecture for online retailers and 3PL fulfilment centres: combine selective pallet, VNA, push-back, radio shuttle and multi-tier mezzanine into one cohesive layout — engineered for 100K+ SKUs, 10s-of-thousands of orders per day, and the brutal peak of Black Friday.
E-Commerce Warehouse Racking, Summed Up in 10 Quick Facts
- Best rack types: Selective pallet + VNA + Mezzanine are the 3 most-deployed in online fulfilment.
- Typical density gain: +35%–60% over standard wide-aisle layouts using VNA and double-deep.
- Pick speed boost: 2.5×–4× with mezzanine pick modules and gravity flow racks.
- Aisle width: Selective 2.8m, VNA 1.6m, drive-in shared.
- SKU velocity sweet spot: A-SKUs → flow rack; B-SKUs → selective; C-SKUs → drive-in / push-back.
- Peak-season ready: Modular mezzanine adds +50% floor area in 21 days.
- ASRS payback: Mini-load AS/RS pays back in 3–5 years for >30,000 daily picks.
- Heights supported: 6m standard, 12m+ for high-bay; mezzanine 2–4 tiers.
- Compliance: EN 15512 / AS 4084 / RMI MH16 — auditor-ready FEA reports issued free.
- AME Rack lead time: Standard 20 days FOB Shenzhen; express 7 days available.
If You Run an E-Commerce DC, You've Lived These 6 Headaches
We've designed racking for online retailers and 3PL operators across 65 countries — these are the issues that come up in every kick-off call. Each one has a proven storage-engineering fix.
"Black Friday breaks our floor plan every year"
Volume triples for 4 weeks then collapses. Renting overflow space at $25/sqft burns the margin off every order.
"Catalogue doubled, pickers can't keep up"
100K+ SKUs across 12 categories means a picker walks 14 miles a shift just to fill 80 cartons.
"Our racks stop at 4m, building goes to 12m"
Cubic capacity wasted because the existing wide-aisle layout can't use the height.
"Pick face empty, pallets stuck in reserve"
Pickers stand idle waiting for replenishment because selective racks can't separate pick face from reserve.
"Shuttle racking fails after one cold-season cycle"
Off-spec racking from a trader cracks under repeated impact in -5°C peak-season fulfilment.
"We outgrew our layout in 18 months"
Welded racking means every reconfiguration is a tear-down. Growing brands need modular.
9 Racking Systems That Work in Real E-Commerce Fulfilment Centres
An online retail DC rarely uses just one rack type. Below are the nine systems we deploy — usually in combination — to balance pick speed, storage density and reconfiguration flexibility. Tap any card to see specs.
Selective Pallet Racking
Direct access to every pallet — the backbone of most e-commerce DCs. Best for B-velocity SKUs and mixed-pallet picking.

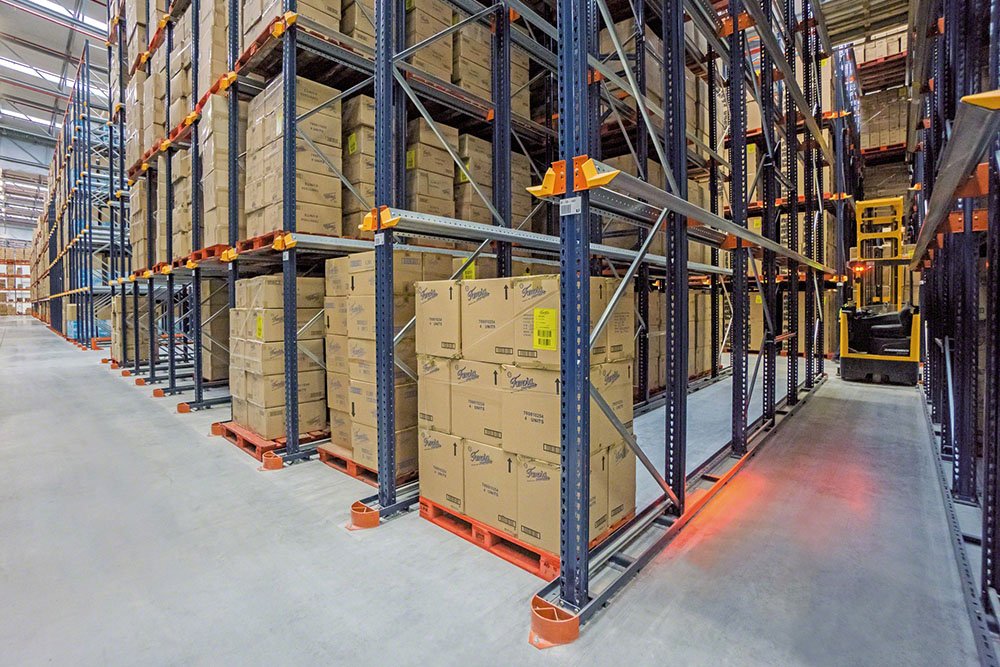

Drive-In Racking
High-density LIFO storage for single-SKU pallets — saves up to 60% floor space vs selective. Best for slow-moving C-SKUs and seasonal stock.
Radio Shuttle Racking
Semi-automated deep-lane storage with battery-powered shuttle cars. Combines drive-in density with FIFO/LIFO flexibility and 30+ pallet/h throughput.
Double-Deep Racking
Two pallets deep with reach truck access — 35% denser than selective while preserving fast access. The pragmatic choice for 3PL e-commerce hubs.
Pallet Flow Rack
Inclined gravity-roller lanes — load at the back, pick at the front. Pure FIFO, eliminates pick-face replenishment delays. Perfect for A-SKUs with date sensitivity.
VNA (Very Narrow Aisle)
1.6m aisles with swing-mast trucks unlock 12m+ heights. The right pick when you need to maximise cube on a fixed footprint.

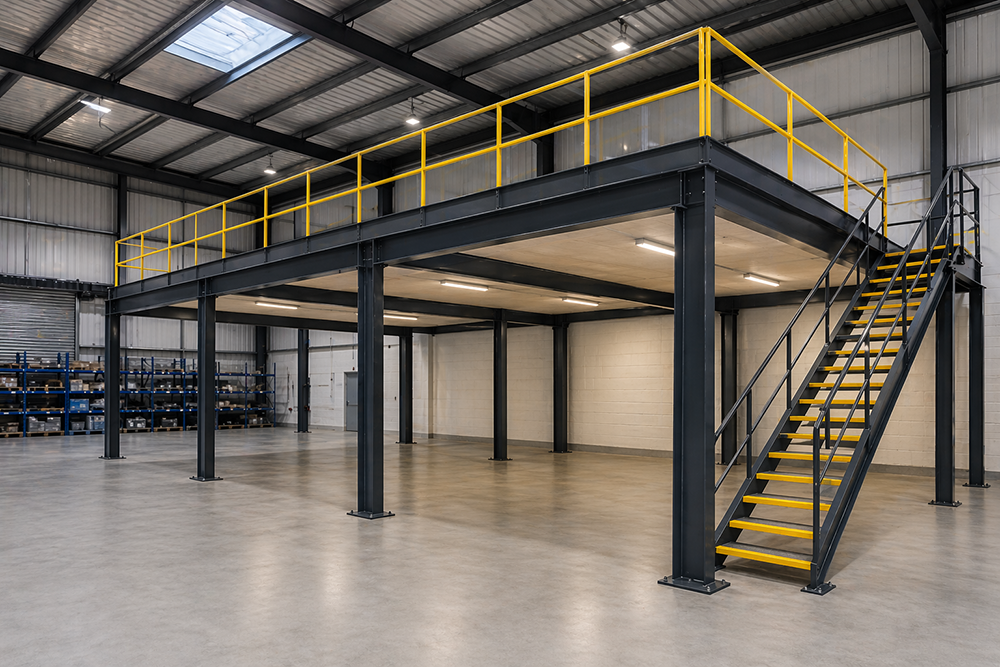

Steel Mezzanine Floor
Bolted multi-tier platforms double or triple your usable floor area — pick modules, packing benches, returns stations all stack vertically.

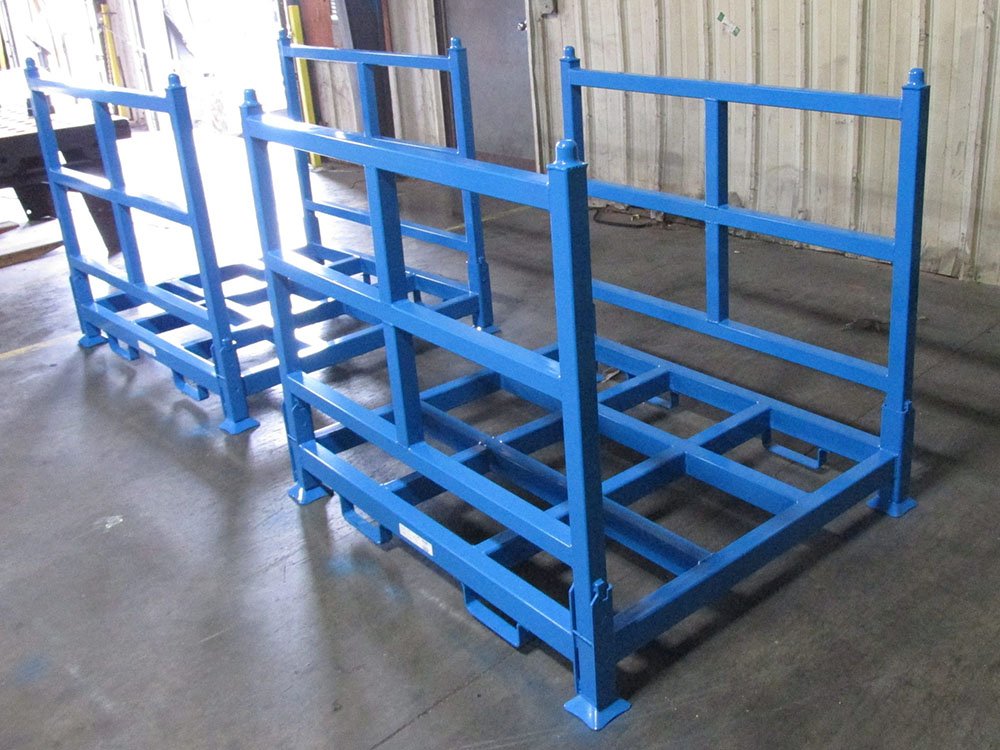

Stack Racks (Stackable)
Free-standing collapsible pallet supports — perfect for peak-season overflow, then folded flat off-season. No floor anchoring required.
AS/RS Mini-Load System
Stacker cranes + WMS — 99.99% pick accuracy, 24/7 unattended operation. The end-state for e-commerce DCs processing 30K+ daily lines.
E-Commerce Fulfilment Builds Live and Picking Today
Three recent installations where AME Rack designed the full racking stack for online retailers and 3PL operators — each with the buyer's name, project scale and signed feedback available on request.
VNA Pallet Racking for SHEIN Apparel Fulfilment
Very narrow aisle racking with wire-guidance lanes for swing-mast trucks, integrated with a 3-tier pick mezzanine. Designed for 5K+ apparel SKUs and peak-season throughput burst.

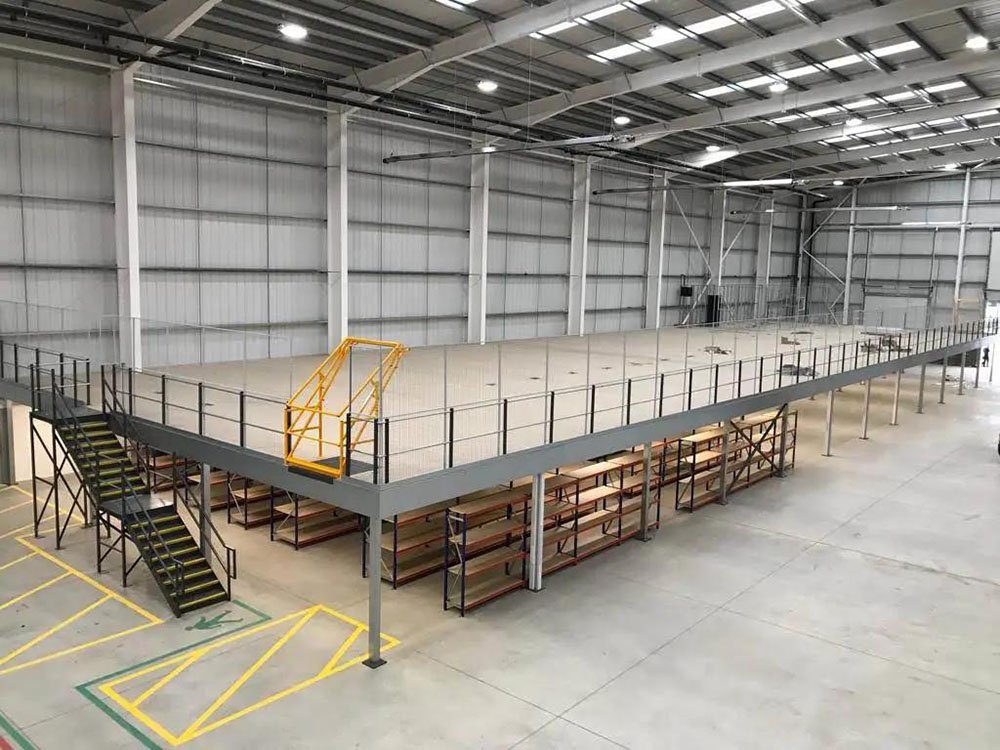

2-Tier Pick Mezzanine for European 3PL Hub
5,200㎡ multi-tier mezzanine with integrated conveyor drop zones, packing benches and returns processing area. Tripled usable floor on the same footprint without expanding the lease.

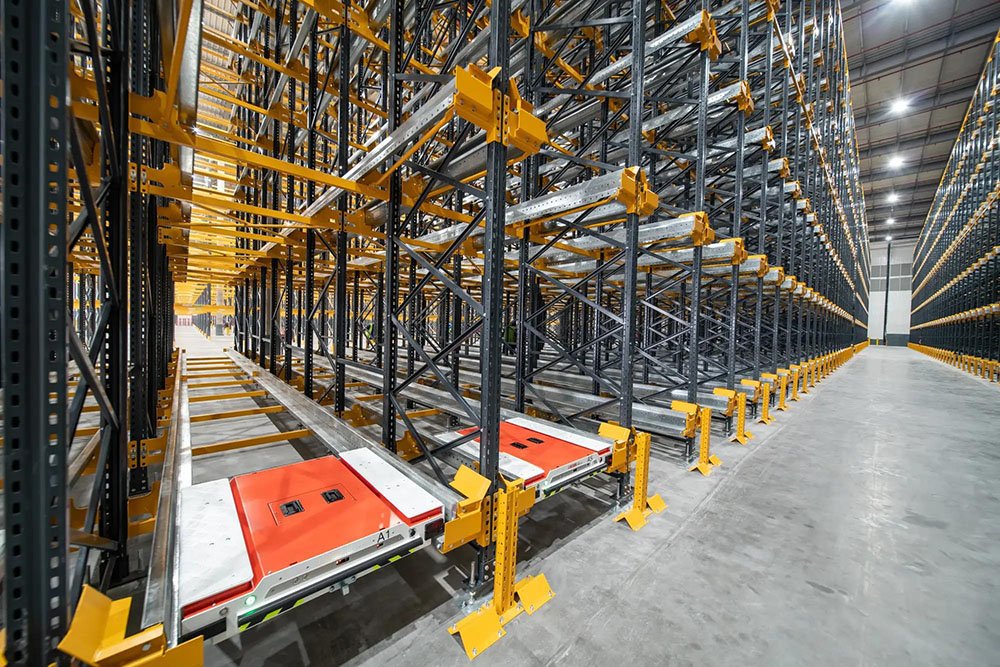

Radio Shuttle System for US DTC Beauty Brand
6-level radio shuttle racking with WMS-integrated charging stations, replacing legacy drive-in with FIFO automation. Cut replenishment cycle time by 62% during peak.
E-Commerce Racking Engineering Specs at a Glance
The technical parameters auditors, project consultants and engineering procurement teams ask for first. Full datasheets and FEA reports available on request — formatted to your local building authority.
| Parameter | Selective | VNA | Pallet Flow | Radio Shuttle | Mezzanine |
|---|---|---|---|---|---|
| Standard Height | 3–12 m | 10–16 m | 4–10 m | 8–14 m | 2–4 tiers |
| Aisle Width | 2.8–3.5 m | 1.5–1.8 m | 2.5–3.0 m | Shared | n/a |
| Pallet Capacity | 1,000–2,500 kg | 1,000–2,000 kg | 800–1,500 kg | 1,000–1,500 kg | 500 kg/㎡ |
| Density Gain vs Selective | Baseline | +45% | +50% FIFO | +80% | 2–4× floor |
| Steel Grade | Q235B / Q345B | Q345B | Q345B | Q345B | Q345B + H-beam |
| Upright Gauge | 1.8–2.5 mm | 2.0–3.0 mm | 2.0–2.5 mm | 2.0–3.0 mm | 3.0–4.0 mm |
| Coating DFT | 60–80 μm | 60–100 μm | 60–80 μm | 80–100 μm | 80–120 μm |
| Salt-Spray Test | 1,000h | 1,000h | 1,000h | 1,000h | 1,000h |
| Compliance | EN 15512 · AS 4084 · RMI MH16 · FEM 10.2.02 | ||||
| Seismic Zone Rated | Zone I–IV (FEA verified) | ||||
| Forklift Compatible | Counterbalance, reach | Swing-mast, turret | Counterbalance | Shuttle car | Pallet jack, lift |
| Typical Lead Time | 20 days | 25 days | 25 days | 30–35 days | 25–35 days |
How to Choose: When A vs B for Your E-Commerce DC
Six trade-off decisions that come up in every e-commerce racking project. Use these as the first-pass filter before requesting a detailed layout from our engineering team.
Selective Racking vs VNA Racking?
Pick VNA when building height > 8m AND throughput is steady — pays back the swing-mast truck investment in 18–30 months. Pick Selective when SKU mix changes monthly or building height ≤ 6m.
Drive-In vs Radio Shuttle?
Drive-In wins on capex for slow-moving C-SKUs with one or two pallets in/out per day. Radio Shuttle wins when throughput exceeds 8 pallets/h or you need FIFO — saves labour cost in 2–4 years.
Mezzanine vs Building Expansion?
Mezzanine when you need +50% to +200% floor area on existing lease — installed in 21–35 days, capex 5–10× cheaper than new construction. Building expansion only when ceiling is < 5m or load > 600kg/㎡.
Pallet Flow vs Push-Back?
Pallet Flow is FIFO — date-sensitive A-SKUs (cosmetics, food, pharma). Push-Back is LIFO — non-date-sensitive C-SKUs where you want density without forklifts entering the rack.
When does AS/RS pay back?
Mini-load AS/RS pays back in 3–5 years when daily picks exceed 30,000 lines AND labour cost > $20/h. Below that threshold, semi-auto solutions (radio shuttle + pick-to-light) deliver better ROI.
Hot-Dip Galvanised or Powder Coat?
Powder coat for indoor DC at >0°C, normal humidity — cheaper, RAL-customisable. HDG mandatory for cold storage < 0°C, outdoor yards, or coastal humidity > 70% — 15-year corrosion warranty.
Side-By-Side: Which Rack Type Wins for Your Use Case
One table, six rack types, eight selection criteria — the cross-comparison most procurement managers wish they had before issuing the RFP. Use as a shortcut to narrow down options before talking to engineering.
| Selection Criteria | Selective | Drive-In | VNA | Pallet Flow | Radio Shuttle | Mezzanine |
|---|---|---|---|---|---|---|
| Storage Density | ★★☆ | ★★★★ | ★★★★ | ★★★★ | ★★★★★ | ★★★★★ |
| Pick Speed (A-SKU) | ★★★★ | ★★ | ★★★★ | ★★★★★ | ★★★★ | ★★★★ |
| SKU Flexibility | ★★★★★ | ★★ | ★★★★ | ★★★ | ★★★★ | ★★★★ |
| Capex (per pallet) | $ Low | $$ Mid | $$ Mid | $$$ High | $$$$ Very High | $$ Mid |
| Installation Time | 7–10 days | 7–14 days | 14–21 days | 14–21 days | 21–30 days | 21–35 days |
| Forklift Required | Standard reach | Counterbalance | Swing-mast (special) | Standard reach | Shuttle car | Pallet jack |
| Peak-Season Scalable | ★★★ | ★★ | ★★ | ★★ | ★★★ | ★★★★★ |
| Best Match SKU Type | Mixed B | Slow C | Tall building, all | Fast A, date-sensitive | Fast A/B FMCG | Pick modules |
E-Commerce Racking Buyer's FAQ
The 15 questions procurement managers, project consultants and warehouse directors ask before issuing the first PO.
01What is the best racking system for an e-commerce warehouse?
02How much storage density gain can VNA racking deliver vs selective?
03What is the lead time for an e-commerce racking project from AME Rack?
04Can racking handle peak season volume burst like Black Friday?
05What pallet weight capacity is standard for e-commerce racking?
06Does AME Rack provide FEA structural calculation reports?
07Is mezzanine flooring compliant with international fire code?
08How does pallet flow racking achieve FIFO inventory rotation?
09Can radio shuttle racking integrate with our WMS?
10What is the warranty on e-commerce racking from AME Rack?
11How is AS/RS payback calculated for e-commerce fulfilment?
12Do you ship e-commerce racking to North America and Europe?
13What is the minimum order quantity for VNA racking?
14Can we visit your factory or audit production remotely?
15What payment terms work for first-time e-commerce buyers?
Ready to Design the Right Rack Mix for Your Fulfilment Centre?
Send your building dimensions, pallet specs and daily order target — receive a full 3D layout, FEA structural report and FOB quotation within 4 working hours. Zero commitment, zero deposit.
