3PL Warehouse Racking — Engineered for Multi-Client Flexibility & SLA-Grade Throughput
A modular racking architecture built for third-party logistics operators and contract warehousing providers: configurable selective pallet, double-deep, VNA, push-back, shuttle and multi-tier mezzanine systems that let you onboard a new client in 21 days, hit SLA pick rates and reconfigure when the contract ends.
3PL Warehouse Racking, Summed Up in 10 Quick Facts
- Best rack mix for 3PL: Selective + Double-Deep + Multi-Tier Mezzanine — covers 80% of contract types.
- Client onboarding speed: 21 days from PO to first pallet IN with bolted modular racking.
- Reconfiguration cost: 5–8% of original capex vs ~30% for welded systems.
- Density gain: +35%–45% with double-deep or VNA vs standard wide-aisle selective.
- SLA-grade pick accuracy: Slotted layouts achieve 99.5%+ pick accuracy with proper labelling and pick paths.
- Multi-client separation: Mesh dividers, painted zone codes, RFID anchor points isolate inventory by contract.
- Mezzanine ROI: Adds +100–200% floor area for 5–10× less than warehouse expansion.
- Heights supported: Selective 8m · Double-deep 10m · VNA 14m · Mezzanine 2–4 tiers.
- Compliance: EN 15512 · AS 4084 · RMI MH16 · FEM 10.2.02 — auditor-ready FEA reports free.
- AME Rack lead time: Standard 20 days FOB Shenzhen; phase-by-phase delivery for multi-site rollouts.
If You Run a 3PL Hub, You've Lived These 6 Headaches
We've designed racking for contract logistics operators across 65 countries — from 5,000㎡ regional hubs to 100,000㎡ multi-client mega-DCs. Six patterns come up in nearly every kick-off call.
"Contract signed Monday, pallets arrive in 3 weeks"
Sales just won a new account. Operations needs to install 3,000 pallet positions and a pick mezzanine in 21 days — without disrupting the 4 existing clients in the building.
"Lost the contract — racking is welded to the floor"
Welded uprights and tack-welded beams cost 30% of original capex to remove, plus 4 weeks of dead floor space before the next client.
"Pickers grabbing wrong client's stock"
Open racking means client A's SKU sits next to client B's lookalike. One mis-pick costs the SLA bonus and the trust.
"Q4 doubles every client, capacity doesn't"
Black Friday + Christmas + Lunar New Year compress 40% of annual volume into 12 weeks. Renting overflow at $25/sqft destroys margin.
"One client B2B pallets, next client B2C piece-pick"
A 3PL building has to handle 1.5T frozen pallets AND single-eaches at the same time, in the same building.
"Client audit failed our racking on FEA report"
Large 3PL clients (FMCG, pharma, retail) demand stamped structural calculations and certified design before they sign.
9 Racking Systems Built for Contract Logistics & Multi-Client Hubs
A 3PL building rarely uses one rack type — most successful logistics operators combine 3–5 systems per facility. Below are the ten configurations we deploy, optimised for contract flexibility, multi-client separation and SLA throughput.
Selective Pallet Racking
The default rack for any 3PL building — direct access to every pallet, fast onboarding, easy SKU rotation between contracts. The starting point for 70% of contract logistics layouts.
Double-Deep Racking
Two pallets deep with reach-truck access — 35% denser than selective while keeping fast access. Pragmatic mid-range for 3PL hubs handling same-SKU pallet pairs.
Drive-In Racking
High-density LIFO for slow-moving single-SKU stock — perfect for 3PL clients with seasonal inventory, bulk storage or buffer pallets between production and dispatch.
Radio Shuttle Racking
Battery-powered shuttle cars on deep lanes — combines drive-in density with FIFO/LIFO flexibility. Ideal for FMCG 3PL contracts processing 30+ pallets/h.
Pallet Flow Rack
Inclined gravity rollers — load at back, pick at front. Pure FIFO for date-sensitive 3PL contracts (pharma, dairy, dated food). Zero pick-face replenishment delay.
Push-Back Racking
Cart-on-rail system — 2 to 5 pallets deep, LIFO, single-aisle access. The right choice when LIFO is acceptable and you want density without forklifts entering the rack.
VNA Racking
Very-narrow-aisle racking with 1.6m aisles + swing-mast trucks — unlocks 12m+ heights for 3PL buildings paying for unused cube. Best ROI when ceiling is high.

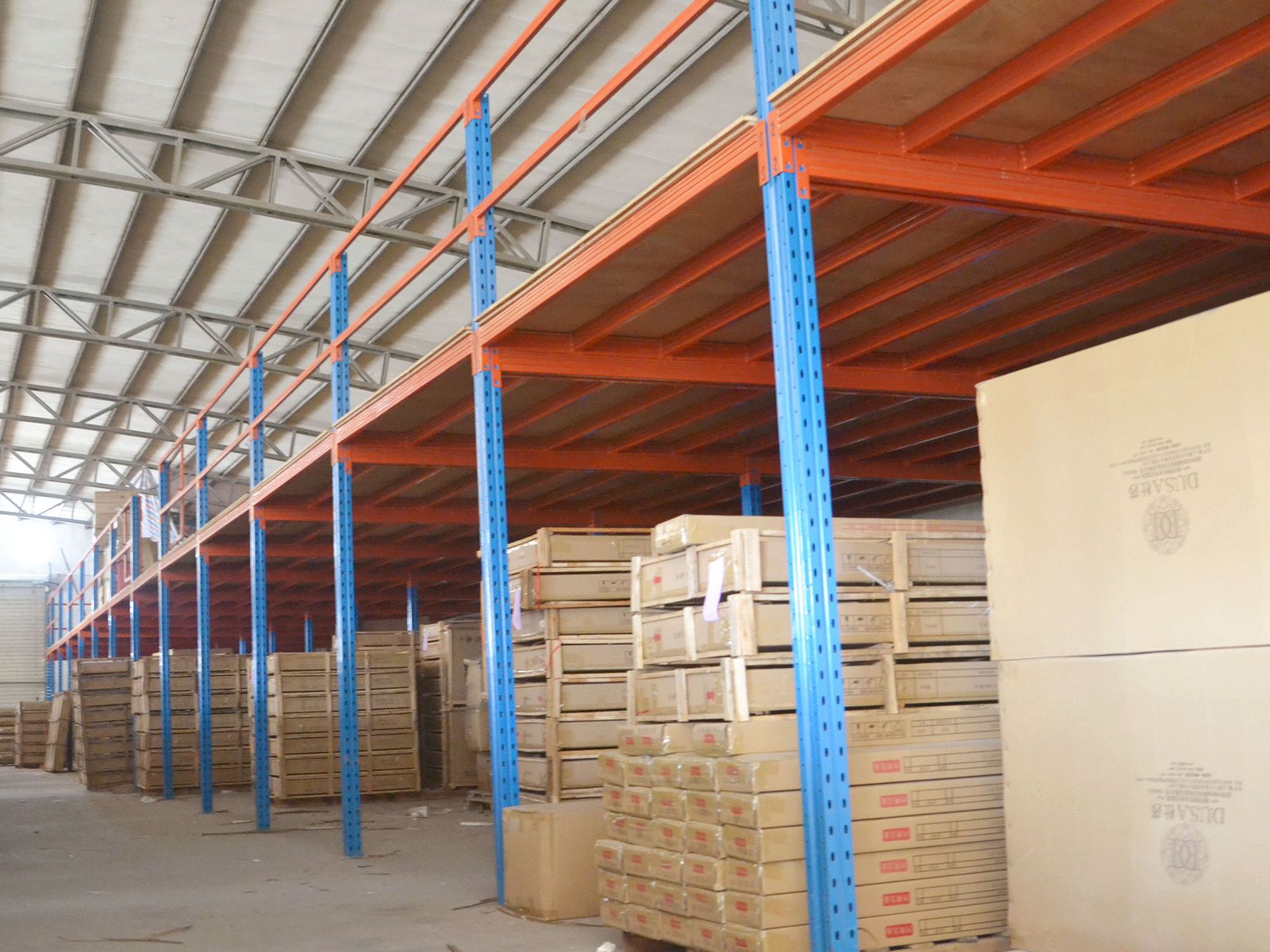

Multi-Layer Mezzanine
2- to 4-tier bolted mezzanines double or triple usable floor area for pick modules, packing benches, returns processing and value-added service zones — all stacked vertically.
Stack Racks (Stackable)
Free-standing collapsible pallet supports — perfect for Q4 overflow, then folded flat off-season. No floor anchoring required, ships in any container.
3PL Builds Running 24/7 for Real Contract Operators
Three recent 3PL hub installations where AME Rack designed the full racking stack — names, scale and operating duration available on request, with signed buyer feedback for each.
1000kg Mezzanine + Selective Hub for German 3PL
1,200㎡ multi-tier mezzanine with conveyor drop zones, packing benches and returns processing — built for a 4-client contract logistics operator near Hamburg. Tripled floor utilisation on existing lease.
Radio Shuttle System for US 3PL FMCG Hub
4-level radio shuttle racking with WMS-integrated charging stations — designed for a Texas 3PL operator serving 3 beverage brands. Cut replenishment cycle by 58% and freed 6 forklift drivers for picking duty.

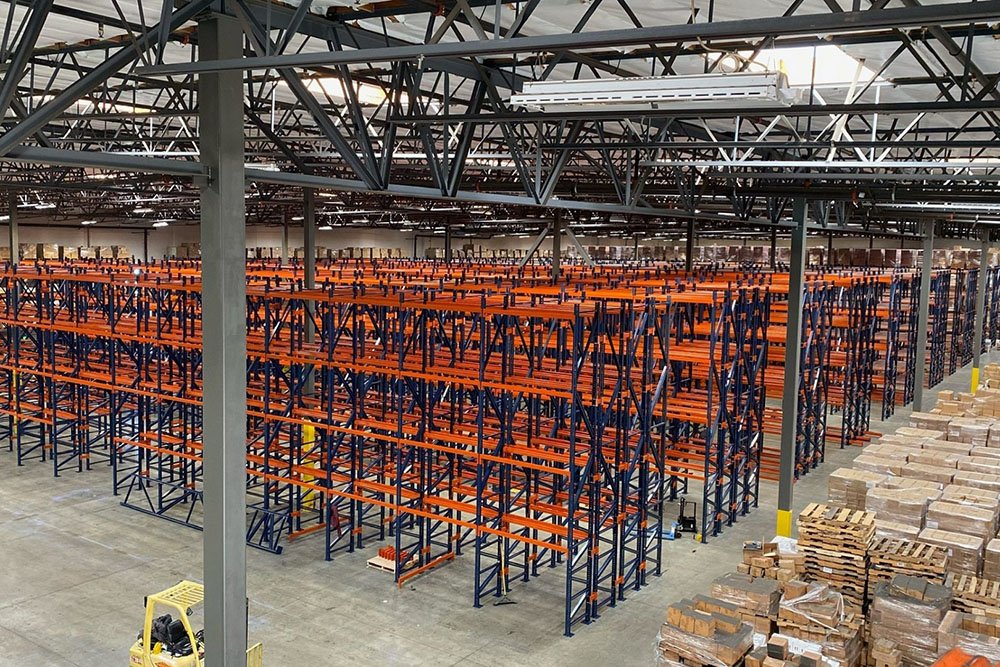

Double-Deep Hub for UAE Multi-Client 3PL
4,200 pallet position double-deep system + selective core area + 800㎡ pick mezzanine, designed for a Jebel Ali Free Zone 3PL serving 6 retail brands. Delivered phase-by-phase across 11 weeks.
3PL Warehouse Racking Engineering Specs
The parameters auditors, client procurement teams and project consultants ask for first. Full datasheets and stamped FEA reports issued free with every project — formatted to your local building authority.
| Parameter | Selective | Double-Deep | Push-Back | Radio Shuttle | Mezzanine |
|---|---|---|---|---|---|
| Standard Height | 3–8 m | 5–10 m | 5–10 m | 8–14 m | 2–4 tiers |
| Aisle Width | 2.8–3.5 m | 2.8–3.0 m | 2.8–3.0 m | Shared | n/a |
| Pallet Capacity | 1,000–2,500 kg | 1,000–1,800 kg | 800–1,500 kg | 1,000–1,500 kg | 500–800 kg/㎡ |
| Density vs Selective | Baseline | +35% | +50% LIFO | +80% | 2–4× floor |
| Steel Grade | Q235B / Q345B | Q345B | Q345B | Q345B | Q345B + H-beam |
| Upright Gauge | 1.8–2.5 mm | 2.0–2.5 mm | 2.0–2.5 mm | 2.0–3.0 mm | 3.0–4.0 mm |
| Coating DFT | 60–80 μm | 60–80 μm | 60–80 μm | 80–100 μm | 80–120 μm |
| Salt-Spray Test | 1,000h | 1,000h | 1,000h | 1,000h | 1,000h |
| Reconfig Time | 2–3 days | 3–4 days | 4–5 days | 5–7 days | 5–7 days |
| Compliance | EN 15512 · AS 4084 · RMI MH16 · FEM 10.2.02 | ||||
| Seismic Zone Rated | Zone I–IV (FEA verified) | ||||
| Typical Lead Time | 20 days | 20 days | 25 days | 30–35 days | 25–35 days |
How to Choose: When A vs B for Your 3PL Hub
Six trade-off decisions specific to contract logistics operations. Use these as the first-pass filter before requesting a detailed layout from our 3PL engineering desk.
Selective vs Double-Deep?
Pick Selective when client SKU mix changes monthly or you need true random access for piece-pick. Pick Double-Deep when at least 50% of your contract SKUs run in pallet pairs — 35% density at small access cost.
Drive-In vs Push-Back?
Drive-In wins on capex for slow C-SKUs with 1–2 pallets in/out per day. Push-Back wins when you need LIFO density AND forklifts must stay in the aisle (safer for shared multi-client environments).
Mezzanine vs Adding a Building?
Mezzanine when you need +100% to +300% floor area on existing lease — installed in 21–35 days at 5–10× lower capex than expansion. Building only when ceiling <5m or floor load >800kg/㎡.
Bolted vs Welded Racking?
Always bolted for 3PL. Reconfiguration is core to the business model — welded racking destroys 30% of capex every time a contract changes. AME Rack uses 100% bolted construction with M10/M12 grade 8.8 fasteners.
When does AS/RS pay back for a 3PL operator?
AS/RS payback in 3PL is typically 4–6 years when (a) one long-term anchor client signs ≥7 years, (b) labour cost > $20/h, and (c) SLA pick accuracy needs to exceed 99.9%. Below those thresholds, semi-automated shuttle systems are smarter.
How to design for new client onboarding?
Reserve 15–20% of footprint as unused selective bays in standardised dimensions (1.1m deep × 2.7m wide × 6m tall). When a new contract signs, allocate the reserved zone in 7 days and order only the missing accessories (mesh decks, signage, dividers) within standard 20-day lead time.
Side-by-Side: Which Rack Type Wins for Your 3PL Use Case
Six rack types × eight 3PL selection criteria — the cross-comparison most contract logistics ops directors wish they had before issuing the RFP. Use to narrow options before talking to engineering.
| Selection Criteria | Selective | Double-Deep | Drive-In | Push-Back | Radio Shuttle | Mezzanine |
|---|---|---|---|---|---|---|
| Storage Density | ★★ | ★★★ | ★★★★ | ★★★★ | ★★★★★ | ★★★★★ |
| Reconfig Speed | ★★★★★ | ★★★★ | ★★★ | ★★★ | ★★ | ★★★ |
| Multi-Client Friendly | ★★★★★ | ★★★★ | ★★ | ★★★ | ★★★ | ★★★★★ |
| SLA Pick Speed | ★★★★ | ★★★ | ★★ | ★★★ | ★★★★ | ★★★★ |
| Capex (per pallet) | $ Low | $$ Mid | $$ Mid | $$$ High | $$$$ Very High | $$ Mid |
| Onboarding Lead Time | 7–10 days | 7–14 days | 7–14 days | 14–21 days | 21–35 days | 21–35 days |
| Peak Season Scalable | ★★★★ | ★★★ | ★★ | ★★ | ★★★ | ★★★★★ |
| Best Contract Type | Multi-client core | B2B pallet stock | Seasonal buffer | Non-date C-SKU | FMCG anchor client | Pick & pack ops |
3PL Warehouse Racking Buyer's FAQ
The 15 questions 3PL ops directors, project consultants and contract logistics procurement teams ask before issuing the first PO.
01What is the best racking system for a 3PL warehouse?
02How quickly can a 3PL warehouse be reconfigured between contracts?
03How do you physically separate inventory from multiple 3PL clients?
04What lead time should a 3PL plan for new contract onboarding?
05Can AME Rack racking handle the SLA pick accuracy demands of major 3PL clients?
06Do you provide FEA structural reports for 3PL client audits?
07How do mezzanines help with 3PL peak-season volume?
08What is the typical density gain switching from selective to double-deep?
09Can racking accommodate different forklift fleets across multiple 3PL clients?
10What is the warranty on racking for 3PL operators?
11How does AME Rack support multi-site 3PL rollouts?
12Do you ship 3PL racking to Europe, North America and Asia-Pacific?
13Can racking be supplied unbranded for white-label 3PL operations?
14What payment terms are available for large 3PL projects?
15How does AME Rack pricing compare for 3PL projects?
Ready to Design the Right Rack Mix for Your 3PL Hub?
Send your building dimensions, current/expected contract mix and SLA targets — receive 3D layout, FEA report, BOM and FOB quotation within 4 working hours. Zero commitment, zero deposit.
