Pipe Storage Racking β Multi-Tier & Anti-Roll Storage for Steel, Copper, PVC & Composite Pipe
Purpose-built cantilever pipe storage for plumbing wholesalers, oil & gas service centres, irrigation distributors, HVAC contractors and pipe manufacturers. Open-front arms with upturned tips + bolt-on end stops + cradled saddle inserts handle DN 15 to DN 600 pipe in steel, copper, PVC, HDPE, PEX, PPR and stainless. AME Rack manufactures EN 15512 / RMI MH16.3 / AS 4084 / ISO 1461 HDG-compliant pipe racks β exported to 65+ countries.
The Anti-Roll Cantilever Architecture, Engineered for Round Cargo
Pipe storage racking (also called pipe racking, pipe storage rack, tube storage rack, cantilever pipe rack, pipe cantilever racking, steel pipe rack, PVC pipe storage, industrial pipe rack, tubular storage rack or pipe yard racking) is a purpose-built variant of cantilever racking engineered specifically for round cargo β pipe, tube, conduit, dowel β where the cargo geometry creates roll-off risk that flat-bed lumber racks cannot handle.
The architecture starts with the cantilever lumber rack baseline β open-front arms extending from vertical columns β and adds three pipe-specific engineering responses: (1) upturned arm tips at 5-8Β° (steeper than the 3-5Β° used for lumber), (2) bolt-on removable end stops on every arm tip to physically prevent roll-off, and (3) optional cradled saddle inserts in V-shape or curved profile to nest individual pipe SKUs by diameter (DN 15 / DN 25 / DN 50 / DN 100 / DN 150 etc).

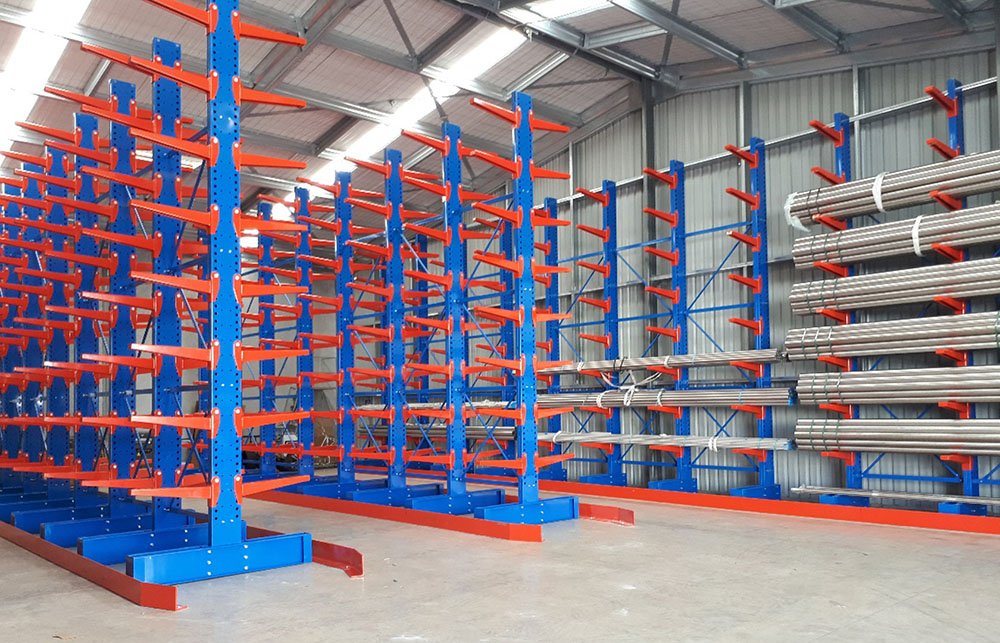

For pipe yards specifically, the colour-coded multi-tier layout (as shown in the reference image) lets operators identify SKUs visually from the aisle β 4-8 vertical tiers per column means a single column can host 4-8 different pipe diameters / materials, drastically reducing SKU contamination and mis-pick rates that plague free-stacked pipe storage.
AME Rack manufactures pipe storage racks compliant with EN 15512, RMI MH16.3 (cantilever-specific), AS 4084, FEM 9.831 seismic guidance and ISO 1461 (HDG) β with stamped FEA reports including off-centre eccentric loading analysis, mill test certificates on every steel batch, and free CAD layouts for pipe yard expansion projects.
Why Pipe Storage Racking Beats Free-Stacked Bunks & Lumber Racks
Eight reasons pipe storage racking has become the standard solution for plumbing wholesalers, oil & gas service centres, HVAC contractors and irrigation distributors β wherever round cargo needs roll-off prevention plus multi-SKU organisation.
Zero Pipe Roll-Off Design
5-8Β° upturned arm tips + bolt-on end stops + optional V-cradle saddles physically prevent round cargo from rolling off when stack-loaded or forklift-bumped.
4-8 Vertical SKU Tiers
Multi-tier column hosts 4-8 different pipe diameters per column. Eliminates SKU contamination, drops mis-pick rate from 5-8% to under 0.5%.
Open-Front Aisle Loading
No aisle-face uprights β forklift loads / picks the entire pipe bundle in one motion. 50-70% faster handling than weaving through pallet racking.
HDG Outdoor 15-Year Warranty
Hot-dip galvanized 80-120 ΞΌm per ISO 1461 + sealed cap plugs + UV-resistant arm caps. Survives outdoor pipe yards, rain, salt-spray for 15+ years.
EN 15512 + RMI MH16.3 Certified
FEA-verified to EN 15512 + RMI MH16.3 (cantilever-specific) + AS 4084 + Eurocode 8 seismic. Off-centre eccentric loading explicitly engineered.
Adjustable Arm Pitch (200-500mm)
Bolt-on arms reconfigurable at 200-500mm vertical pitch as your pipe-diameter mix changes. No welding, no concrete work β single-handed adjustment.
500-3,000 kg per Arm
Light variant for PVC / PEX (500 kg/arm); standard for copper / steel tube (1,500 kg/arm); heavy variant for structural steel pipe and oil & gas (3,000 kg/arm).
Open-Base Forklift Drive-Over
Forklift forks drive over the base channel β critical for 6m+ pipe that wouldn't clear an exposed base plate. Standard on all AME pipe rack columns.
4 Configurations of Cantilever Pipe Rack
Cantilever pipe storage in four standard variants β single-sided against the wall, double-sided free-standing, mobile-base for reconfigurable yards and HDG for outdoor exposure. Pick the layout, capacity and finish that match your site.
Single-Sided Cantilever
Arms on one face of the column only β designed to sit against a warehouse wall or building edge. 500β2,000 kg per arm, 4β6 arm tiers. The most floor-efficient layout when one side of the aisle is fixed.
Double-Sided Cantilever
Arms on both faces of the column β free-standing in the middle of the aisle for pick-from-both-sides access. 500β3,000 kg per arm, 4β8 tiers. The volume seller for plumbing wholesalers, HVAC distributors and pipe manufacturers.

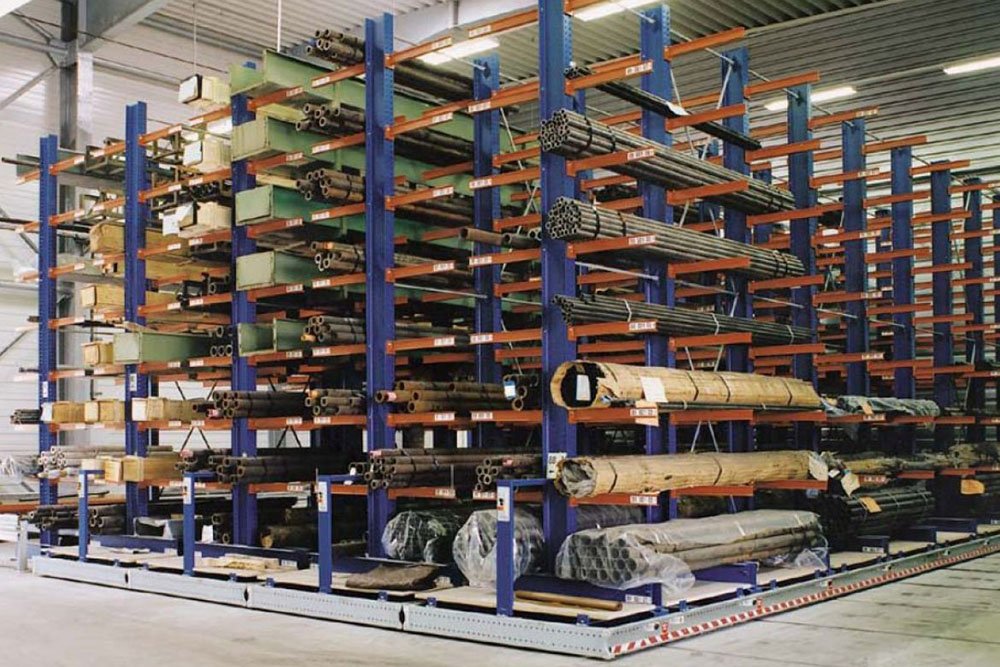

Mobile Cantilever
Cantilever columns mounted on a heavy-duty caster base with brake locks β reposition the entire rack unit when yard layout changes. 500β1,500 kg per arm. Ideal for construction sites, seasonal yards and job-site material staging.

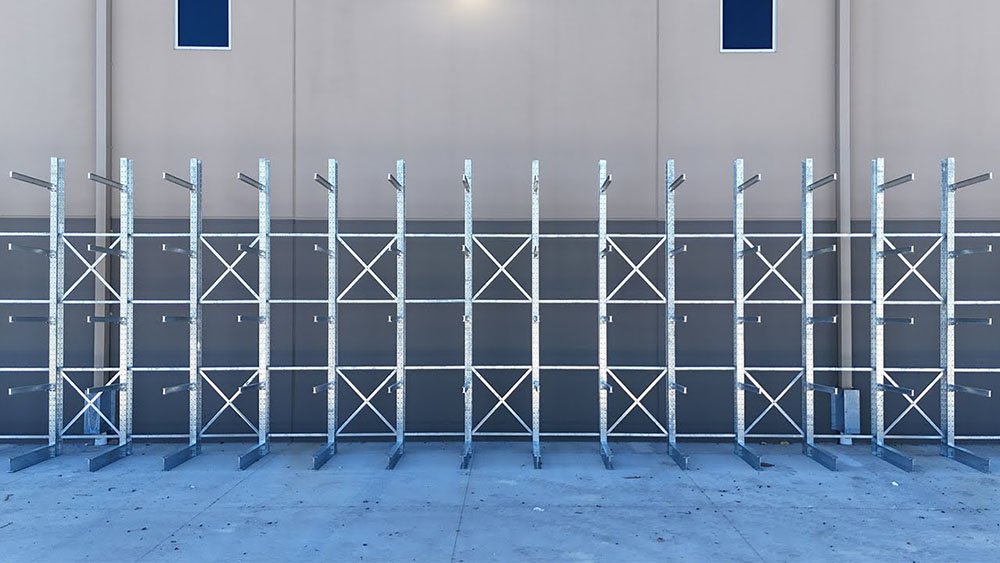

HDG Outdoor Cantilever
Hot-dip galvanised 80β120 ΞΌm per ISO 1461 + sealed cap plugs + drainage holes + UV-resistant arm caps. 500β3,000 kg per arm, single or double-sided layout. 15-year corrosion warranty for coastal, freeze and outdoor pipe yards.
Full Cantilever Pipe Rack Specification Matrix
Four production configurations covering the majority of pipe storage demand. All values verified by stamped FEA report (EN 15512 + RMI MH16.3) including off-centre eccentric loading analysis β request the full PDF datasheet with your quote.
| Specification | Single-Sided | Double-Sided | Mobile Cantilever | HDG Outdoor |
|---|---|---|---|---|
| βApplication & Layout | ||||
| Best for | Wall-side storage, tight aisles | Plumbing, HVAC, pipe wholesale | Construction sites, mobile yards | Outdoor yards, marine, coastal |
| Column layout | Single-sided | Double-sided | Single or double on caster base | Single or double |
| Anchor requirement | M16 chemical anchor | M16 chemical anchor | None β brake locks on casters | M16 HDG chemical anchor |
| βLoad & Capacity | ||||
| Arm capacity (per arm) | 500 β 2,000 kg | 500 β 3,000 kg | 500 β 1,500 kg | 500 β 3,000 kg |
| Arm length | 1.0 β 1.8 m | 1.2 β 2.0 m | 1.0 β 1.5 m | 1.2 β 2.0 m |
| Arm upturn angle | 5Β° | 5Β° (8Β° heavy-duty) | 5Β° | 5Β° (8Β° heavy-duty) |
| Arm pitch (vertical) | 250 β 400 mm | 250 β 500 mm | 300 β 400 mm | 300 β 500 mm |
| Arm tiers (typical) | 4 β 6 | 4 β 8 | 3 β 5 | 4 β 6 |
| βColumn & Structure | ||||
| Column profile | 150Γ75 I-beam | 150Γ75 β 200Γ100 I-beam | 100Γ50 I-beam + caster base | 150Γ75 I-beam |
| Column wall thickness | 2.5 mm | 2.5 β 3.0 mm | 2.0 β 2.5 mm | 2.5 mm |
| Column steel grade | Q345B | Q345B / S355JR | Q235B / Q345B | Q345B |
| Column height | 3 β 5 m | 3 β 8 m | 2.5 β 4 m | 3 β 6 m |
| Pipe diameter range | DN 15 β 300 | DN 15 β 600 | DN 15 β 200 | DN 25 β 400 |
| βAccessories & Safety | ||||
| End stops | Standard | Standard (heavy + locking for HD) | Standard | Standard |
| Saddle insert | Optional V-cradle | Optional V-cradle | Optional V-cradle | Optional V-cradle |
| Mobile hardware | β | β | Γ150 mm heavy-duty casters + brake locks | β |
| βFinish, Compliance & Commercial | ||||
| Surface finish | Powder coat 80 ΞΌm | Powder coat 80 ΞΌm | Powder coat 80 ΞΌm | HDG 80β120 ΞΌm per ISO 1461 |
| Corrosion warranty | 3 years | 3 years | 3 years | 15 years |
| Compliance | EN 15512 Β· RMI MH16.3 | EN 15512 Β· RMI MH16.3 Β· AS 4084 | EN 15512 Β· RMI MH16.3 | EN 15512 Β· ISO 1461 Β· RMI MH16.3 |
| Standard lead time | 22 β 28 days | 25 β 32 days | 25 β 30 days | 30 β 40 days |
10 Engineered Parts of a Pipe Storage Rack
Every pipe storage rack we ship is built from the same 10-part architecture β engineered specifically for round-cargo roll-off prevention, multi-SKU organisation and 20+ year service life in plumbing wholesalers, oil & gas service centres and pipe yards.
I-Beam / H-Section Columns
Hot-rolled I-beam columns (100-200mm) β single or double-sided. Slot-and-bolt arm mounting at 200-500mm pitch. Q345B / S355JR for heavy variants.
Upturned Cantilever Arms (5-8Β°)
Tapered I-section or rectangular arms with 5-8Β° upturned tip β steeper than lumber-rack 3-5Β° because round cargo rolls more easily than bundled lumber.
Bolt-On Removable End Stops
Bolt-on or pin-locking end stops on every arm tip β mandatory for pipe storage. Removable for loading, locked during storage. Prevents roll-off in all directions.
V-Cradle Saddle Inserts
Optional V-shape or curved saddle inserts nest individual pipe SKUs by DN diameter. Eliminates SKU contamination across same-arm bundle.
Heavy-Duty Anchored Base
10-16mm steel base plate with 4Γ M16-M20 chemical anchor bolts. Engineered for off-centre eccentric loading from off-balance pipe bundles.
Open-Base Forklift Channel
Forklift forks drive over the base channel β critical for 6m+ pipe that wouldn't clear an exposed base plate. Standard on all AME pipe rack columns.
Floor-Level Guide Rail
Optional yellow guide rail at floor level prevents forklift impact to column base. Keeps pipe bundles centred during loading.
Cross-Bracing & Top Tie
Diagonal cross-bracing between columns + top tie beam β converts independent columns into stable rack system. Mandatory for >5m heights.
Impact-Rated Column Protector
500-1,000mm HDG yellow column guards on every aisle-face column. Absorbs 400 J impact per EN 15512 Annex B without column damage.
Per-Arm Load Spec Sticker
Per-arm pipe-diameter range + capacity sticker (mandatory per EN 15635). Per-rack-run load notice plate. Annual rack inspection sticker tracking.
8 Industries Running on Pipe Storage Racking
Eight industries where pipe storage racks are the right spec β wherever round cargo (pipe, tube, conduit, dowel) needs safe organised storage and free-stacked bunks are an unacceptable safety / contamination risk.
Plumbing & HVAC Wholesale
Copper tube, PEX, PPR, PVC drain pipe, brass fittings. Multi-tier V-cradle layout handles 50+ DN SKUs per column without contamination.
Oil & Gas Service Centres
Drill pipe, casing, tubing, line pipe per API Spec 5L. Heavy-duty 3,000 kg/arm with 8Β° upturn + locking end stops for safety-critical storage.
Irrigation & Agriculture
HDPE pipe (DN 50-300), PVC mainline, drip irrigation tubing. Outdoor HDG variant for farm-yard exposure to UV, rain and seasonal storage.
Construction & Civil
Steel structural tube, concrete drainage pipe, sewer pipe, building services pipe. Construction-site mobile A-frame variants for temporary storage.
Electrical Conduit & Cable
EMT / IMC / RMC steel conduit, PVC electrical conduit, fibre-optic ducting. Light-duty variant with extra-wide arm spacing for bundled conduit.
HVAC & Refrigeration
Insulated copper line sets, refrigerant tubing, ductwork tube. Indoor powder-coat finish; arm padding for insulation protection.
Marine & Offshore
Ship spare-parts pipe, offshore drilling tubing, subsea pipe. HDG 120 ΞΌm + sealed cap plugs + 304 stainless variant for salt-water environments.
Fire Protection & Sprinkler
Galvanized steel fire main pipe (DN 25-200), sprinkler grooved pipe, fire hose reels. NFPA / UL-certified component storage for fire-protection contractors.
How to Spec a Pipe Storage Rack in 3 Decisions
Three decisions narrow your pipe rack from a 500 kg PVC light-duty to a 3,000 kg oil & gas heavy-duty. Get them right before requesting your quote β and always specify the worst-case off-centre loading scenario.
Pipe Material: PVC, Steel, Copper or Oil & Gas?
Pipe material drives arm capacity selection. Light pipe needs light racks; heavy steel pipe needs heavy racks.
- PVC / HDPE / PEX β 500 kg/arm light variant β
- Copper tube / PPR / brass β 1,500 kg/arm standard β
- Steel pipe / structural tube β 1,500-2,000 kg/arm β
- Oil & gas drill pipe / casing β 3,000 kg/arm + locking end stops β
- Stainless / high-alloy pipe β Custom engineered per project
SKU Count: Few or Many?
SKU complexity determines whether you need flat arms or V-cradle multi-tier layout.
- 1-5 SKUs β Standard flat arms with end stops β
- 5-20 SKUs β Multi-tier (4-6 levels) flat arms β
- 20-50 SKUs β Multi-tier with V-cradle saddles β
- 50+ SKUs (plumbing wholesale) β Multi-tier V-cradle 8 levels + visual colour coding β
- Mixed SKUs per arm β SKU contamination + mis-pick risk β
Environment: Indoor or Outdoor?
Surface finish drives lifecycle cost. Pipe yards typically live outdoors β get HDG by default.
- Indoor +5-40Β°C β Powder coat 60-80 ΞΌm; 10-yr warranty β
- Outdoor uncovered β HDG 80-120 ΞΌm; 15-yr warranty β
- Coastal / marine β HDG 120 ΞΌm + sealed cap plugs β
- Subsea / offshore β 304 stainless or specialty epoxy β
- Cold storage / freezer β HDG + Q345B low-temp impact steel
| If your operation stores... | Pick this configuration | Saddle option | Avoid |
|---|---|---|---|
| PVC drain & HDPE indoor warehouse | PVC Light-Duty Single-Sided | None (bundled PVC) | HDG (over-spec) |
| Plumbing wholesaler with 50+ copper SKUs | V-Cradle Multi-SKU 8-Tier | V-cradle per DN | Flat arms (contamination) |
| Steel pipe service centre indoor | Standard Steel Double-Sided | Optional V-cradle | Light-duty (under-spec) |
| Oil & gas drill pipe / casing | Heavy-Duty Oil & Gas 3T | V-cradle + locking end stops | Standard (safety risk) |
| Outdoor pipe yard coastal Australia | HDG Outdoor 120 ΞΌm + cyclone bracing | Optional V-cradle | Powder coat (corrodes) |
| Irrigation HDPE pipe outdoor farm | HDG Outdoor Standard | None (HDPE bundled) | Powder coat (UV/rain) |
| Fire protection sprinkler pipe | Standard Steel + NFPA-friendly | V-cradle for DN segregation | Flat (UL audit fails) |
| Subsea offshore stainless pipe | 304 Stainless Custom | V-cradle stainless | HDG (zinc in subsea) |
Pipe Storage Rack vs. Lumber Cantilever Β· Free-Stacked Bunks Β· Pallet Racking Β· Pipe Saddle Cradle
Where pipe storage racking wins, where alternatives win. Use this matrix to defend the spec internally β every row reflects what a real pipe yard or plumbing wholesaler manager evaluates.
| Criteria | Pipe Storage Rack | Lumber Cantilever | Free-Stacked Bunks | Pallet Racking | Pipe Saddle Cradle |
|---|---|---|---|---|---|
| Pipe roll-off prevention | β β β β β (designed for it) | β β β β β (3-5Β° upturn only) | β β β β β (high risk) | β β β β β (sides catch) | β β β β β |
| SKU segregation (multi-DN) | β β β β β (4-8 tier V-cradle) | β β β β β | β β β β β | β β β β β | β β β β β (per saddle) |
| Max pipe diameter (DN) | DN 15-600 (any) | Any (no constraint) | Any | Limited by beam (β€DN 100) | Engineered per saddle |
| Load per arm/position (kg) | 500-3,000 | 500-3,000 | Free-stacked | 800-1,500/pallet | 500-1,500 |
| Outdoor capable (HDG) | β β β β β | β β β β β | β β β β β | β β β β β | β β β β β |
| Mixed pipe length | β β β β β | β β β β β | β β β β β | β β β β β | β β β β β |
| Forklift cycle time | Fast (one-motion) | Fast | Slow (unstacking) | Slow (limited length) | Medium |
| Operator safety (HSE) | β β β β β | β β β β β | β β β β β (injury risk) | β β β β β | β β β β β |
| Cost per arm (USD FOB) | $55β195/arm | $45-180/arm | $0 (no rack) | $50-120/pallet | $95-280/saddle |
| Service life (yrs outdoor) | 15-20 yrs (HDG) | 15-20 yrs (HDG) | N/A | 5-8 yrs (HDG) | 15-20 yrs |
| Best for | Pipe yards, plumbing wholesale | Lumber + mixed long stock | Single-SKU bulk pipe | Short pipe β€2.4m | Single-DN exotic alloy pipe |
β AME Rack's Pipe-Yard Verdict
Pick pipe storage racking when you store pipe / tube / conduit of any kind β plumbing wholesalers, oil & gas service centres, HVAC contractors, irrigation distributors, fire protection contractors, pipe manufacturers. The end stops + upturn angle + multi-tier organisation eliminate roll-off injuries and SKU contamination that plague free-stacked alternatives. Lumber cantilever racks work for pipe only if you have low-velocity, single-SKU bundles where contamination doesn't matter β but lack the pipe-specific safety engineering (end stops, steeper upturn, V-cradle saddles). Free-stacked bunks win only on single-SKU bulk pipe where CapEx avoidance matters more than safety, mis-pick rate or operator ergonomics. Pallet racking fails on pipe longer than 2.4m (which is most pipe). Pipe saddle cradles beat racks for single-DN exotic alloy pipe (titanium, Inconel, super-duplex) where every unit costs USD 10,000+ and saddle nesting is mandatory.
3 International Pipe Storage Rack Projects by AME Rack
Real customers, real safety and cost KPIs. From a local UK plumbing wholesaler to a Saudi oilfield service centre and an Australian irrigation distributor β cantilever pipe racks deliver roll-off safety, multi-SKU organisation and outdoor durability where free-stacked alternatives create real injuries and audit failures.

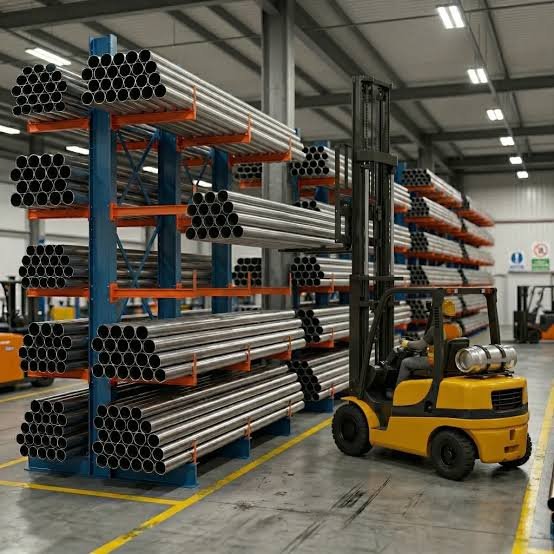

Single-branch wholesaler stored copper tube, PEX and PPR pipe on improvised lumber-stack bunks alongside 30-plus fittings SKUs. Pipe roll-off had caused several recordable near-miss incidents in the previous year. Mis-pick rate was stuck above 5% because mixed-DN bundles kept contaminating each other, and trade-counter customers complained regularly about wrong-DN deliveries.
36 double-sided cantilever pipe rack columns + 216 arms with 5Β° upturn + bolt-on end stops + V-cradle saddle inserts sized per DN. 6 vertical tiers per column β one DN per tier for clean visual separation. Powder-coat 80 ΞΌm indoor finish with colour-coded saddles for quick DN identification.
Zero pipe roll-off incidents in the 28 months since install β HSE reporting reset to clean. Mis-pick rate dropped by roughly 94%. Trade-counter complaints about wrong-DN deliveries dropped to a handful per month. Insurer reduced premium on the workplace safety upgrade. Customer placed a Year-2 expansion order for an adjacent bay.
OFS company stored drill pipe (DN 100β400, roughly 3,800 kg per joint) on an outdoor concrete pad with steel chocks. Standard powder-coat pallet racking had corroded in the coastal climate within 3 years, and the chock system had caused serious roll-off incidents in the previous 18 months. A tier-1 customer safety audit put the site on notice for contract termination unless the storage was upgraded.
24 double-sided heavy-duty oil & gas cantilever pipe rack columns + 168 arms (3,000 kg Γ 2.0 m S355JR) with 8Β° upturn + locking end stops on every arm. HDG 120 ΞΌm finish + sealed cap plugs + wind-rated cross-bracing. Stamped engineering per API Spec 5L + ASCE 7 wind load.
Zero pipe-handling incidents in the 30 months since install. Tier-1 customer safety audit passed with zero findings β contract renewed on schedule. Corrosion-related replacement cycle eliminated (15-year HDG warranty). Insurer reduced premium on the safety-rated infrastructure upgrade.

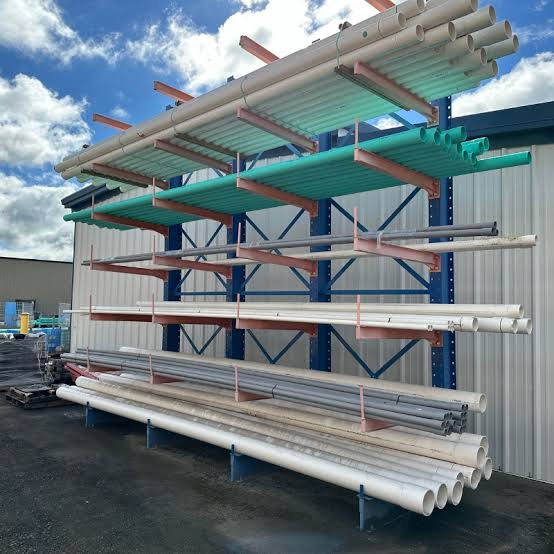

Distributor stored HDPE pipe (DN 50β300) and PVC mainline on an outdoor yard. Standard powder-coat racks had corroded in coastal Queensland salt-air within 5 years, and a regional cyclone had damaged several rack runs a few seasons earlier. A safety auditor had blocked yard expansion pending compliant rack replacement.
18 double-sided HDG outdoor cantilever pipe racks + 108 arms (1,500 kg Γ 1.5 m) with 5Β° upturn + end stops. HDG 120 ΞΌm finish + sealed cap plugs + cyclone-rated AS 1170.2 cross-bracing + M20 chemical anchors with epoxy grout. Stamped engineering by an Australian RPEQ-registered engineer.
Rode out a subsequent regional cyclone with zero rack damage despite high wind gusts. Corrosion-related replacement cycle eliminated. Yard expansion approved by safety auditor. Insurer reduced premium on the cyclone-rated infrastructure. Distributor placed a Year-2 expansion order for additional columns.
7-Stage Manufacturing & Quality Pipeline for Pipe Storage Racks
Every pipe storage rack leaves our Dongguan factory through a 7-stage production line built around mill-certified I-beam columns, EN 1090 EXC2 robotic welding, off-centre eccentric load testing and ISO 1461 HDG coating verification β the pipe-specific extras that lumber rack producers skip.
Hot-Rolled I-Beam & Sheet Inbound
Hot-rolled I-beam columns (Q345B / S355JR) from Baosteel + cold-rolled sheet for arms. Mill test certificate (yield, elongation, chemistry, Charpy V-notch) on every batch; AME QC retests per ISO 6892.
CNC Cutting & Arm Forming
CNC laser cutting (Β±0.2mm) prepares column slots, base plate holes, arm bolt patterns and end-stop mounting holes. Arms press-formed from 6-10mm steel sheet with engineered 5-8Β° upturn angle (steeper than lumber rack 3-5Β°).
V-Cradle Saddle Fabrication
V-shape or curved saddle inserts CNC press-formed from 4-6mm steel sheet β engineered per customer DN range (DN 15 / DN 25 / DN 50 / DN 100 / DN 150 / DN 200+). Bolt-on design for field interchange.
Robotic Welding (EN 1090 EXC2)
8-station Panasonic robotic MIG welder. Full-penetration welds at every arm-to-bracket joint, end-stop mount, and base-to-column joint. Ultrasonic spot-check per ISO 17636. Random destructive sampling monthly.
Surface Treatment
Indoor: 7-stage pre-treatment + powder coat 60-80 ΞΌm + 200Β°C oven cure. Outdoor: hot-dip galvanizing 80-120 ΞΌm per ISO 1461 β coating thickness verified per panel using Elcometer, adhesion peel-tested before release.
Off-Centre Eccentric Load Testing
Each batch sampled for arm load test: 1.5Γ rated load held 24 h, deflection < L/200. Critical addition for pipe racks β off-centre eccentric loading test simulates real forklift loading scenarios where pipe bundles sit off-axis on the arm.
Packaging & Container Loading
IPPC ISPM-15 wood pallets, edge guards on HDG arms (prevent rub damage during shipping), PE film wrap. End stops + saddles packed separately for field install. Container loaded per assembly sequence + photo/video proof.
How to Buy Pipe Storage Racking β A 6-Point Checklist
Six things every pipe yard manager, plumbing wholesaler, oilfield service buyer and HVAC contractor should validate before placing a pipe rack PO. These are the questions our top customers always ask.
π 1. Pipe Specification Confirmation
- Pipe material (steel / copper / PVC / HDPE / PEX / PPR / stainless)
- DN range (smallest to largest) AND quantity per DN
- Pipe length range (typical & max)
- Pipe bundle weight per arm position (worst case)
- Pipe surface condition (oily / coated / bare metal)
- API Spec 5L grade (if oil & gas)
π‘οΈ 2. Compliance & Test Reports
- EN 15512 structural calculation (stamped engineer)
- RMI MH16.3 cantilever-specific design verification
- AS 4084 / Eurocode 8 seismic / AS 1170.2 wind load
- ISO 1461 HDG coating certificate (outdoor variant)
- Off-centre eccentric load test report (1.5Γ rated)
- End-stop pull-test & saddle insert weight test
π§ 3. Saddle & End-Stop Decisions
- End stops on every arm (yes for steel/copper/oil&gas)
- V-cradle saddles per DN (yes for multi-SKU plumbing wholesale)
- Locking end stops (mandatory for oil & gas 3,000 kg arms)
- Saddle padding (for coated pipe / fragile finish)
- Colour-coded saddles per DN (visual SKU ID for wholesale)
π° 4. Payment & Project Terms
- T/T 30% deposit + 70% before B/L (standard)
- L/C at sight for orders β₯ USD 50,000
- Incoterms: FOB Shenzhen (default), CIF, DDP available
- Installation supervision USD 280/day (recommended for >6m)
- Performance bond 5% (held 12 months for major projects)
π’ 5. Logistics & Installation
- 40HQ holds ~130 columns + 780 arms + end stops + saddles
- HDG components edge-protected to prevent shipping rub damage
- Saddles + end stops packed separately for field install
- IPPC ISPM-15 wood pallets + container loading photo evidence
- Lead time: 25 days powder coat, 30 days HDG, 35 days V-cradle saddles
π€ 6. After-Sales & Warranty
- 10-year structural warranty (15 years HDG outdoor)
- Free replacement parts in 1st year for manufacturing defects
- Annual EN 15635 rack inspection (mandatory commercial yards)
- Spare parts stocked 15+ years (arms, columns, saddles, end stops)
- Damage assessment service (photo evaluation)
- Dedicated account manager (WhatsApp / Email)
Everything Plumbing Wholesalers, OFS Buyers & Pipe-Yard Managers Ask About Pipe Storage Racks
Real questions from plumbing wholesalers, oilfield service buyers, HVAC contractors, irrigation distributors and fire protection contractors during 8+ years of pipe rack export projects. Bookmark this β it answers ~95% of pre-PO objections.
Q01. What is a pipe storage rack and how is it different from a lumber cantilever rack?
Pipe storage rack is a cantilever rack engineered specifically for round cargo β adds 3 pipe-specific features that lumber racks lack: (1) 5-8Β° upturn arm tips (steeper than 3-5Β° on lumber racks), (2) bolt-on end stops on every arm tip (prevent roll-off), (3) optional V-cradle saddles (nest individual pipe by DN to eliminate SKU contamination). Lumber racks handle flat bundled lumber fine but lack the round-cargo safety engineering.
Q02. What is the typical lead time?
25 days for standard powder-coat indoor configurations; 30 days for HDG outdoor variants; 35 days for V-cradle saddle multi-SKU configurations; 35 days for cyclone / seismic-rated configurations. Express 18-day production possible for repeat customers with stock components.
Q03. What pipe diameter range can the racks handle?
DN 15-600 supported. Light-duty PVC racks: DN 15-110. Standard steel racks: DN 15-200. Heavy-duty oil & gas racks: DN 100-600. V-cradle saddles are engineered per DN β specify your full DN range at quote stage and we engineer the saddle profile to fit your exact pipe mix.
Q04. Do I need end stops on the arm tips for pipe?
YES β mandatory for round cargo. Pipe rolls easily; the 5-8Β° upturn alone is not enough safety margin. Bolt-on end stops are standard on every AME pipe rack arm. Locking end stops are mandatory for oil & gas drill pipe and any >2,000 kg arm. Removable design allows loading; locked during storage.
Q05. What are V-cradle saddles and when do I need them?
V-cradle saddles are V-shaped or curved steel inserts bolted to each arm β they nest individual pipe by DN diameter, preventing SKU contamination across the bundle. Need them when you store 5+ DN sizes per column. Plumbing wholesalers with 50+ SKUs typically use 4-8 tier V-cradle layout β colour-coded per DN for visual operator ID.
Q06. Can pipe storage racks be used outdoors?
Yes β outdoor pipe yard is the most common use. Order the HDG variant: hot-dip galvanized 80-120 ΞΌm per ISO 1461 + sealed cap plugs + UV-resistant arm caps + drainage holes in base. 15-year corrosion warranty in coastal / freeze-thaw / cyclone climates. Specify cyclone-rated bracing for Queensland Australia, Florida USA, Caribbean zones.
Q07. What arm load can a pipe storage rack handle?
PVC light-duty: 500 kg/arm. Standard steel/copper: 1,500 kg/arm. Heavy-duty oil & gas: 3,000 kg/arm. Custom: up to 5,000 kg/arm for casing & line pipe. Always specify the heaviest single bundle AND the worst-case off-centre loading scenario β eccentric loading drops effective capacity 20-35%.
Q08. What is "off-centre eccentric loading" and why does it matter?
When a forklift loads a pipe bundle slightly off-axis on the arm (very common in real operations), the bending moment on the arm root increases dramatically. AME pipe racks are explicitly engineered for off-centre loading β we run FEA both centred and eccentric. Cheap competitors only test centred loading, which is why their arms fail in real-world pipe yards.
Q09. What standards do AME Rack pipe storage racks comply with?
EN 15512 (European racking structure), RMI MH16.3 (cantilever-specific β the Americas standard), AS 4084 (Australia), FEM 9.831 / Eurocode 8 (seismic), AS 1170.2 / ASCE 7 (wind/cyclone), ISO 1461 (HDG), EN 1090 EXC2 (welding), API Spec 5L (oil & gas pipe storage), ISO 9001 / 14001 factory.
Q10. How many tiers can a pipe storage rack have?
Standard: 4-6 tiers per column. Maximum: 8 tiers (for plumbing wholesale with many DN). Vertical arm pitch 200-500mm (closer pitch = more tiers = more SKUs per column). Above 6 tiers requires top-tie cross-bracing for stability. Maximum column height 8m β above which engineered bracing is mandatory.
Q11. Can pipe storage racks handle cyclone / hurricane wind loads?
Yes β cyclone-rated variant uses extra cross-bracing per AS 1170.2 (Australia), ASCE 7 (USA) or Eurocode 1 (EU) wind load calculation. M20 chemical anchors with epoxy grout, top-tie cross-bracing at 6m intervals. Standard for Queensland Australia, Florida USA, Caribbean and Pacific Rim pipe yards. Stamped engineering by local registered engineer.
Q12. Are pipe racks Aramco / API-audit compliant for oil & gas?
Yes β heavy-duty oil & gas variant designed per API Spec 5L pipe handling guidance. 8Β° upturn + locking end stops + V-cradle saddles + cyclone-rated bracing. Documentation pack includes EN 15512 calc + API Spec 5L pipe handling compliance + Aramco-format inspection report. Used by major Middle East oilfield service operators.
Q13. How does AME Rack pipe storage rack pricing compare to European brands?
Pipe storage rack is a steel-and-engineering-driven product β our FOB Shenzhen pricing typically lands at 40-55% of EU brand pricing (Mecalux / Stow / SSI SchΓ€fer), even after shipping and 5-10% import duty. We use the same Q345B / S355JR steel grades, same EN 15512 / RMI MH16.3 standards, same FEA validation methodology (including off-centre eccentric loading analysis).
Q14. What is the warranty?
10-year structural warranty on standard powder-coat indoor configurations. 15-year warranty on HDG outdoor variants (covered by ISO 1461 spec). 10-year + seismic/cyclone certification on hardened configurations. Covers manufacturing defects, weld failure, paint corrosion-through, saddle deformation. Excludes user damage (forklift impact >400J, overload, chemical exposure outside rated environment).
Q15. What payment terms do you accept?
Standard: 30% T/T deposit + 70% before B/L. L/C at sight for orders β₯ USD 50,000. Performance bond 5% for major projects (held 12 months). After 3 successful POs, repeat customers can negotiate OA 30-60 days subject to credit check. Western Union accepted for samples β€ USD 2,000. Major plumbing wholesalers and OFS customers often arrange escrow / inspection-based payment.
Get a Pipe Storage Rack Layout + Quote in 48 Hours
Send your pipe yard CAD + pipe profile (material / DN range / bundle weight / quantity per DN) + environment (indoor / outdoor / coastal / cyclone zone) β we return optimised pipe rack layout with V-cradle saddle design, FOB pricing, FEA load report (centred + eccentric) and lead time within 48 hours. Free engineering review. Free HDG coating cert. Free installation drawing pack.
π© 3 Ways to Start the Conversation
π§ Lily@amerack.com
π¬ WhatsApp / Phone: +86 188 2453 7792
π Dongguan, Guangdong, China Β· MONβSAT 09:00β18:00 (GMT+8)
