Industrial Pallet Racking — Heavy-Duty & Impact-Resistant Storage for Manufacturing & Industry
Built for the harsh end of the warehouse spectrum: foundries, automotive plants, steel service centres, chemical processors, outdoor yards and 24/7 production lines. AME Rack manufactures industrial-grade pallet racking with 2.5–3.5mm thick uprights, Q345B / S355JR steel, 1,500–5,000 kg per pallet capacity, HDG outdoor-rated finishes and seismic-zone reinforcement — EN 15512 / FEM 10.2.02 / RMI MH16.1 / AS 4084 certified, exported to 65+ countries.
The Heavy-Duty Backbone of Manufacturing, Industry & Outdoor Storage
Industrial pallet racking (also called heavy duty pallet racking, industrial storage rack, heavy duty warehouse racking, industrial pallet rack system, heavy load pallet racking, industrial warehouse racking, heavy-duty storage system, industrial racks, factory pallet racking or manufacturing plant racking) is engineered for the harsh end of the storage spectrum — where pallets weigh 1,500–5,000 kg, forklift cycles run 24/7, temperatures swing -30 to +60°C, and rack failures cost production hours, not just inventory.
Where general-purpose selective racking handles 800–1,500 kg pallets in a clean warehouse, industrial pallet racking handles steel coils, machined castings, drum stock, IBC totes, engine blocks, transmission housings, mould tools, chemical drums and outdoor construction materials. The engineering response is reinforced everywhere: 2.5–3.5mm Q345B / S355JR uprights (vs 1.8–2.0mm Q235B in standard selective), box-section beams to 200×100mm with 4,000+ kg per pair, HDG 80–120 μm outdoor finish, seismic-zone bracing and impact-rated column protectors on every upright.
The economics matter: a single rack failure in a foundry / chemical plant / 24/7 manufacturing line can stop production for 4–24 hours at USD 8,000–40,000/hr lost-output cost. Industrial-grade racking carries a 20–35% premium over standard selective per pallet position — but the 10-year structural warranty, seismic certification and impact-survival design reduce stoppage risk by 90%+ compared with under-spec'd standard rack.
AME Rack manufactures industrial pallet racking to EN 15512, FEM 10.2.02, RMI MH16.1, AS 4084 and FEM 9.831 seismic guidance — with stamped FEA reports by chartered engineer, mill test certificates on every steel batch, and full IQ/OQ commissioning documentation for ISO 9001 / IATF 16949 audited customers.
Industrial Pallet Racking — Manufacturing Plant Install
Why Industrial-Grade Racking Pays Back in Plant Uptime
Eight reasons heavy-duty industrial pallet racking is the right spec for manufacturing plants, foundries, chemical processors and 24/7 production lines — where rack failure costs production hours, not just inventory loss.
1,500–5,000 kg Per Pallet
Reinforced uprights and box-section beams handle steel coils, IBC drums, machined castings and engine blocks. Engineered to 1.5× safety factor per EN 15512.
2.5–3.5mm Q345B / S355JR Steel
High-tensile structural steel — 30-50% stronger than the Q235B used in standard selective. Engineered for repeated forklift impact and dynamic load cycles.
-30 to +60°C Operating Range
HDG variant survives outdoor yards, freezer warehouses and hot foundry environments. Q345B low-temp impact steel certified -30°C Charpy V-notch.
Impact-Rated Column Protectors
500-1500mm tall HDG column guards on every aisle-face upright. Engineered to absorb 400 J impact (EN 15512 Annex B) without damaging the rack column.
Seismic Zone Certified
FEA-verified for seismic zones 3-4 per ASCE 7 / Eurocode 8 / GB 50011. Cross-bracing engineered with extra ductility for cyclic loading.
24/7 Heavy-Cycle Engineered
Designed for 4,000+ forklift cycles per beam per year. Beam-to-upright connection rated for repeated loading with fatigue safety factor 1.8.
Hot & Cold Forklift Compatible
Standard 3,000-5,000 kg counterbalance forklifts. Reinforced base plates accept dropped-pallet shock from heavy fork trucks without anchor failure.
10-Year Structural + Seismic Warranty
Same warranty as European brands at 40-55% of FOB price. Stamped FEA report from chartered engineer included free. Spare parts stocked 15+ years.
6 Configurations of Industrial Pallet Rack
Industrial pallet racking is one base architecture with six widely-deployed variants. Pick the version that matches your pallet weight, environment (indoor / outdoor / freezer / chemical), and seismic zone.
Heavy-Duty Selective Industrial Rack
Reinforced selective: 2.5mm Q345B uprights + 200×100mm box beams, 2,000-3,000 kg per pallet pair. The default for manufacturing plant raw material storage.
Extra Heavy-Duty Pallet Rack (5,000kg)
3.5mm S355JR uprights + 250×100mm beams + reinforced base plates. For engine blocks, transmission cases, steel coils up to 5,000 kg per position.

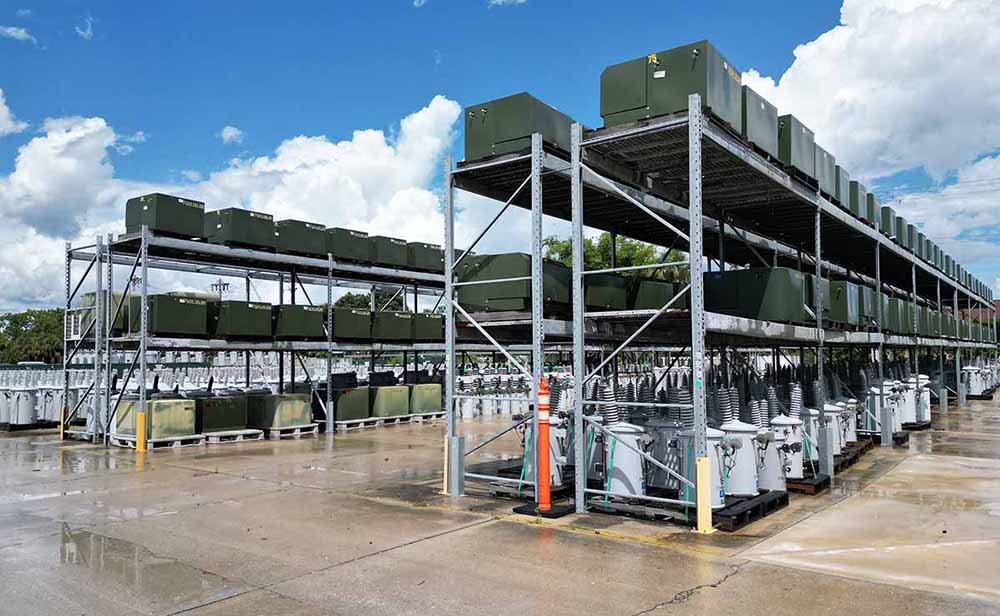

Outdoor HDG Industrial Racking
Hot-dip galvanized 80-120 μm finish per ISO 1461 + sealed cap plugs + drainage holes in base. 15-year corrosion warranty for outdoor yards.

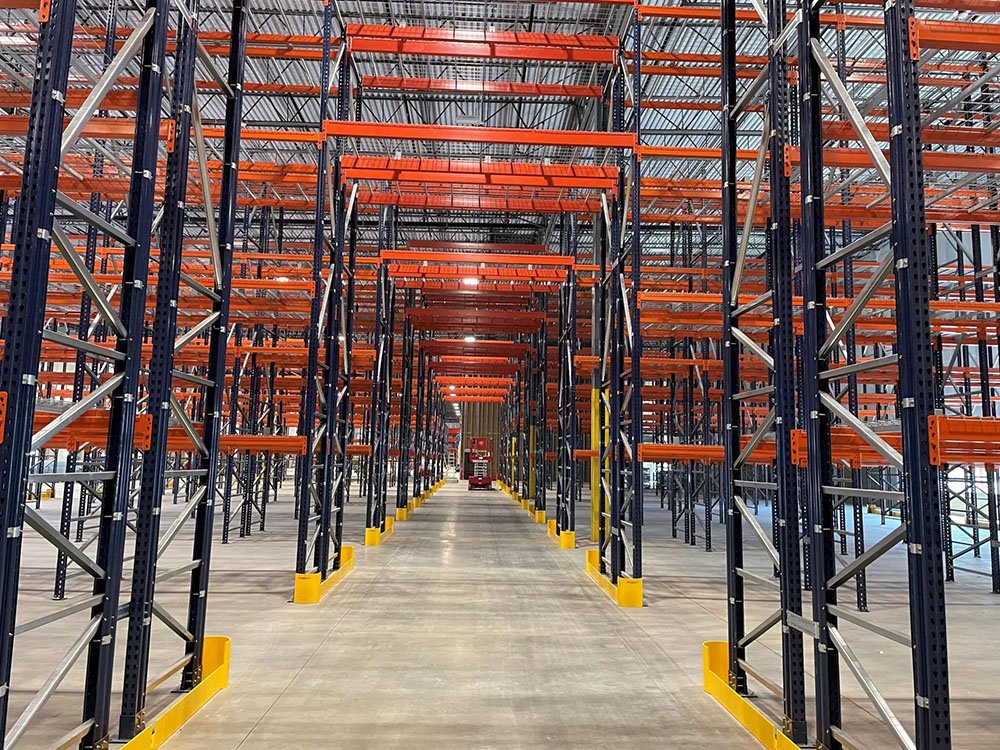

Seismic-Zone Industrial Racking
Extra cross-bracing + chemical anchor bolts + ductile design per ASCE 7 / Eurocode 8. For California, Japan, Chile, Türkiye, Indonesia and other seismic zones 3-4.
Cold-Storage Heavy-Duty Rack
Q345B low-temp impact steel (Charpy V-notch -30°C) + HDG finish. For freezer warehouses where heavy pallets (meat / fish / frozen food cases) meet -25°C cold.
Chemical & Drum Industrial Rack
Acid-resistant epoxy coating + secondary spill containment trays + 304 stainless option. For chemical processors, paint manufacturers, petroleum storage.
Full Industrial Pallet Rack Specification Matrix
Five production-default configurations covering 95% of industrial demand. All values verified by stamped FEA report (EN 15512 + FEM 10.2.02 + FEM 9.831 seismic) — request the full PDF datasheet with your quote.
| Specification | Heavy-Duty 2T | Extra Heavy-Duty 5T | HDG Outdoor 3T | Seismic Zone 4 (3T) | Chemical & Drum (2T) |
|---|---|---|---|---|---|
| Pallet load (per position) | 2,000 kg | 5,000 kg | 3,000 kg | 3,000 kg | 2,000 kg |
| Upright thickness | 2.5 mm | 3.5 mm | 2.8 mm | 3.0 mm | 2.5 mm |
| Upright steel grade | Q345B | S355JR | Q345B (HDG) | S355JR (ductile) | Q345B + epoxy |
| Beam cross-section | 120×60 mm box | 200×100 mm box | 150×75 mm box | 150×75 mm box | 120×60 mm box |
| Beam capacity (per pair) | 4,000 kg | 10,000 kg | 6,000 kg | 6,000 kg | 4,000 kg |
| Base plate thickness | 10 mm | 16 mm | 12 mm | 14 mm | 10 mm |
| Anchor bolt | M16 chemical | M20 chemical | M16 chemical (HDG) | M20 chemical + grout | M16 stainless |
| Frame height range | 3–12 m | 3–10 m | 3–8 m | 3–9 m | 3–8 m |
| Beam length range | 1.8–3.3 m | 1.8–2.8 m | 1.8–3.0 m | 1.8–2.8 m | 1.8–3.0 m |
| Column protector | 500mm HDG | 1,000mm HDG | 1,000mm HDG | 1,500mm HDG + ductile | 500mm HDG + spill tray |
| Operating temperature | -10 to +40°C | -10 to +50°C | -25 to +60°C | -20 to +40°C | -10 to +40°C |
| Surface finish | Powder coat 80 μm | Powder coat 80 μm | HDG 80–120 μm | Powder coat 80 μm | Acid-resistant epoxy 100 μm |
| Seismic certification | Zone 1-2 | Zone 1-2 | Zone 1-2 | Zone 3-4 (Eurocode 8) | Zone 1-2 |
| Standard compliance | EN 15512 · FEM 10.2.02 | EN 15512 · RMI MH16.1 | EN 15512 · ISO 1461 | EN 15512 · Eurocode 8 · ASCE 7 | EN 15512 · acid-resistance |
10 Engineered Parts of an Industrial Pallet Rack
Every industrial racking system we ship is built from the same 10-part architecture — reinforced at every weak point compared with standard selective. Designed for 20+ year service life in foundries, chemical plants, manufacturing lines and outdoor yards.
Heavy-Duty Upright Frames
2.5-3.5mm Q345B / S355JR uprights with diagonal & horizontal bracing. 50mm slot pitch. Welded base-plate connection — no bolt-on weakness.
Box-Section Beams (120-250mm)
Closed box-section beams 120×60mm to 250×100mm — 4,000-10,000 kg per pair. Hook-in safety pin connector locks to upright slots.
Reinforced Anchor Base Plates
10-16mm thick base plates with M16-M20 chemical anchor bolts. Engineered to transfer dynamic forklift impact to concrete without anchor failure.
Impact-Rated Column Protectors
500-1,500mm HDG yellow column guards on every aisle-face upright. EN 15512 Annex B impact-test rated 400 J without rack damage.
Cross & Diagonal Bracing
Reinforced K-bracing with ductile connections for seismic zones. FEM 9.831 / Eurocode 8 / ASCE 7 verified for cyclic loading.
Heavy-Duty Decking
Pressed steel panel (4-6mm) or 6mm wire mesh with 4× cross-bar support. Engineered for direct case-stacking without pallet.
Pallet Support Bars + Centre Stops
Heavy-cross bars between beams + pallet centre stops prevent push-through and edge loading. Critical for damaged / slip-sheet / plastic pallets.
Mesh-Back Safety Panels
Rear safety mesh prevents push-through onto adjacent aisle. Mandatory for back-to-back industrial installations per EN 15620 safety guidance.
Load Notice + Inspection Plates
Heavy-gauge metal load signage on every rack run (EN 15635 mandatory). Annual rack-inspection sticker tracking damage and repair history.
Industrial Surface Finish
Standard: powder coat 80 μm Akzo Nobel over zinc primer. Outdoor: HDG 80-120 μm per ISO 1461. Chemical: acid-resistant epoxy 100 μm.
8 Industries Running on Industrial Pallet Racking
Eight industries where industrial-grade racking is the right spec — wherever pallet weight, environmental harshness, 24/7 cycling or rack-failure cost makes standard selective inadequate.
Automotive Manufacturing
Engine blocks, transmission cases, brake assemblies, body-in-white parts. 2,000-3,500 kg pallets, IATF 16949 audit-compliant racking.
Foundry & Steel Service Centre
Steel coils, ingots, machined castings, raw billets. Extra heavy-duty 5,000 kg variant with reinforced base plates and 16mm anchor bolts.
Chemical & Petrochemical
Drum stock, IBC totes, chemical raw materials. Acid-resistant epoxy coating, spill-tray containment, 304 stainless option for corrosive media.
Heavy Cold-Chain Storage
Frozen meat half-pallets (2,000-2,500 kg), seafood crates, dairy bulk. HDG + Q345B low-temp impact steel rated -25°C 24/7 operation.
Construction Materials & Outdoor
Tile, brick, dimensional lumber, roofing materials, prefab construction components. Outdoor HDG variant for builder yards and merchant DCs.
Heavy Machinery & Industrial Parts
Motors, pumps, gearboxes, hydraulic cylinders, industrial spare parts. Specialty cradle decking for irregular machinery shapes.
Petroleum / Oil & Gas
Drilling spare parts, valve assemblies, pipe fittings, blowout preventer components. Marine HDG finish for offshore and platform supply DCs.
Heavy Industrial 3PL
Third-party logistics serving foundry / automotive / chemical customers. Multi-zone industrial DC with reinforced racking across all bays.
How to Spec an Industrial Pallet Rack in 3 Decisions
Three decisions narrow industrial racking spec from "all 5,000 kg overkill" or "1,000 kg under-spec" to the right capacity, environment and seismic rating. Work through them before requesting your quote.
Load: What is Your WORST-CASE Pallet?
Industrial racking is spec'd to the heaviest pallet your operation will ever store — not the average. Under-spec is the #1 cause of rack collapse.
- 1,500-2,000 kg — Boxed manufactured goods, drum stock
- 2,500-3,000 kg — IBC totes, machined castings, auto parts
- 3,500-4,500 kg — Engine blocks, transmission cases, raw steel
- 5,000+ kg — Steel coils, foundry billets, dies / moulds
Environment: Indoor, Outdoor or Chemical?
Surface finish drives lifecycle cost. The wrong finish means corrosion-through in 3 years vs 15+ years.
- Indoor +5-40°C — Powder coat 80 μm; 10-yr warranty
- Outdoor / coastal / marine — HDG 80-120 μm; 15-yr warranty
- Cold storage -25°C — HDG + Q345B low-temp steel
- Chemical / acid exposure — Acid-resistant epoxy or 304 SS
- Foundry / hot industrial — Specialty high-temp powder coat
Seismic Zone: 1-2 or 3-4?
Seismic zone determines bracing and anchor design. Under-spec in earthquake zones is a regulatory and insurance liability.
- Zone 1-2 (most of US east, EU west, China east) — Standard bracing OK
- Zone 3-4 (California, Japan, Türkiye, Chile, Indonesia) — Eurocode 8 / ASCE 7 ductile design required
- Permit jurisdictions — Stamped seismic calc by local engineer
- Insurance requirement — Some insurers mandate seismic certification
| If your operation needs... | Pick this configuration | Surface finish | Avoid |
|---|---|---|---|
| General manufacturing 1,500-2,000 kg pallets indoors | Heavy-Duty Selective 2T | Powder coat 80 μm | Standard selective (under-spec) |
| Engine blocks / transmission cases / 3,500-5,000 kg loads | Extra Heavy-Duty 5T | Powder coat 80 μm | Heavy-Duty 2T (under-spec) |
| Outdoor builder's yard / construction materials | Outdoor HDG 3T | HDG 80-120 μm | Powder coat (rusts outdoor) |
| California / Japan / Türkiye industrial plant | Seismic Zone 4 (3T) | Powder coat 80 μm + ductile | Standard bracing (code violation) |
| Frozen meat warehouse, heavy pallets at -25°C | Cold-Storage Heavy 2T | HDG + Q345B low-temp | Standard Q235B (brittle <0°C) |
| Chemical / paint / petroleum drum storage | Chemical & Drum 2T | Acid-resistant epoxy / 304 SS | Powder coat (acid pitting) |
| Marine / offshore / port-side | Marine HDG (custom) | HDG 120 μm + sealed plugs | Powder coat (salt corrosion) |
| Steel service centre / coil storage | Extra Heavy-Duty 5T + cradle | Powder coat 80 μm | Flat decking (coil rolls) |
Industrial Pallet Rack vs. Standard Selective · Drive-In · Cantilever · Stack Rack
Where industrial-grade racking wins, where alternatives win. Use this matrix to defend the spec premium internally — every row reflects what a real manufacturing plant engineer evaluates.
| Criteria | Industrial Heavy-Duty | Standard Selective | Drive-In Heavy-Duty | Cantilever Heavy | Stack Rack |
|---|---|---|---|---|---|
| Pallet load range | 1,500-5,000 kg | 800-1,500 kg | 1,000-2,000 kg | 500-3,000 kg/arm | 500-2,000 kg/unit |
| Upright wall thickness | 2.5-3.5 mm | 1.8-2.0 mm | 2.0-2.5 mm | 2.5-3.0 mm | 2.0-2.5 mm |
| Steel grade | Q345B / S355JR | Q235B | Q345B | Q345B / S355JR | Q235B / Q345B |
| Outdoor capable (HDG) | ★★★★★ | ★★★★★ | ★★★★★ | ★★★★★ | ★★★★★ |
| Seismic zone 3-4 ready | ★★★★★ | ★★★★★ | ★★★★★ | ★★★★★ | ★★★★★ (no anchor) |
| Impact survival (forklift) | ★★★★★ (400J) | ★★★★★ | ★★★★★ (high risk) | ★★★★★ | ★★★★★ |
| 24/7 cycle rated | ★★★★★ | ★★★★★ | ★★★★★ | ★★★★★ | ★★★★★ |
| Best cargo type | Engine blocks, drums, steel | Boxed goods, FMCG | Bulk single-SKU pallets | Pipe, lumber, profiles | Tires, fabric, seasonal |
| CapEx per pallet (USD) | $80-150 | $50-80 | $80-120 | $130-220 | $85-180 |
| Service life (yrs) | 20+ yrs | 15-20 yrs | 20 yrs | 20+ yrs | 10-15 yrs |
| Structural warranty | 10 yr + seismic | 10 yr | 10 yr | 10 yr | 3 yr |
⭐ AME Rack's Industrial-vs-Standard Verdict
Pick industrial-grade racking when pallets weigh 1,500+ kg, the warehouse runs 24/7, the environment is harsh (outdoor / chemical / cold / hot) or the operation sits in seismic zone 3-4. The 20-35% CapEx premium over standard selective is paid back 5-10× over by avoided rack collapse, production downtime and replacement cycles. Stay with standard selective when pallets are under 1,500 kg, environment is clean indoor, and SKU variety matters more than load capacity. Drive-in heavy-duty beats industrial selective for bulk single-SKU storage where density matters more than direct access. Cantilever heavy beats industrial selective for any cargo longer than 2.4m (pipe, lumber, profiles). Stack racks beat industrial selective for portable / rental / seasonal fleets where no installation is acceptable.
3 International Industrial Racking Projects by AME Rack
Real industrial customers, real KPIs. From a Malaysian automotive engine supplier to a Turkish steel service centre in a seismic zone and a Saudi petrochemical drum store — industrial-grade racking is the right spec for harsh environments where standard selective fails.
Plant stored cast engine blocks at roughly 3,000 kg per pallet. Existing standard selective racking (1,500 kg rated) had suffered repeated forklift-impact incidents over 18 months, including partial upright collapses that caused several days of unplanned production downtime. Insurance and internal safety review flagged the racking as under-spec.
160 pallet positions of Extra Heavy-Duty 3T Industrial Pallet Racking — 3.5 mm S355JR uprights + 200×100 mm box beams + 16 mm base plates + M20 chemical anchors + 1,000 mm HDG column protectors on every aisle-face upright. IATF 16949 audit-compliant documentation pack.
Zero rack-related incidents in the 24 months since install. IATF 16949 surveillance audit passed with zero findings on racking. Payback on the spec premium versus standard racking achieved within the first year. Customer placed a Year-2 expansion order for an adjacent bay.

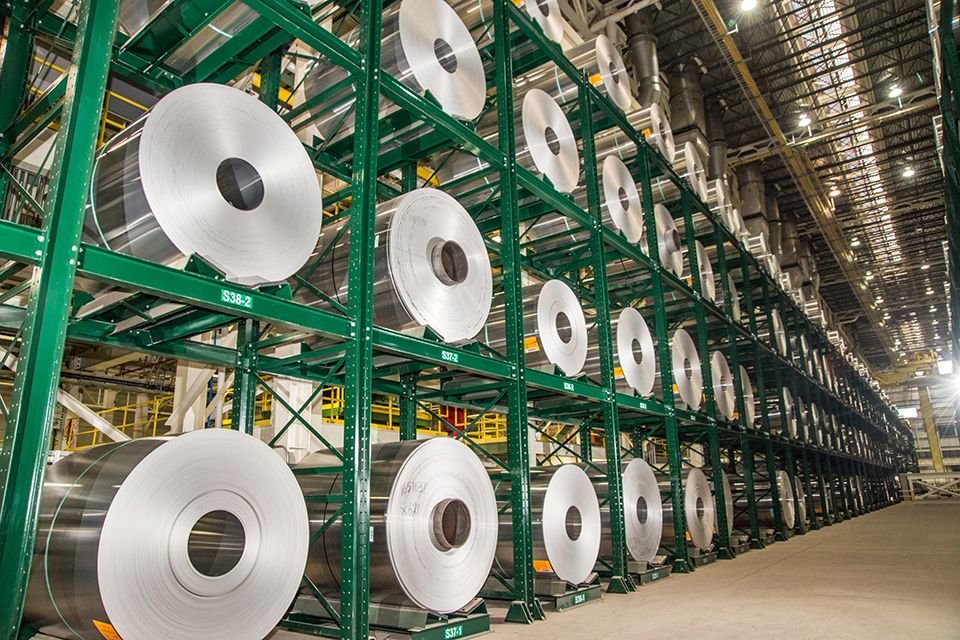

Steel service centre stored steel coils around 4,500 kg each on standard selective racking. A regional seismic event caused multiple rack runs to partially collapse, resulting in significant inventory damage and several weeks of operations halt. The insurer required a seismic-certified replacement before the site could re-open.
180 pallet positions of Seismic Zone 4 Industrial Pallet Racking — 3.0 mm S355JR ductile-design uprights + Eurocode 8 cross-bracing + M20 chemical anchors with epoxy grout + cradle decking for coils. Stamped seismic calculation by a chartered structural engineer.
Operations re-opened well ahead of the insurer's original estimate. Insurer reduced the premium on seismic-certified racking. Survived a subsequent regional aftershock with zero rack damage. Operator later added positions for a second bay to the same spec.
Petrochemical plant stored chemical drums (200 L each, mixed solvents and acids) on standard powder-coat racking. Acid vapour caused powder-coat pitting and structural corrosion within 18 months. The local regulator put the site on notice for shutdown unless the racking was upgraded to a spill-contained, corrosion-resistant specification.
120 pallet positions of Chemical & Drum Industrial Pallet Racking — acid-resistant epoxy 100 μm finish + secondary spill-containment trays at every level + 304 stainless anchor bolts + leak-detection grooved deck. Full SAFCO compliance documentation pack included.
SAFCO compliance achieved within the regulator's deadline. Zero chemical-vapour corrosion in the 36 months since install. Insurance premium reduced on the spill-tray containment upgrade. Plant approved a Year-2 expansion for a second drum-farm bay to the same spec.
7-Stage Industrial-Grade Manufacturing Pipeline
Every industrial rack we ship is built to the same FEA-verified standards as European brands — at 40–55% of EU FOB pricing. Mill-certified steel, robotic welding to EN 1090 EXC2, full-scale load testing and IATF 16949-audit-compliant documentation.
Mill-Certified Steel Inbound
Q345B / S355JR / S275JR structural steel from Baosteel, Shagang & Ansteel. Every coil arrives with mill test certificate (yield, elongation, chemistry, Charpy V-notch impact). AME QC re-tests random samples per ISO 6892 + ISO 148.
CNC Roll-Forming & Heavy Section Forming
Roll-forming line produces 2.5-3.5mm uprights to ±0.5mm tolerance. Heavy-section beams (200×100mm box) cold-rolled from steel sheet. Slot consistency to 1.0mm critical for repeatable beam height adjustment.
Robotic Welding (EN 1090 EXC2)
8-station Panasonic robotic MIG welder. ER70S-6 wire, full-penetration welds at every joint. Ultrasonic spot-check per ISO 17636 on every weld. Random samples destructive-tested monthly to verify EN 1090 EXC2 weld class.
FEA Validation & Load Testing
Each production batch sampled for full-scale load test: pull-test to ultimate failure, deflection-test at 1.5× rated load, fatigue-test to 4,000 cycles. Results compared with FEA prediction for design validation.
Surface Treatment
7-stage pre-treatment (degrease → phosphate → passivate → dry). Standard: powder coat 80 μm Akzo Nobel + 200°C cure. Outdoor: HDG 80-120 μm per ISO 1461. Chemical: acid-resistant epoxy 100 μm.
Quality Control & Documentation
Stamped FEA report by chartered engineer. Mill test certificates archived. Welding procedure specifications (WPS) per ISO 15614. Load notice plates printed and shipped with each rack run. IATF 16949 / ISO 9001 audit-compliant document pack.
Packaging & Container Loading
IPPC ISPM-15 wood pallets, edge guards, PE film wrap. Heavy components on shaped pallets with steel bracing. Container loaded per installation sequence — what installs first is unloaded first. Photo + video proof-of-loading.
How to Buy Industrial Pallet Racking — A 6-Point Checklist
Six things every plant engineer, project owner and procurement lead should validate before placing an industrial racking PO. These projects carry real safety and downtime risk — get the inputs right.
📋 1. Worst-Case Load Specification
- Heaviest pallet your operation will ever store (not average)
- Pallet dimensions (L × W × H, mm) and stringer condition
- Beam capacity per pair — must > 2× pallet weight (paired loading)
- Frame capacity = beam-pair × levels (verify against upright max)
- Confirm forklift impact load class per EN 15512 Annex B
🛡️ 2. Standards & Test Reports
- EN 15512 + FEM 10.2.02 compliance certificate
- FEM 9.831 / Eurocode 8 / ASCE 7 seismic calc (if zone 3-4)
- Mill test certificate (MTC) for steel (yield + chemistry + Charpy)
- EN 1090 EXC2 welding certificate
- ISO 1461 HDG coating certificate (if outdoor)
- IATF 16949 audit-compliant documentation (if auto industry)
🌡️ 3. Environment & Surface Finish
- Indoor / outdoor / cold-storage / chemical exposure spec
- Powder coat 80 μm (indoor +5-40°C) — most common
- HDG 80-120 μm per ISO 1461 (outdoor, cold, marine)
- Acid-resistant epoxy 100 μm (chemical / petrochemical)
- 304 stainless (pharma / food / extreme chemical)
- Specialty high-temp powder coat (foundry / hot industrial)
🌍 4. Seismic Zone & Permits
- Seismic zone classification per ASCE 7 / Eurocode 8 / GB 50011
- Stamped seismic calculation by chartered local engineer (zone 3-4)
- Building permit racking compliance check
- Insurance pre-approval (some insurers require seismic cert)
- Fire code clearance (sprinkler / flue space / fire-rated decking)
💰 5. Payment & Project Terms
- 30% T/T deposit + 70% before B/L (standard)
- L/C at sight ≥ USD 50,000
- Performance bond 5-10% for major projects (held 12 months)
- Installation supervision USD 280-350/day (engineer recommended)
- Damage warranty: photo evidence + 10-year structural cover
🤝 6. After-Sales & Inspection
- 10-year structural + seismic warranty (15 years HDG)
- Annual EN 15635 rack inspection (mandatory for commercial DCs)
- Spare parts stocked 15+ years (beams, uprights, anchors)
- Damage assessment service (photo evaluation)
- On-site engineer dispatch for major incidents
- Dedicated account manager via WhatsApp / Email / WeChat
Everything Plant Engineers, Industrial Buyers & Project Owners Ask About Industrial Pallet Racking
Real questions from manufacturing plant engineers, industrial DC project owners and procurement leads during 8+ years of industrial racking export projects. Bookmark this — it answers ~95% of pre-PO objections for industrial-grade applications.
Q01. What is the difference between standard selective and industrial pallet racking?
Standard selective: 1.8-2.0mm Q235B uprights, 800-1,500 kg per pallet, indoor +5-40°C only. Industrial pallet racking: 2.5-3.5mm Q345B / S355JR uprights, 1,500-5,000 kg per pallet, -30 to +60°C operating, HDG outdoor finish, impact-rated column protectors, seismic zone 3-4 certified. Industrial costs 20-35% more per pallet but lasts 20+ years vs 10-15 years for standard.
Q02. When should I specify industrial racking instead of standard selective?
Use industrial racking when ANY of these apply: pallets weigh 1,500+ kg, warehouse runs 24/7, environment is outdoor / cold / hot / chemical, operation sits in seismic zone 3-4, or rack failure would stop production (USD 8,000-40,000/hr downtime). Standard selective is fine for indoor clean warehouses with pallets under 1,500 kg.
Q03. What is the typical lead time?
25 days for standard heavy-duty (powder coat); 30 days for HDG outdoor; 35 days for seismic zone 3-4 with engineered cross-bracing; 35 days for chemical & drum acid-resistant epoxy. Express 18-day production possible for repeat customers with stock components.
Q04. What pallet load can industrial racking handle?
Standard heavy-duty: 1,500-2,000 kg per position. Extra heavy-duty: up to 5,000 kg per position with 3.5mm S355JR uprights + 200×100mm box beams. Custom engineered: up to 8,000 kg per position for foundry / steel coil applications. Always specify your worst-case pallet weight, never the average.
Q05. Is industrial racking seismic-zone certified?
Yes — Seismic Zone 4 configuration is FEA-verified to ASCE 7 / Eurocode 8 / GB 50011 with ductile cross-bracing and M20 chemical anchors with epoxy grout. For California / Japan / Türkiye / Chile / Indonesia projects we provide stamped seismic calculation by chartered structural engineer. Standard configurations are zone 1-2 rated (most of US east, EU west, China east).
Q06. Can industrial racking be used outdoors?
Yes — order the Outdoor HDG variant: hot-dip galvanized 80-120 μm per ISO 1461 + sealed cap plugs to prevent upright-pocket water intrusion + drainage holes in base. Operates -30 to +60°C, 15-year corrosion warranty. Survives 10+ years in coastal / marine / freeze-thaw climates.
Q07. What standards does AME Rack industrial racking comply with?
EN 15512 (European racking structure), FEM 10.2.02 (selective rack design), FEM 9.831 (seismic design), Eurocode 8 (seismic actions), ASCE 7 (US seismic), RMI MH16.1 (Americas), AS 4084 (Australia), EN 1090 EXC2 (steel welding), ISO 1461 (HDG), ISO 9001 / 14001 / IATF 16949 factory.
Q08. What is the impact-protection rating?
500-1,500mm HDG column protectors on every aisle-face upright. Engineered to absorb 400 J impact per EN 15512 Annex B (equivalent to a 2,000 kg forklift at 2 m/s) without damaging the rack column. Replaceable bolt-on design — swap a damaged protector in 10 minutes vs replacing a full upright.
Q09. How does industrial racking handle 24/7 production cycling?
Beam-to-upright connection is rated for repeated cyclic loading with fatigue safety factor 1.8 per EN 15512 dynamic load design. Tested 4,000+ load cycles per beam per year over 20-year service life. Standard selective racks use static-load-only safety factor — they fail prematurely under 24/7 cycling.
Q10. Can industrial racking handle chemical / acid exposure?
Yes — order the Chemical & Drum variant: acid-resistant epoxy coating 100 μm (resists most industrial acids and solvents) + secondary spill containment trays at every level + 304 stainless anchor bolts. For extreme chemical exposure (concentrated acids, halogenated solvents): full 304 stainless construction available at +120% cost premium.
Q11. How does AME Rack price compare to European brands?
Industrial racking is a steel-and-engineering-driven product — our FOB Shenzhen pricing typically lands at 40-55% of EU brand pricing (Mecalux / Constructor / Stow / SSI Schäfer), even after shipping and 5-10% import duty. We use the same Q345B / S355JR steel grades, same EN 15512 standards, same FEA validation methodology.
Q12. Does AME Rack provide installation supervision?
Yes — installation supervision available globally. USD 280-350/day per engineer + travel. For large industrial projects we deploy 2-4 supervisors leading local installer crews. Mandatory for seismic zone 3-4 projects (insurer requirement). Typical install: 3-8 weeks depending on project size and site complexity.
Q13. What rack inspection requirements apply?
EN 15635 mandates annual visual inspection for commercial warehouse racking, conducted by competent person (often a SARI-certified rack inspector). AME Rack provides post-install training; certified inspectors available locally in most markets. Reportable damage requires immediate offload and repair — we ship spare parts within 7-14 days globally.
Q14. What is the warranty?
10-year structural warranty on standard powder-coat industrial systems (uprights, beams, frames). 15-year warranty on HDG outdoor variants. 10-year + seismic certification on Seismic Zone 4 configurations. Covers manufacturing defects, weld failure, paint corrosion-through. Excludes user damage (forklift impact beyond 400 J, overload, chemical exposure outside rated environment).
Q15. What payment terms do you accept?
Standard: 30% T/T deposit + 70% before B/L. L/C at sight for orders ≥ USD 50,000. Performance bond 5-10% for major projects (held 12 months). After 3 successful industrial projects, repeat customers can negotiate OA 30-60 days subject to credit check. Major IATF 16949 customers often arrange escrow / inspection-based payment.
Get an Industrial Racking Quote + ROI in 48 Hours — From the Factory That Ships 65+ Countries
Send your plant spec (worst-case pallet weight / environment / seismic zone / quantity / destination port) — we reply within 48 hours with FOB pricing, FEA load report, IATF 16949 / IATF compliance pack and lead time. Free engineering review. Free seismic calculation. Free installation drawing pack.
📩 3 Ways to Start the Conversation
📧 Lily@amerack.com
💬 WhatsApp / Phone: +86 188 2453 7792
🏭 Dongguan, Guangdong, China · MON–SAT 09:00–18:00 (GMT+8)
