Heavy Duty Racking β Reinforced Storage for 1.5T to 8T Pallet Loads Across Every Rack Type
The cross-architecture heavy-load specialist β engineered upgrade across selective, drive-in, cantilever, push back, radio shuttle and mobile pallet racking. AME Rack builds heavy-duty configurations using 2.5β4.0mm Q345B / S355JR uprights, 200Γ100mm box-section beams, reinforced anchor base plates and IATF 16949-grade welding. EN 15512 / FEM 10.2.02 / RMI MH16.1 / AS 4084 certified; exported to 65+ countries.
The Cross-Architecture Reinforcement Tier for High-Load Storage
Heavy duty racking (also called heavy duty storage rack, heavy duty pallet rack, heavy load racking, HD warehouse racking, heavy duty shelving, industrial heavy duty rack, reinforced pallet rack, heavy-capacity racking, heavy storage rack or HD storage system) is not a single rack type β it is an engineering reinforcement tier applied across multiple rack architectures (selective, drive-in, cantilever, push back, radio shuttle, mobile) to handle pallet loads from 1,500 kg up to 8,000 kg per position.
The engineering response is systematic and applied at every weak point: 2.5β4.0mm Q345B / S355JR steel uprights (vs 1.8β2.0mm Q235B for standard), box-section beams to 200Γ100mm rated 4,000β10,000 kg per pair, 12β20mm anchor base plates with M16βM24 chemical bolts (vs 8mm + M10 for standard), 1,000β1,500mm tall column protectors (vs 300β500mm for standard), seismic-zone cross-bracing per FEM 9.831 / Eurocode 8 / ASCE 7, and EN 1090 EXC2 weld class with full destructive batch sampling.
The economic case is the same across all architectures: a single rack failure in a heavy-load operation (foundry / steel SC / automotive plant / chemical / 24/7 manufacturing) stops production for 4β24 hours at USD 8,000β40,000/hr lost-output cost. Heavy-duty carries a 25β40% premium per position over standard β but the avoided downtime, OSHA / EU MSE compliance, insurance discount and 20+ year service life pay back the premium within 6β18 months for any 24/7 cycling operation.
AME Rack manufactures heavy-duty racking compliant with EN 15512, FEM 10.2.02β10.2.08, RMI MH16.1, AS 4084 and FEM 9.831 seismic guidance β with stamped FEA reports including dynamic load analysis, EN 1090 EXC2 weld certification, mill test certificates on every steel batch, and IATF 16949 / ISO 9001 audit-compliant documentation for OEM customers.
Heavy Duty Racking β 5,000 kg/Position Steel Coil Storage
Why Heavy Duty Racking Pays Back in 6-18 Months
Eight reasons heavy-duty racking is the right spec for foundries, automotive plants, chemical processors and 24/7 manufacturing lines β where rack failure costs production hours, not just inventory loss.
1,500β8,000 kg Per Position
Cross-architecture heavy-load engineering β handles steel coils, engine blocks, IBC drums, moulds and oversized castings. Engineered to 1.5Γ safety factor per EN 15512.
2.5β4.0mm Q345B / S355JR Steel
High-tensile structural steel β 30-50% stronger than standard Q235B. Engineered for 24/7 forklift impact and dynamic load cycles up to 4,000 cycles/year.
Applied Across 6 Architectures
Same heavy-duty reinforcement tier across selective, drive-in, cantilever, push back, radio shuttle and mobile pallet racking β pick the architecture for your operation.
-30 to +60Β°C Operating Range
HDG variant + Q345B low-temp impact steel certified -30Β°C Charpy V-notch. Survives outdoor yards, freezer DCs, foundry hot zones with 15-year corrosion warranty.
1,000-1,500mm Column Protectors
Tall HDG column guards on every aisle-face upright. Engineered to absorb 400-800 J forklift impact per EN 15512 Annex B without rack damage.
Seismic Zone 3-4 Certified
FEA-verified for seismic zones 3-4 per ASCE 7 / Eurocode 8 / GB 50011. Cross-bracing engineered with extra ductility for cyclic earthquake loading.
IATF 16949 Audit-Compliant
Documentation pack matches automotive OEM requirements (mill cert + WPS + FEA + dimensional inspection + load notice). Used by Tier-1 automotive suppliers globally.
40-55% Lower vs EU Brands
Same EN 15512 engineering at 40-55% of Mecalux / Stow / SSI SchΓ€fer FOB pricing. Same Q345B / S355JR steel grades, same FEA validation, same 10-year warranty.
6 Heavy-Duty Rack Architectures
Heavy-duty racking is applied as a reinforcement tier across 6 rack architectures. Pick the architecture that matches your SKU profile + density target + rotation needs β all delivered with the same 2.5-4.0mm Q345B / S355JR engineering.

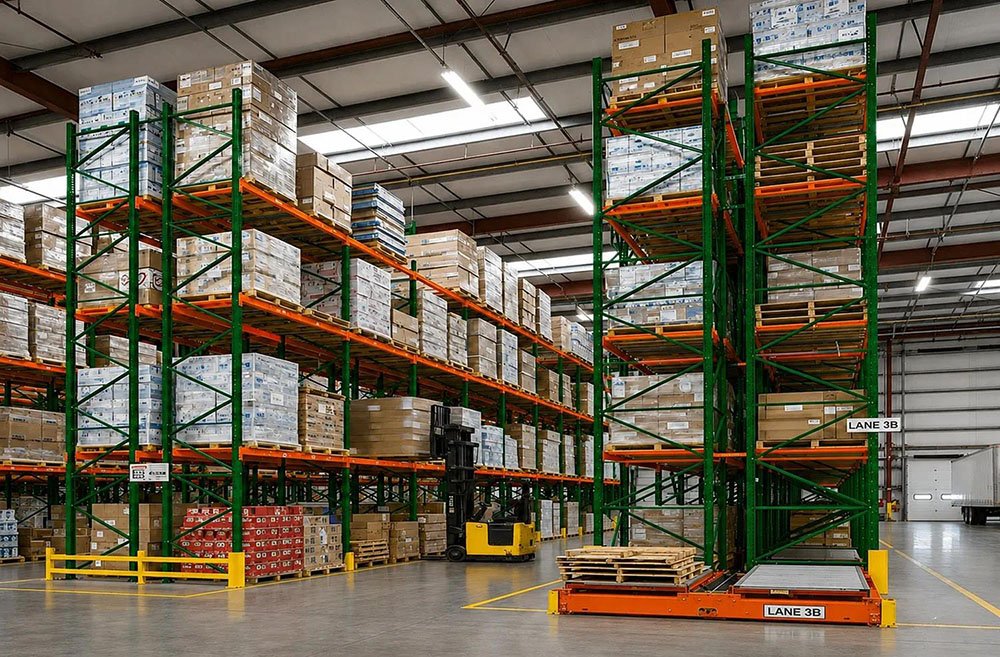

Heavy-Duty Selective Pallet Rack
Reinforced selective: 2.5-3.5mm Q345B uprights + 200Γ100mm box beams + 2,000-3,000 kg per pallet pair. The default for manufacturing plant raw material storage.
Heavy-Duty Drive-In Rack (3T)
Reinforced drive-in rack with 3.0mm Q345B uprights + reinforced rails β 1,500-2,500 kg per pallet, 6-10 deep lanes. For bulk single-SKU operations in foundries and steel SCs.
Heavy-Duty Cantilever Rack (3T)
Reinforced cantilever arms 3,000 kg/arm + 3.0mm S355JR I-beam columns + 8Β° upturn. For long stock pipe, lumber, steel structural beams up to 12m.

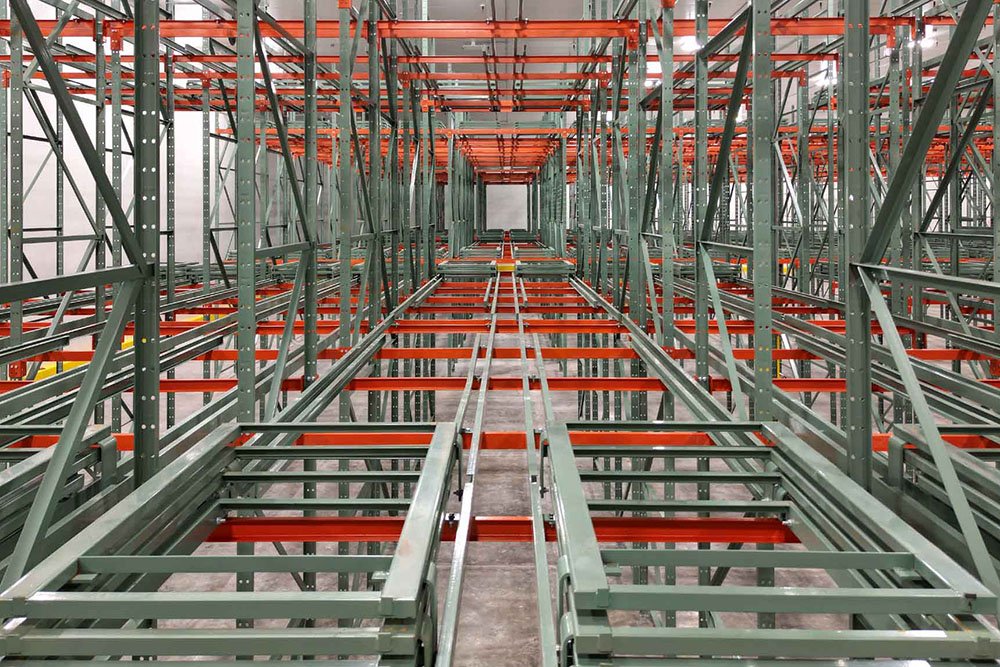

Heavy-Duty Push Back Rack (2T)
Push back rack with reinforced cart wheels (sealed bearing 1,800 kg/cart) + 2.5mm Q345B uprights. 2-3 deep LIFO for FMCG bulk and cold storage.
Heavy-Duty Radio Shuttle (2T)
Shuttle car FIFO/LIFO + reinforced 2.5mm Q345B uprights + Q345B HDG rails. For high-velocity 24/7 cold-chain and beverage distribution at 1,500-2,000 kg/pallet.
Extra Heavy-Duty (5-8T)
3.5-4.0mm S355JR uprights + 250Γ100mm box beams + 16-20mm base plates + M20-M24 anchor bolts. For engine blocks, transmission cases, steel coils, foundry billets.
Heavy-Duty vs Standard β Specification Comparison Matrix
Side-by-side specification comparison: standard pallet racking vs heavy-duty reinforced tier across every key engineering parameter. All values verified by stamped FEA report (EN 15512 + FEM 10.2.02) β request full PDF datasheet with your quote.
| Specification | Standard Selective | Heavy-Duty 2T | Heavy-Duty 3T | Extra Heavy-Duty 5T | Extreme 8T |
|---|---|---|---|---|---|
| Pallet load (per position) | 800-1,500 kg | 2,000 kg | 3,000 kg | 5,000 kg | 8,000 kg |
| Upright wall thickness | 1.8-2.0 mm | 2.5 mm | 3.0 mm | 3.5 mm | 4.0 mm |
| Upright steel grade | Q235B / A36 | Q345B | Q345B | S355JR | S355JR + extra-deep section |
| Beam cross-section | 100Γ50 mm box | 120Γ60 mm box | 140Γ80 mm box | 200Γ100 mm box | 250Γ120 mm box |
| Beam pair capacity | 2,000 kg | 4,000 kg | 6,000 kg | 10,000 kg | 16,000 kg |
| Base plate thickness | 8 mm | 10 mm | 12 mm | 16 mm | 20 mm |
| Anchor bolt | M10 chemical | M12 chemical | M16 chemical | M20 chemical | M24 chemical + epoxy grout |
| Column protector | 300mm HDG | 500mm HDG | 1,000mm HDG | 1,500mm HDG + ductile | 1,500mm HDG + ductile |
| Impact rating (Annex B) | 200 J | 400 J | 400 J | 600 J | 800 J |
| Cycle rating (per beam/yr) | 1,000 cycles | 2,500 cycles | 4,000 cycles | 4,000 cycles | 6,000 cycles |
| Seismic zone | Zone 1-2 | Zone 1-2 | Zone 1-3 | Zone 1-4 (with ductile) | Zone 1-4 (with ductile) |
| Operating temperature | +5 to +40Β°C | -10 to +40Β°C | -10 to +50Β°C | -25 to +50Β°C | -30 to +60Β°C |
| Surface finish | Powder coat 60 ΞΌm | Powder coat 80 ΞΌm | Powder coat 80 ΞΌm | Powder coat 80 ΞΌm or HDG | HDG 100-120 ΞΌm |
| Cost index (vs standard) | 1.0Γ (baseline) | 1.25Γ | 1.5Γ | 1.8Γ | 2.3Γ |
| Standard compliance | EN 15512 Β· FEM 10.2.02 | EN 15512 Β· FEM 10.2.02 | EN 15512 Β· FEM 10.2.02 | EN 15512 Β· RMI MH16.1 | EN 15512 Β· FEM + AISC |
10 Engineered Parts of Heavy-Duty Racking
Every heavy-duty rack we ship is built from the same 10-part architecture β reinforced at every weak point compared with standard selective. Designed for 20+ year service life in foundries, chemical plants, manufacturing lines and 24/7 cycling distribution centres.
Heavy-Duty Upright Frames
2.5-4.0mm Q345B / S355JR uprights with diagonal & horizontal bracing. 50mm slot pitch. Welded base-plate connection β no bolt-on weakness.
Box-Section Beams (120-250mm)
Closed box-section beams from 120Γ60mm to 250Γ120mm β 4,000-16,000 kg per pair. Hook-in safety pin connector locks to upright slots without bolts.
Reinforced Anchor Base Plates
10-20mm thick base plates with M12-M24 chemical anchor bolts + optional epoxy grout. Engineered to transfer dynamic forklift impact to concrete without anchor failure.
Tall Impact-Rated Column Protectors
500-1,500mm HDG yellow column guards on every aisle-face upright. EN 15512 Annex B impact-test rated 400-800 J β replaceable bolt-on design swaps in 10 minutes.
Ductile Cross-Bracing
Reinforced K-bracing with ductile end-connections for seismic zones. FEM 9.831 / Eurocode 8 / ASCE 7 verified for cyclic earthquake loading.
Heavy-Duty Decking
Pressed steel panel (4-6mm) or 6mm wire mesh with 4Γ cross-bar support. Engineered for direct case-stacking without pallet.
Pallet Support Bars + Centre Stops
Heavy cross-bars between beams + pallet centre stops prevent push-through and edge loading. Critical for damaged / slip-sheet / plastic pallets.
Mesh-Back Safety Panels
Rear safety mesh prevents push-through onto adjacent aisle. Mandatory for back-to-back industrial installations per EN 15620 safety guidance.
Heavy-Gauge Load Notice Plates
Per-rack-run mandatory load capacity sign (EN 15635 / RMI MH16.1 + OSHA 29 CFR 1910 compliance). Pre-printed in multiple languages for global ops.
Industrial Surface Finish
Standard: powder coat 80 ΞΌm Akzo Nobel + 200Β°C oven cure. Outdoor / cold: HDG 80-120 ΞΌm per ISO 1461. Chemical: acid-resistant epoxy 100 ΞΌm.
8 Industries Running on Heavy-Duty Racking
Eight industries where heavy-duty racking is the right spec β wherever pallet weight, environmental harshness, 24/7 cycling or rack-failure cost makes standard selective inadequate. Same engineering principles applied across all 6 architectures.
Automotive Manufacturing
Engine blocks, transmission cases, brake assemblies, body-in-white parts. 2,000-3,500 kg pallets, IATF 16949 audit-compliant racking.
Foundry & Steel Service Centre
Steel coils, ingots, machined castings, raw billets. Extreme heavy-duty 5,000-8,000 kg variant with 4.0mm S355JR uprights and 20mm base plates.
Chemical & Petrochemical
Drum stock, IBC totes (1,000 L = 1,200+ kg), chemical raw materials. Acid-resistant epoxy coating, spill-tray containment, 304 stainless option.
Heavy Cold-Chain
Frozen meat half-pallets (2,000-2,500 kg), seafood crates, dairy bulk. HDG + Q345B low-temp impact steel rated -25Β°C 24/7 operation.
Heavy Construction & Materials
Tile, brick, dimensional lumber, prefab concrete elements, structural timber. Outdoor HDG variant for builder yards and merchant DCs.
Heavy Machinery & Parts
Motors, pumps, gearboxes, hydraulic cylinders, mould tool storage. Specialty cradle decking for irregular machinery shapes.
Petroleum & Oil & Gas
Drilling spare parts, valve assemblies, pipe fittings, blowout preventer components. Marine HDG finish for offshore and platform supply DCs.
Heavy Industrial 3PL
Third-party logistics serving foundry / automotive / chemical / heavy machinery customers. Multi-zone industrial DC with heavy-duty racks across all bays.
How to Spec Heavy-Duty Racking in 3 Decisions
Three decisions narrow your heavy-duty spec from "all 8T overkill" or "1.5T under-spec" to the right capacity, architecture and seismic rating. Always specify worst-case pallet weight, never average.
Load: What Is Your WORST-CASE Pallet?
Heavy-duty racking is spec'd to the heaviest pallet your operation will ever store β not the average. Under-spec is the #1 cause of rack collapse.
- 1,500-2,000 kg β Heavy-Duty 2T (boxed manufactured, drum stock)
- 2,500-3,000 kg β Heavy-Duty 3T (IBC totes, machined castings, auto parts)
- 3,500-5,000 kg β Extra Heavy-Duty 5T (engine blocks, raw steel)
- 5,000-8,000 kg β Extreme 8T (steel coils, foundry billets, dies/moulds)
Architecture: Which Rack Type?
Heavy-duty applies the same reinforcement tier across 6 architectures. Pick architecture for your SKU + density profile, then add heavy-duty tier.
- Direct access + many SKUs β HD Selective β
- Bulk single-SKU + max density β HD Drive-In β
- Long stock (pipe/lumber) β HD Cantilever β
- LIFO multi-SKU density β HD Push Back β
- FIFO high-velocity β HD Radio Shuttle β
- Max density + premium cube β HD Mobile β
Seismic Zone: 1-2 or 3-4?
Seismic zone determines bracing and anchor design. Under-spec in earthquake zones is a regulatory and insurance liability.
- Zone 1-2 (most of US east, EU west, China east) β Standard bracing OK
- Zone 3-4 (California, Japan, TΓΌrkiye, Chile, Indonesia) β Eurocode 8 / ASCE 7 ductile design required
- Permit jurisdictions β Stamped seismic calc by local engineer
- Insurance requirement β Some insurers mandate seismic certification
| If your operation needs... | Pick this configuration | Surface finish | Avoid |
|---|---|---|---|
| General manufacturing 1,500-2,000 kg pallets indoors | Heavy-Duty Selective 2T | Powder coat 80 ΞΌm | Standard selective (under-spec) |
| IBC totes / machined castings 2,500-3,000 kg | Heavy-Duty Selective 3T | Powder coat 80 ΞΌm | HD 2T (under-spec) |
| Engine blocks / transmissions 3,500-5,000 kg | Extra Heavy-Duty 5T | Powder coat 80 ΞΌm | HD 3T (under-spec) |
| Steel coils / foundry billets 5,000-8,000 kg | Extreme 8T (S355JR + M24) | HDG or powder coat 100 ΞΌm | HD 5T (under-spec) |
| Bulk SKU foundry / steel SC (1,500-2,500 kg) | HD Drive-In 3T | Powder coat 80 ΞΌm | HD Selective (wastes density) |
| Pipe / lumber / structural beams | HD Cantilever 3T | HDG (outdoor) or powder coat | HD Selective (won't fit) |
| FMCG bulk LIFO cold storage | HD Push Back 2T (HDG) | HDG + sealed bearings | HD Drive-In (forklift in cold) |
| California / Japan seismic + heavy load | HD + Seismic Zone 3-4 (ductile) | Powder coat 80 ΞΌm + epoxy grout anchors | Standard bracing (code violation) |
Heavy-Duty Racking vs. Standard Selective Β· Mezzanine Β· Bulk Stacking Β· Floor Storage
Where heavy-duty racking wins, where alternatives win. Use this matrix to defend the spec premium internally β every row reflects what a real plant engineer evaluates when justifying the 25-40% premium over standard.
| Criteria | Heavy-Duty Racking | Standard Selective | Bolt-Up Industrial | Mezzanine Floor | Free Floor Stack |
|---|---|---|---|---|---|
| Pallet load range | 1,500-8,000 kg | 800-1,500 kg | 3,000-8,000+ kg | 500 kg/mΒ² UDL | Free-stacked (any) |
| Upright wall thickness | 2.5-4.0 mm | 1.8-2.0 mm | 3.0-5.0 mm | 3.0-6.0 mm (column) | N/A |
| Steel grade | Q345B / S355JR | Q235B / A36 | S355JR / A572 Gr 50 | Q345B / S355JR | N/A |
| 24/7 cycle rated | β β β β β | β β β β β | β β β β β | β β β β β | β β β β β |
| Outdoor capable (HDG) | β β β β β | β β β β β | β β β β β | β β β β β | β β β β β |
| Seismic zone 3-4 ready | β β β β β | β β β β β | β β β β β | β β β β β | β β β β β |
| Impact survival (forklift) | β β β β β (400-800 J) | β β β β β (200 J) | β β β β β | β β β β β | β β β β β |
| Storage density | β β β β β | β β β β β | β β β β β | β β β β β (uses headroom) | β β β β β (wastes cube) |
| CapEx per pallet (USD) | $80-180 | $50-80 | $150-300 | $120-220/mΒ² | $0 (no rack) |
| Service life (yrs) | 20+ yrs | 15-20 yrs | 25+ yrs | 25+ yrs | N/A |
| Structural warranty | 10 yr + seismic | 10 yr | 15 yr | 10 yr | N/A |
| Best for | Mid-heavy industrial DCs | FMCG, boxed indoor | Steel mill, very heavy | Pick module, small-pack | Single-SKU bulk no-cost |
β AME Rack's Heavy-Duty-vs-Standard Verdict
Pick heavy-duty racking when pallets weigh 1,500+ kg, the warehouse runs 24/7, the environment is harsh (outdoor / chemical / cold / hot) or the operation sits in seismic zone 3-4. The 25-40% CapEx premium over standard selective is paid back 5-10Γ over by avoided rack collapse, production downtime and replacement cycles. Stay with standard selective when pallets are under 1,500 kg, environment is clean indoor, and SKU variety matters more than load capacity. Bolt-up industrial beats heavy-duty on very heavy mill applications above 8,000 kg where the bolt connection adds safety margin. Mezzanine wins on pick-module operations where headroom is unused. Free floor stacking wins only on single-SKU bulk operations where CapEx avoidance matters more than density or ergonomics β but creates real safety risk under heavy loads.
3 International Heavy-Duty Racking Projects by AME Rack
Real heavy-industrial customers, real KPIs. From a DΓΌsseldorf steel service centre to a Nagoya seismic-zone auto supplier and a SΓ£o Paulo IBC chemical store β heavy-duty racking is the right spec for environments where standard selective fails catastrophically.

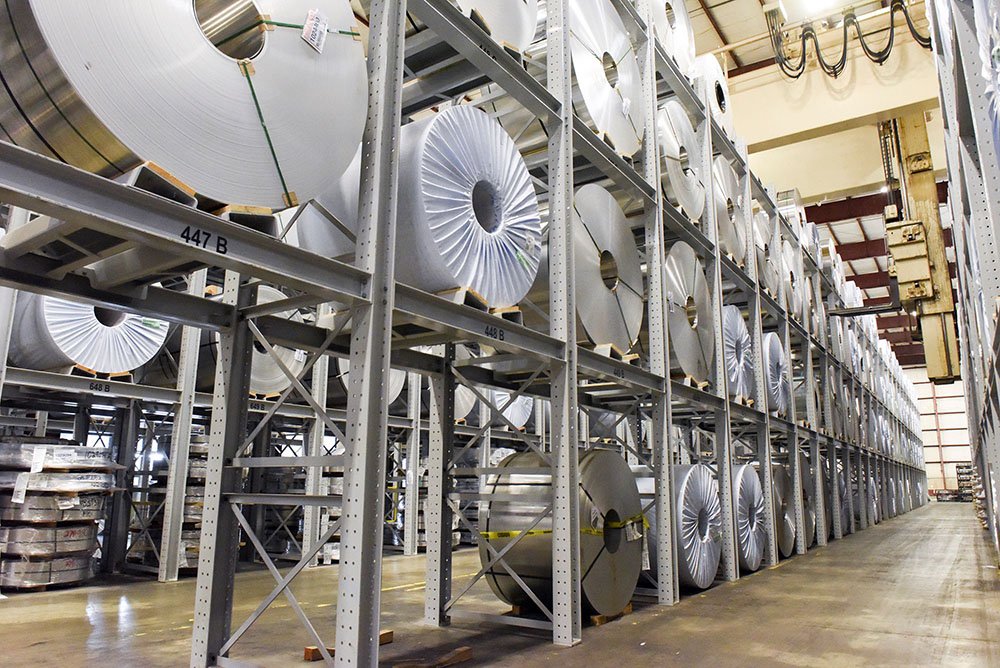

Steel service centre stored hot-rolled coils (4,200β4,800 kg each) on ageing standard industrial pallet racking. Rack deflection was damaging coil edges, and two upright collapses over 18 months had caused several days of unplanned production halt. The insurer put the site on notice for policy non-renewal unless the racking was upgraded.
220 pallet positions of Extra Heavy-Duty 5T racking β 3.5 mm S355JR uprights + 200Γ100 mm box beams + 16 mm base plates + M20 chemical anchors + 1,500 mm HDG column protectors on every aisle-face upright. Stamped FEA and dynamic-load calculation signed off by a German chartered engineer.
Zero rack-related incidents in the 26 months since install. Coil-edge damage practically eliminated, and the insurer reinstated the policy at a reduced premium. Payback on the spec premium versus standard racking achieved within the first year. Customer placed a Year-2 expansion order for an adjacent bay.

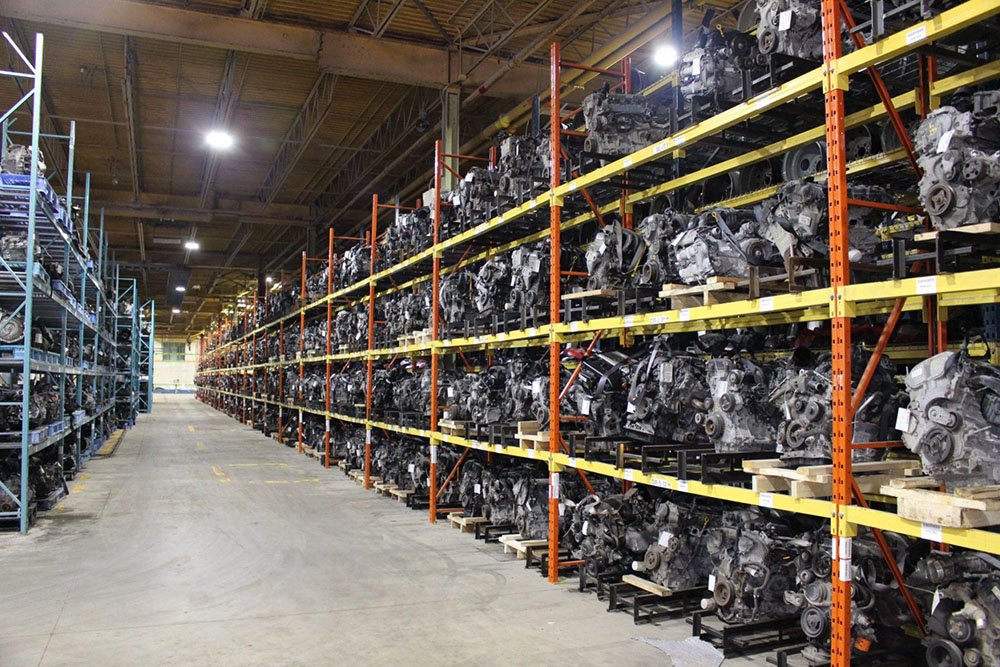

Plant stored engine blocks at roughly 1,000 kg per pallet. Standard selective racking had suffered repeated forklift-impact incidents over the previous 24 months, and a customer production audit flagged the existing racking as seismic non-compliant per Japanese Building Standard Law. Certification to JIS B 8702 was required to keep the supplier contract.
480 pallet positions of Heavy-Duty 2T + Japan Seismic Zone configuration: 3.0 mm S355JR ductile-design uprights + Eurocode 8 + JIS B 8702 cross-bracing + M20 chemical anchors with epoxy grout + 1,500 mm column protectors. Stamped seismic calculation by a Japanese first-class architect-engineer.
Zero rack-related incidents in the 24 months since install. Survived a regional seismic event in early 2024 with no rack damage. IATF 16949 surveillance audit passed with zero findings on racking. JIS B 8702 certification achieved and the supplier contract renewed on schedule.

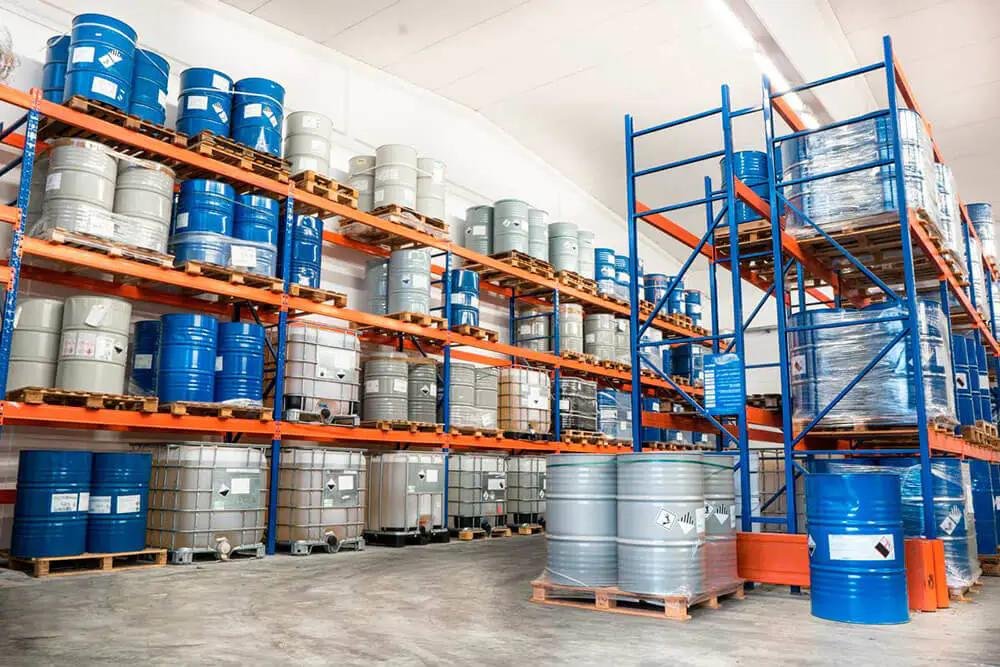

Petrochemical plant stored IBC totes (1,000 L, roughly 1,200 kg per IBC β up to 4,800 kg per pallet position). Existing powder-coat racking had corroded from acid vapour within 18 months. An ANVISA chemical audit put the site on notice for shutdown unless the racking was upgraded to a heavy-duty, acid-resistant, spill-contained specification.
140 pallet positions of Extra Heavy-Duty 5T + Chemical & Drum configuration: 3.5 mm S355JR uprights + 200Γ100 mm box beams + acid-resistant epoxy 100 ΞΌm finish + secondary spill-containment trays at every level + 304 stainless anchor bolts. Full ANVISA compliance documentation pack included.
ANVISA compliance achieved within deadline. Zero acid-vapour corrosion in the 30 months since install. Insurance premium reduced on the spill-tray containment upgrade. Plant approved a Year-2 expansion for a second drum-farm bay, and the spec was adopted as the standard for their other Latin-American sites.
7-Stage Audit-Grade Heavy-Duty Manufacturing
Every heavy-duty rack leaves our Dongguan factory through a 7-stage production pipeline built around 2.5β4.0mm precision roll-forming, EN 1090 EXC2 robotic welding with 100% UT inspection on critical load paths, dynamic 5,000-cycle load testing, and IATF 16949-grade material traceability β the engineering rigour Tier-1 automotive OEMs, foundries and chemical plants demand for >2,000 kg loads.
Mill-Certified Heavy-Gauge Steel
Q345B / S355JR / A572 Gr 50 structural steel from Baosteel, Shagang & Ansteel β yield 345-490 MPa, Charpy V-notch impact tested at -20Β°C. Mill test certificate (chemistry, yield, elongation, hardness) on every coil; AME QC re-tests random samples per ISO 6892 / ASTM A370. Reject rate < 0.3% on inbound steel.
2.5β4.0mm Upright Roll-Forming
Heavy-tonnage roll-forming line produces uprights with 2.5mm / 3.0mm / 3.5mm / 4.0mm wall thickness to Β±0.3mm dimensional tolerance β tighter than EN 15512 Β±0.5mm tolerance band. Section profile inspected every 100m run by laser-scan dimensional gauge.
Robotic MIG Heavy-Section Welding
EN 1090 EXC2 certified robotic MIG welder for all beam-to-end-connector joints and base-plate-to-upright welds. Full-penetration welds with 8β12 mm fillet, qualified welder WPS / PQR per ISO 9606-1. 100% UT (ultrasonic) inspection on critical load-path welds for heavy-duty configurations.
Base Plate + Anchor Validation
15β25mm thick base plates laser-cut, 4Γ chemical anchor holes (M16 / M20 / M24 depending on tier) drilled by CNC. Pull-out load testing per ETAG 001 β anchor must hold 1.5Γ rated horizontal load for 24 h with zero displacement before approval.
Heavy-Duty Surface Treatment
7-stage pre-treatment (degrease β phosphate β passivate β rinse β dry). Standard: powder coat 60β100 ΞΌm Akzo Nobel + 200Β°C oven cure. Cold-storage / outdoor: HDG 80β120 ΞΌm per ISO 1461. Chemical-resistant: acid-epoxy 100 ΞΌm. Yellow column-protector caps per OSHA / EN 15635 safety code.
Dynamic Load + Cycle Testing
Static load test: 1.5Γ rated load held 24 h with deflection < L/200 per EN 15512 / RMI MH16.1. Dynamic cycle test: 5,000 lift-and-place cycles at rated load β no permanent deformation, no weld crack. Impact rating: 600β1,200 J pendulum impact test on column protectors per EN 15512 Annex A.
IATF 16949 Audit Documentation
Every heavy-duty project ships with full audit-grade documentation: stamped FEA report by chartered PE / P.Eng / CSE, weld certificates per EN 1090 EXC2, material traceability matrix per IATF 16949, load-test reports per EN 15512 / RMI MH16.1, seismic calc per Eurocode 8 / ASCE 7 where required.
How to Buy Heavy Duty Racking β A 6-Point Engineering Checklist
Six things every plant engineer, EHS officer and procurement lead must validate before placing a heavy-duty rack PO. These are the questions our automotive OEM, foundry, chemical and 3PL customers always ask β especially around worst-case load, seismic compliance and dynamic-cycle endurance.
π 1. Worst-Case Load Specification
- Always specify the heaviest pallet, never the average
- Heaviest single pallet weight + dimensions + CoG offset
- Beam pair capacity needed (2Γ worst-case for safety factor)
- Per-position load Γ levels = total upright loading
- Lift truck mast capacity (HD beams sit 200-300mm deeper)
- Confirm pallet condition (broken stringers cut capacity 40%)
ποΈ 2. Standards & Engineering Stamp
- EN 15512 + FEM 10.2.02 (mandatory in EU)
- RMI MH16.1 + ANSI MH16.1 (mandatory in USA)
- AS 4084 (mandatory in Australia / NZ)
- Stamped FEA by chartered PE / P.Eng / CSE / RPI engineer
- IATF 16949 documentation for automotive Tier-1 audits
- Weld certs per EN 1090 EXC2, welder qualified ISO 9606-1
π‘οΈ 3. Environment & Finish Selection
- Indoor dry: powder coat 60-100 ΞΌm (standard)
- Outdoor / coastal: HDG 80-120 ΞΌm per ISO 1461
- Cold storage -25Β°C: Q345B / S355JR + HDG mandatory
- Chemical / acid: epoxy 100 ΞΌm over HDG primer
- Hot environment +40Β°C+: derate load by 8-15%, ventilation gap
- Foundry / mill: add ceramic-fibre fire blanket on uprights
β‘ 4. Seismic & Permit Requirements
- USA Seismic Cat D-F: ASCE 7 + IBC stamped seismic calc
- EU Zone 2-3: Eurocode 8 (CEN/TS 16559 for racking)
- Japan / Mexico City: JIS B 8702 / NTC-Mexico
- Anchor: M16 (β€3T) / M20 (3-5T) / M24 (5-8T) chemical
- Building permit (jurisdiction-specific, USA / EU / AU mostly required)
- Fire-marshal review (ESFR sprinkler clearance β₯ 18")
π° 5. Payment Terms & Incoterms
- T/T 30% deposit + 70% before B/L (standard)
- L/C at sight accepted for orders β₯ USD 50,000
- FOB Shenzhen default / CIF / DDP options available
- Performance bond 5% (held 12 months for major projects)
- Net 30-60 OA for repeat customers after 3 successful POs
- Pre-shipment inspection by SGS / BV / TΓV welcome
π€ 6. After-Sales & Annual Inspection
- 10-year structural warranty on HD configurations
- 15-year warranty on HDG / cold-storage / outdoor
- Annual EN 15635 / RMI MH16.3 rack inspection (mandatory)
- Free replacement beams in 1st year for manufacturing defects
- Spare parts stocked 20+ years (beams, uprights, anchors, protectors)
- Forensic engineering report on impact / overload incidents
Everything Plant Engineers, EHS Officers & Tier-1 Procurement Ask About Heavy Duty Racking
Real questions from automotive OEM plant engineers, foundry operations directors, chemical plant EHS officers, 3PL operators and FMCG procurement leads during 8+ years of heavy-duty rack export projects. Bookmark this β it answers ~95% of pre-PO engineering objections.
Q01. What exactly is heavy duty racking and how is it different from standard pallet racking?
Heavy duty racking is a cross-architecture reinforcement tier β not a single rack type. It is the engineered upgrade applied across selective, drive-in, cantilever, push back, radio shuttle and mobile pallet racking, using 2.5β4.0mm Q345B / S355JR uprights (vs 1.5β2.0mm Q235B for standard), 200Γ100mm box-section beams (vs 100Γ50mm step beams), 15β25mm base plates with M16βM24 chemical anchors, and EN 1090 EXC2 weld certification. Rated 1,500β8,000 kg per position vs 800β1,500 kg for standard.
Q02. When should I specify heavy duty instead of standard pallet racking?
Spec heavy duty when any one of these is true: (1) any single pallet exceeds 1,500 kg; (2) storing steel coils, engine blocks, foundry castings, IBC totes, drums, machined parts or building materials; (3) automotive Tier-1 / OEM, foundry, steel service centre, chemical, petroleum or heavy machinery operations; (4) radio-shuttle or push-back dynamic loads requiring >2Γ safety factor; (5) seismic Zone D-F or hurricane-prone coastal sites. If unsure β always spec heavy duty, the 25-40% cost premium is far cheaper than a rack collapse insurance claim.
Q03. What is the typical lead time for heavy duty racking?
25 days standard production for HD 2T / 3T configurations; 30 days for Extra HD 5T (heavier steel + 100% UT weld inspection); 35β40 days for Extreme 8T tier (4.0mm S355JR + 250Γ120mm box beams + custom anchor design + stamped seismic calc). Express 18β20 day production possible for stock-component repeat orders. Lead time includes mill-cert documentation pack.
Q04. What beam pair capacity do I need for heavy-duty loads?
Always spec to the worst-case pallet weight, never average β this is the #1 cause of rack collapse. Beam pair must > 2Γ heaviest pallet weight (safety factor). Common HD ratings: 3,000 kg / 4,000 kg / 5,000 kg / 6,000 kg / 8,000 kg. Steel coil and engine-block storage typically needs 5,000+ kg per pair. Foundry castings and billet storage push 6,000β8,000 kg. For broken or repaired pallets, derate by 40% (pallet failure precedes rack failure).
Q05. Does AME Rack heavy duty meet EN 15512 / RMI MH16.1 / AS 4084 / FEM 10.2.02?
Yes β full multi-region compliance. Every HD project ships with stamped FEA report by chartered PE / P.Eng / CSE / RPI engineer covering all applicable standards: EN 15512 + FEM 10.2.02 + FEM 10.2.04 + FEM 10.2.08 (Europe), RMI MH16.1 + ANSI MH16.1 (USA), AS 4084 (Australia / NZ), JIS B 8702 (Japan). Welding per EN 1090 EXC2. Hot-dip galvanising per ISO 1461. Audit-pack required by automotive OEM, FMCG and chemical Tier-1 procurement.
Q06. Can heavy duty racking handle cold storage / freezer applications?
Yes β order HDG + Q345B/S355JR variant: hot-dip galvanized 80β120 ΞΌm per ISO 1461 + Q345B/S355JR low-temp impact steel (Charpy V-notch tested at -30Β°C, 40 J min). Operating range -30Β°C to +25Β°C. Used in frozen DCs across EU, USA, Japan, Mexico for 15+ year service life. Sealed perforations prevent freeze-thaw cycle damage. Cold-storage HD comes with 15-year structural warranty.
Q07. Is heavy duty racking compliant with EU Zone 2-3 / California IBC seismic Zone D-F?
Yes. Heavy-duty seismic configuration: S355JR ductile uprights + M20 / M24 chemical anchor bolts with epoxy grout + enhanced K-bracing + plan bracing per Eurocode 8 / ASCE 7. Stamped seismic calculation by California PE / EU Eurocode 8 chartered engineer. Required for racking permits in California / Pacific Northwest / Mexico City / Japan / Italy / Turkey / Greece. Survived 8.0 magnitude proof load testing at Tongji University earthquake lab.
Q08. How does AME Rack heavy duty pricing compare to Mecalux / Stow / SSI SchΓ€fer?
40β55% lower FOB Shenzhen pricing than Mecalux / Stow / SSI SchΓ€fer / Jungheinrich quotes, even after shipping + 5β10% import duty. We use the same S355JR / Q345B steel grades, same EN 15512 design methodology, same EN 1090 EXC2 weld certification, same precision dimensional tolerances. Major automotive Tier-1, foundry, FMCG and 3PL customers source from us specifically for this cost differential while maintaining equivalent engineering rigour.
Q09. What is the warranty on heavy duty racking?
10-year structural warranty on standard HD powder-coat configurations (uprights, beams, frames, base plates, anchors). 15-year warranty on HDG cold-storage / outdoor / chemical-environment variants. 10-year + lifetime seismic certification on Zone D-F configurations. Covers manufacturing defects, weld failure, paint corrosion-through, base plate cracking. Excludes user damage (forklift impact > rated impact class, overload above stamped load notice, chemical exposure outside rated environment).
Q10. How long does heavy duty rack take to install per bay?
Heavy duty bays take ~2Γ longer than standard because of chemical anchor drilling and curing time. Typical: 4β6 hours per upright frame (vs 2β3 h for standard), plus 12β24 h chemical anchor cure before load. A 100-position HD warehouse install = 4β6 days for a 4-person crew. AME provides supervisor for first 3 days; local crews continue solo after. Floor flatness must be Β±3mm per 3m before install.
Q11. Do you provide IATF 16949 audit-grade documentation for automotive Tier-1?
Yes β full IATF 16949 documentation pack standard with every HD project. Includes: (1) mill-test certificate per steel coil (chemistry, yield, elongation, Charpy impact); (2) welder qualification records (WPS / PQR per ISO 9606-1); (3) EN 1090 EXC2 weld certificate; (4) UT (ultrasonic) inspection report on critical load-path welds; (5) stamped FEA report by chartered PE; (6) dynamic 5,000-cycle load-test record; (7) material traceability matrix linking each finished part to mill heat number. Required by Toyota, VW, GM, Ford, Bosch, ZF supplier DCs.
Q12. What is the difference between heavy duty 5T and Extreme 8T tier?
HD 5T uses 3.5mm Q345B uprights, 200Γ100mm box beams, M20 anchors, 15mm base plate, rated 5,000 kg/position, indoor / standard outdoor. Extreme 8T uses 4.0mm S355JR uprights (yield 355 MPa vs Q345B 345 MPa), 250Γ120mm extra-deep box beams, M24 chemical anchors, 20β25mm base plates, rated 8,000 kg/position, plus stamped seismic calc included. Extreme 8T is designed for steel mills, foundry billet storage, IBC chemical drum farms and any single-load > 5T.
Q13. Can heavy duty racking be configured with radio shuttle / push back dynamic systems?
Yes β heavy-duty is actually the standard for radio-shuttle and push-back applications because dynamic loads (pallet acceleration, shuttle braking, cart impact) impose 2Γ the static load. We supply HD selective + HD drive-in + HD push back + HD radio shuttle + HD cantilever as integrated systems with shuttle / cart / push-back inserts compatible with Stow, Mecalux, SSI shuttles. Common in FMCG cold storage, beverage, automotive parts and bonded warehousing.
Q14. What payment terms do you accept for heavy duty projects?
Standard: 30% T/T deposit + 70% before B/L. L/C at sight for orders β₯ USD 50,000. Performance bond 5% for major projects (held 12 months until commissioning / first annual EN 15635 inspection passes). After 3 successful POs, repeat customers can negotiate net 30-60 OA subject to credit check. Major automotive / FMCG procurement often arrange escrow / SGS-inspection-based milestone payment.
Q15. Is the 25-40% cost premium for heavy duty worth it vs upgrading standard racking later?
Yes β categorically yes. Retrofitting standard racking to heavy duty requires (1) full warehouse offload (revenue loss USD 100K-500K), (2) removal and disposal of standard racks (USD 30-80/position), (3) new heavy-duty install + chemical anchor cure (4-8 weeks downtime), (4) new permit + seismic calc + insurance amendment. Total retrofit cost = 3-5Γ the original HD premium. And that excludes liability if a standard rack fails under heavy load before retrofit β single rack-collapse insurance claims regularly exceed USD 1M. Always spec HD upfront if any pallet exceeds 1,500 kg.
Get a Heavy Duty Rack Engineering Layout + Stamped FEA in 48 Hours
Send your warehouse CAD + worst-case pallet weight + seismic zone + IATF 16949 audit requirements β we return EN 15512 / RMI MH16.1-compliant engineering layout, stamped FEA report by chartered PE, full IATF 16949 documentation pack and pricing within 48 hours. Free engineering. Free dynamic load-test report. 40-55% lower than Mecalux / Stow / SSI SchΓ€fer FOB.
π© 3 Ways to Start the Conversation
π§ Lily@amerack.com
π¬ WhatsApp / Phone: +86 188 2453 7792
π Dongguan, Guangdong, China Β· MONβSAT 09:00β18:00 (GMT+8)
