Cantilever Lumber Racks — Heavy-Duty & HDG Outdoor Storage for Lumber, Pipe & Building Materials
The purpose-built racking architecture for lumber yards, sawmills, plywood distributors, builder's merchants, pipe yards and structural-steel suppliers. Open-front cantilever arms (no aisle-face obstruction) handle 8-foot to 24-foot dimensional lumber, plywood sheets, dimensional timber, structural beams, PVC pipe and steel tube. AME Rack manufactures HDG outdoor-rated cantilever lumber racks compliant with EN 15512 / RMI MH16.3 / AS 4084 — exported to 65+ countries.
The Open-Front Arm Architecture Built for Lumber Yards & Builders
Cantilever lumber racks (also called lumber racking, lumber storage rack, timber cantilever rack, pipe cantilever rack, cantilever lumber storage, lumber yard racking, building material rack, plywood storage rack, long goods cantilever rack or cantilever pipe rack) are an open-front racking architecture purpose-built for long stock — the kind of cargo where pallet racking simply cannot work because the load is longer than 2.4m and won't fit between standard upright pairs.
Each rack consists of vertical columns (single- or double-sided) with horizontal cantilever arms bolted into the column at adjustable heights (typically 200–500mm pitch). The arms extend outward like tree branches, supporting bundles of dimensional lumber, dimensional timber, plywood sheets, drywall sheets, PVC pipe, steel tube, structural angles, glulam beams and prefab building components. The aisle face is completely open — a forklift loads / picks the entire bundle in one motion without weaving between uprights.
For lumber yards specifically, the design choices that matter are: HDG outdoor finish (lumber yards live in rain and snow); arm tip caps (prevent splinters cutting through forklift tires); upturned-end arms (3-5° upward tilt to prevent bundle roll-off); open-base columns (forklift forks can drive over the base — critical for handling 6m+ lumber); and guide rails along the base (keep stacks centered, prevent column impact damage).
AME Rack manufactures cantilever lumber racks compliant with EN 15512, RMI MH16.3 (cantilever-specific), AS 4084, ISO 1461 (HDG) and FEM 9.831 seismic guidance — with stamped FEA reports by chartered engineer, full HDG coating certificates, and free CAD layouts for lumber yard expansion projects.
HDG Cantilever Lumber Rack — Outdoor Yard
Why Cantilever Lumber Racks Win in Every Lumber Yard
Eight reasons cantilever lumber racks are the universal storage solution for lumber yards, sawmills, plywood distributors, builder's merchants and pipe yards — wherever pallet racking fails because the cargo is longer than 2.4m.
Built for Long Stock (1-12m+)
Cantilever arms handle dimensional lumber, plywood sheets, structural timber and pipe up to 12m+ — cargo that simply cannot fit on standard pallet racking.
Open-Front Aisle Loading
No aisle-face uprights — forklift loads / picks the entire bundle in one motion. 50-70% faster handling cycle than weaving through pallet racking.
HDG Outdoor 15-Year Warranty
Hot-dip galvanized 80-120 μm per ISO 1461 + sealed cap plugs + drainage. Survives rain, snow, freeze-thaw, coastal salt spray for 15+ years.
Adjustable Arm Pitch (200-500mm)
Bolt-on arms reconfigurable at 200-500mm pitch as your lumber dimensions change. No welding, no concrete work — single-handed adjustment.
Upturned Arms Prevent Roll-Off
3-5° upward arm tilt + optional removable end stops prevent round cargo (pipe, dowel, log) and bundled lumber from rolling off when stack-loaded.
Open-Base Column Design
Forklift forks drive over the base channel — critical for loading 6m+ lumber that wouldn't clear an exposed base plate. Standard on all AME lumber rack columns.
Heavy-Duty Anchored Base
10-16mm steel base plates with M16-M20 chemical anchors. Engineered to resist lateral loads from off-centre bundle loading and seismic events.
EN 15512 + RMI MH16.3 Certified
FEA-verified to EN 15512 + RMI MH16.3 cantilever-specific standard + AS 4084 + Eurocode 8 seismic. Stamped engineering report included free.
6 Configurations of Cantilever Lumber Rack
Cantilever lumber racking is one base architecture with six widely-deployed variants. Pick the version that matches your yard layout (against-wall vs open-yard), environment (indoor / outdoor) and load profile (lumber / pipe / heavy stock).
Single-Sided Lumber Cantilever Rack
Single column with arms on one side — installs against a wall or aisle perimeter. 500-2,000 kg per arm, 3-6m height. The default for narrow lumber yards.

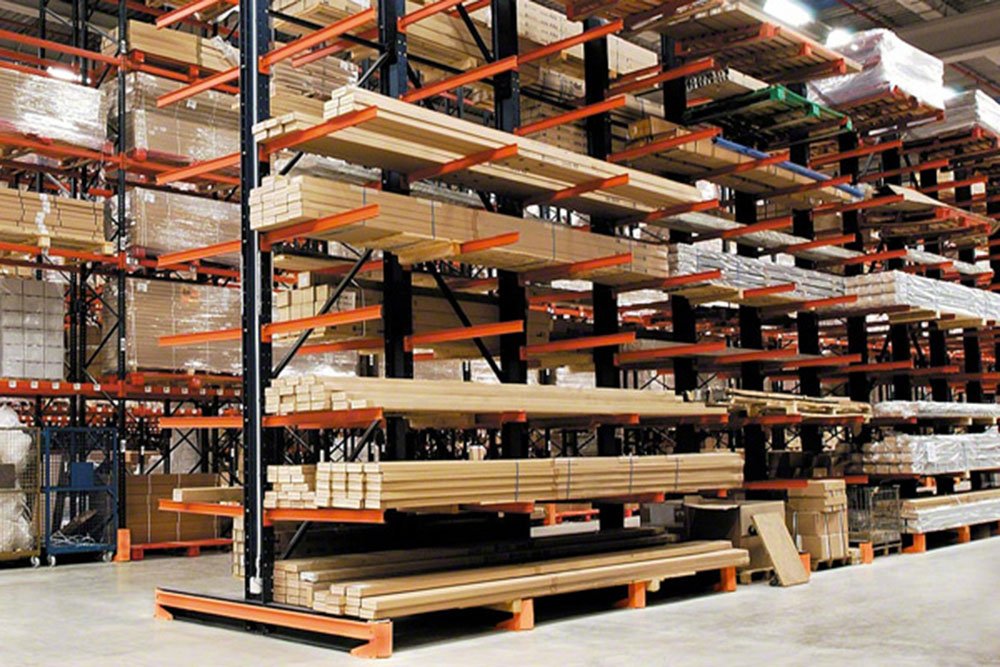

Double-Sided Lumber Cantilever Rack
Single column with arms on both sides — installs in open aisle, doubles storage per square meter of floor. 500-2,500 kg per arm, 3-8m height.
Mobile-Base Cantilever Lumber Rack
Cantilever arms mounted on AME mobile base system — single working aisle for lumber storage. +80% density vs static cantilever for urban builders.
Full Cantilever Lumber Rack Specification Matrix
Four production-default configurations covering 95% of lumber yard and building-material storage demand. All values verified by stamped FEA report (EN 15512 + RMI MH16.3) — request the full PDF datasheet with your quote.
| Specification | Light-Duty Indoor | Standard Outdoor HDG | Heavy-Duty Pipe | Drive-Thru Sawmill |
|---|---|---|---|---|
| Arm capacity (per arm) | 500 kg | 1,500 kg | 3,000 kg | 2,000 kg |
| Arm length | 1.0 m | 1.5 m | 2.0 m | 1.8 m |
| Arm upturn angle | 3° | 5° | 5° + end stops | 5° |
| Arm pitch (vertical) | 250 mm | 300 mm | 400 mm | 300 mm |
| Column profile | 120×60 mm I-beam | 150×75 mm I-beam | 200×100 mm I-beam | 200×100 mm I-beam |
| Column wall thickness | 2.0 mm | 2.5 mm | 3.0 mm | 2.5 mm |
| Column steel grade | Q235B | Q345B (HDG) | S355JR | Q345B |
| Column height | 3–5 m | 3–6 m | 3–8 m | 3–6 m |
| Single / double-sided | Single | Single or double | Double-sided | Double-sided + open base |
| Base plate thickness | 8 mm | 12 mm | 16 mm | 14 mm |
| Anchor bolt | M12 chemical | M16 chemical (HDG) | M20 chemical | M20 chemical |
| Surface finish | Powder coat 60 μm | HDG 80–120 μm | Powder coat 80 μm | HDG 80 μm |
| Operating temperature | +5 to +40°C | -30 to +60°C | -10 to +50°C | -25 to +50°C |
| Standard compliance | EN 15512 · RMI MH16.3 | EN 15512 · ISO 1461 | EN 15512 · RMI MH16.3 | EN 15512 · ISO 1461 |
10 Engineered Parts of a Cantilever Lumber Rack
Every cantilever lumber rack we ship is built from the same 10-part architecture — engineered for outdoor abuse, off-centre loading, repeated forklift impact and 20+ year service life in lumber yards, builder's merchants and pipe storage facilities.
I-Beam / H-Section Columns
Hot-rolled or built-up I-beam columns (120-200mm) — single or double-sided. Slot-and-bolt arm mounting at 200-500mm pitch.
Cantilever Arms (Upturned)
Tapered I-section or rectangular arms with 3-5° upturned tip. Bolt-on to column for adjustability. Capacities 500-3,000 kg per arm.
Removable Arm End Stops
Bolt-on or pin-locking end stops on the arm tip — prevent round cargo (pipe, dowel, log) from rolling off when stack-loaded.
Heavy-Duty Base Plate
8-16mm steel base plate with 4x M12-M20 chemical anchor bolts. Engineered for off-centre eccentric loading, the #1 cantilever failure mode.
Open-Base Channel
Forklift forks drive over the base channel — critical for 6m+ lumber that wouldn't clear an exposed base. Standard on all AME lumber rack columns.
Floor-Level Guide Rail
Optional steel guide rail at floor level along base — keeps stacks centered, prevents forklift impact to column base. Painted yellow for visibility.
Cross-Bracing & Top Tie
Diagonal cross-bracing between adjacent columns + top tie beam — converts independent columns into a stable rack system. Critical for >5m heights.
Column Impact Protector
500-1000mm HDG yellow column guards on every aisle-face column. Engineered to absorb 400 J impact per EN 15512 Annex B — replaceable bolt-on design.
Load Notice + Arm Spec Sticker
Per-arm load capacity sticker (mandatory per EN 15635). Per-rack-run load notice plate. Annual rack-inspection sticker tracking damage and repair.
Outdoor-Rated Surface Finish
Standard: powder coat 80 μm. Lumber yard default: HDG 80-120 μm per ISO 1461 + UV-resistant arm caps. 15-year corrosion warranty on HDG.
8 Industries Running on Cantilever Lumber Racks
Eight industries where cantilever lumber racks are the right spec — wherever cargo is longer than 2.4m, irregular in cross-section, mixed in length, or simply too long for pallet racking to handle.
Lumber Yards & Sawmills
Dimensional lumber bundles (2×4, 2×6, 2×8, 2×10, 2×12), structural timber, glulam beams, treated decking. The core lumber-yard storage workhorse.
Plywood & Sheet Material
4×8 / 5×10 plywood sheets, OSB, MDF, drywall, plasterboard, cement board. Heavy-duty horizontal arms with sheet-stop end caps.
Builder's Merchants & DIY
Mixed-load distribution: lumber + drywall + roofing + insulation + decking. Open-front arms accommodate mixed bundle sizes at one position.
Pipe & Tube Distribution
PVC pipe, copper tube, steel tube, structural square / rectangular tube. Upturned arms + end stops critical for round-cargo containment.
Steel Service Centres
Structural beams, angles, channels, flat bar, rebar bundles. Extra heavy-duty 3,000 kg/arm + S355JR columns for steel weights.
Prefab & Modular Construction
Prefab wall panels, modular floor joists, engineered I-joists, LVL beams. Open-base design lets forklift load 6m+ panels safely.
Solar Panel & Glass
Solar PV modules in shipping crates, large glass sheets in A-frame crates. Single-sided wall layout with extra-wide arms for crate dimensions.
Garage Doors & Long Profiles
Garage door bundles (3m+), aluminium extrusion stock, vinyl siding bundles. Adjustable arm pitch accommodates seasonal product mix.
How to Spec a Cantilever Lumber Rack in 3 Decisions
Three decisions determine whether your cantilever lumber rack delivers 20-year service life or tips over within 18 months. Get them right before requesting your quote — and always specify worst-case off-centre loading.
Arm Capacity: Per-Arm or Per-Level?
Cantilever arm capacity is rated per individual arm — not per level. Sum the loaded arms to verify column doesn't exceed total capacity.
- 500 kg/arm — Indoor dimensional lumber bundles, plywood
- 1,500 kg/arm — Outdoor lumber yards, builder's merchants
- 2,500 kg/arm — Heavy lumber, glulam, pipe distribution
- 3,000+ kg/arm — Steel service centres, structural beams
- Off-centre loading — Always engineered to worst-case eccentric load
Single-Sided or Double-Sided?
Layout drives column count and capex. Double-sided uses ~40% less floor space per pallet position.
- Single-sided — Against wall / perimeter, narrow yards
- Double-sided — Open yard, default for new builds
- Mobile cantilever — Premium density for urban lumber yards
Finish: Indoor Powder Coat or Outdoor HDG?
Lumber yards live outdoors — get HDG by default unless you can guarantee covered storage.
- Indoor +5-40°C — Powder coat 60-80 μm; 10-yr warranty
- Outdoor uncovered — HDG 80-120 μm; 15-yr warranty
- Coastal / marine yards — HDG 120 μm + sealed cap plugs
- Freeze-thaw climate — HDG + Q345B low-temp impact steel
| If your operation stores... | Pick this configuration | Arm spec | Avoid |
|---|---|---|---|
| 2×4 / 2×6 indoor lumber bundles | Light-Duty Indoor Single-Sided | 500 kg × 1.0m | HDG (over-spec indoor) |
| Outdoor builder's lumber yard 2×8-2×12 | Standard Outdoor HDG Double-Sided | 1,500 kg × 1.5m | Powder coat (corrodes) |
| Plywood & sheet material 4×8 / 5×10 | Double-Sided + Extra-Wide Arms | 1,500 kg × 2.0m | End stops (not needed) |
| PVC / copper / steel pipe storage | Heavy-Duty Pipe + End Stops | 3,000 kg × 2.0m | Flat arms (pipe rolls) |
| Sawmill high-velocity throughput | Drive-Thru with Open Base | 2,000 kg × 1.8m | Single-sided (slow) |
| Steel service centre structural | Heavy-Duty S355JR Column | 3,000 kg × 1.8m | Q235B (under-spec) |
| Urban lumber yard / land constraint | Mobile Cantilever Base | 1,500 kg × 1.5m | Static (wastes cube) |
| Mixed lumber + drywall + roofing | Adjustable-Pitch Double-Sided | 1,500 kg × 1.5m + mixed pitch | Fixed-pitch (inflexible) |
Cantilever Lumber Rack vs. Pallet Racking · A-Frame · Lumber Stack · Bunk Storage
Where cantilever lumber racks win, where alternatives win. Use this matrix to defend the spec internally — every row reflects what a real lumber yard operations manager asks.
| Criteria | Cantilever Lumber Rack | Pallet Racking | A-Frame Lumber Rack | Stacked Lumber Bunks | Drive-In Pallet Rack |
|---|---|---|---|---|---|
| Max cargo length | 1-12 m+ (any length) | ≤2.4 m (pallet limit) | ≤6 m | Any (free-stacked) | ≤2.4 m |
| Open-front aisle loading | ★★★★★ | ★★★★★ (front beam) | ★★★★★ | ★★★★★ | ★★★★★ |
| Load per arm / position (kg) | 500–3,000 | 800–1,500 | 500–1,500 | Free-stacked | 1,000–1,500 |
| Outdoor capable (HDG) | ★★★★★ | ★★★★★ | ★★★★★ | ★★★★★ | ★★★★★ |
| Bundle damage risk | Low (smooth arms) | Medium (beam edges) | Low | High (impact stacking) | Medium |
| Storage density (m² per bundle) | Medium | Low (length wasted) | Medium | High (no rack) | High (single SKU) |
| Mixed-length cargo | ★★★★★ | ★★★★★ | ★★★★★ | ★★★★★ (sorting) | ★★★★★ |
| Mixed-cross-section cargo | ★★★★★ | ★★★★★ | ★★★★★ (lumber only) | ★★★★★ | ★★★★★ |
| Forklift cycle time | Fast (one-motion) | Medium (beam navigation) | Fast | Slow (unstacking) | Slow (drive into rack) |
| Cost per arm/pallet (USD FOB) | $45–180/arm | $50-120/pallet | $60-150/level | $0 (no rack) | $80-120/pallet |
| Service life (yrs outdoor) | 15-20 yrs (HDG) | 5-8 yrs (HDG) | 10-15 yrs | N/A | 5-8 yrs (HDG) |
| Best for | Lumber yards, building supply | Boxed goods, ≤2.4m | Sawmills (lumber only) | Bulk lumber single-SKU | Bulk single-SKU short cargo |
⭐ AME Rack's Lumber-Yard Verdict
Pick cantilever lumber racks when any of your cargo exceeds 2.4m (which means nearly all lumber yards, sawmills, plywood distributors, pipe yards, building merchants, steel service centres and prefab construction operations). It is the only racking architecture purpose-built for long stock. Pallet racking fails on lumber because 2×6×12-foot dimensional lumber simply does not fit between standard upright pairs. A-frame lumber racks beat cantilever only for sawmill-direct dimensional lumber where the A-shape cradles the bundle — but lose on mixed cross-section and mixed-SKU operations. Stacked lumber bunks (no rack) win on single-SKU bulk where every bundle is identical and CapEx avoidance matters more than ergonomics or damage rates. Drive-in pallet rack beats cantilever only for short cargo (≤2.4m) needing bulk single-SKU density.
3 International Cantilever Lumber Rack Projects by AME Rack
Real customers, real KPIs. From a British Columbia builder's yard to a Birmingham plumbing wholesaler to a Brisbane coastal steel service centre — cantilever lumber racks deliver durability, safety and density where standard pallet racking simply cannot fit the cargo.

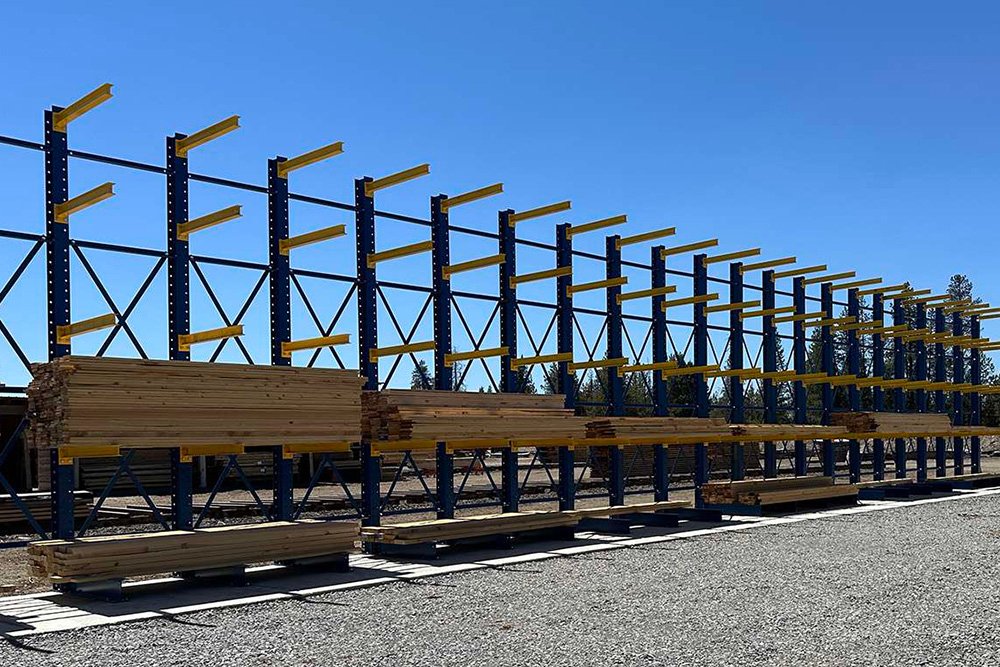

Builder's yard stored dimensional lumber, plywood and roofing bundles under tarpaulin covers. BC winter freeze-thaw caused noticeable inventory damage each year (rot + water stain). Forklift retrieval averaged 6 minutes per bundle due to free-stacked sorting and frequent re-shuffling.
32 single-sided cantilever lumber rack columns + 192 cantilever arms (1,500 kg × 1.5m each) — HDG 100 μm finish + UV-resistant arm caps + floor guide rail. Each column 6m height × 4 arm levels both sides = 8 bundle positions per column. Open-base columns for 6m+ lumber.
Inventory damage dropped to under 1% — annual write-off virtually eliminated. Bundle retrieval cut from 6 minutes to 90 seconds (-85%). Effective yard capacity rose by roughly a third on the same footprint. Customer placed a Year-2 reorder for 12 more columns to extend the layout.
Wholesaler stored PVC, copper and steel pipe in a single indoor warehouse on improvised lumber-stack bunks. Pipe roll-off incidents kept happening at the picking face, and mis-picks were frequent because mixed-SKU stacks contaminated each other. Insurance premium was climbing year-on-year.
18 single-sided heavy-duty pipe cantilever columns + 108 cantilever arms (3,000 kg × 2.0m each) with removable end stops on every arm tip. Powder coat 80 μm finish (indoor). Floor guide rails painted blue for visibility. Each pipe SKU gets a dedicated arm — zero contamination, one-look identification.
Zero pipe roll-off incidents reported in the 24 months following install — HSE compliance restored. Mis-pick rate dropped sharply once each SKU had its own arm. Insurance premium reduced on the documented workplace-safety improvement, and the wholesaler freed up enough floor space to add a new product line.
Steel service centre stored structural beams (UB / UC / PFC / angles) outdoors. Standard powder-coat racking corroded within 4 years from coastal salt-spray, forcing periodic full replacement. A previous cyclone event blew over several racks despite anchor bolts — significant inventory was damaged.
14 double-sided heavy-duty pipe cantilever columns + 84 cantilever arms (3,000 kg × 2.0m S355JR) — HDG 120 μm finish + cyclone-rated cross bracing per AS 1170.2 + M20 chemical anchors with epoxy grout + extra cross-bracing top tie at 6m. Stamped engineering by an Australian RPEQ engineer.
Survived the 2024 cyclone season with zero rack damage despite high wind gusts. The 4-year replacement cycle is eliminated thanks to the 15-year HDG corrosion warranty. Insurance premium dropped on certified cyclone-rated racking, and the operator placed a Year-2 expansion order to extend the same layout.
7-Stage Manufacturing & Quality Pipeline for Cantilever Lumber Racks
Every cantilever lumber rack leaves our Dongguan factory through a 7-stage production line built around mill-certified hot-rolled I-beam columns, robotic EN 1090 EXC2 welding, in-factory load testing and ISO 1461 HDG coating verification.
Hot-Rolled I-Beam & Sheet Inbound
Hot-rolled I-beam columns (Q345B / S355JR) from Baosteel + cold-rolled sheet for cantilever arms. Mill test certificate (yield, elongation, chemistry, Charpy V-notch) with every batch; AME QC retests per ISO 6892.
CNC Cutting & Arm Forming
CNC laser cutting (±0.2mm) prepares column slots, base plate holes, arm bolt patterns. Cantilever arms press-formed from 6-10mm steel sheet with engineered 3-5° upturn angle for roll-off prevention.
Robotic Welding (EN 1090 EXC2)
8-station Panasonic robotic MIG welder. Full-penetration welds at every arm-to-bracket joint and base-to-column joint. Ultrasonic spot-check per ISO 17636. Random samples destructive-tested monthly.
Hot-Dip Galvanizing (ISO 1461)
Outdoor lumber-rack components dipped in molten zinc at 450°C — 80–120 μm coating per ISO 1461. Components inspected for coating thickness (Elcometer), uniformity (visual) and adhesion (peel test) before release.
Powder Coat Alternative
Indoor variant: 7-stage pre-treatment (degrease → phosphate → passivate → dry) + powder coat 60-80 μm Akzo Nobel electrostatic + 200°C oven cure. Yellow column-protector finish for safety visibility.
Arm Load Testing & FEA Validation
Each batch sampled for full-scale arm load test: 1.5× rated load held 24 h with deflection < L/200. Off-centre eccentric loading test simulates worst-case forklift loading. Results compared with FEA prediction.
Packaging & Container Loading
IPPC ISPM-15 wood pallets, edge guards on HDG arms (prevent rub damage), PE film wrap. Arms packed pre-sorted by length to ease site install. Container loaded per assembly sequence. Photo + video proof-of-loading.
How to Buy Cantilever Lumber Racks — A 6-Point Checklist
Six things every lumber yard manager, builder's merchant, pipe distributor and steel SC project owner should validate before placing a cantilever rack PO. These are the questions our top lumber-yard customers always ask.
📋 1. Specification Confirmation
- Arm capacity (kg per arm) AND total per column max
- Arm length (m) and arm pitch (mm vertical)
- Arm upturn angle (3-5°) + end stop yes/no
- Column profile (I-beam vs built-up), height, wall thickness
- Single-sided / double-sided / drive-thru configuration
- Surface finish: powder coat μm or HDG μm per ISO 1461
🛡️ 2. Compliance & Test Reports
- EN 15512 structural calculation (stamped engineer)
- RMI MH16.3 cantilever-specific design verification
- AS 4084 (Australia) / FEM 9.831 (seismic)
- ISO 1461 HDG coating certificate (outdoor variant)
- Arm load test report (1.5× rated load + off-centre)
- Anchor bolt pull-test certification
📐 3. Site & Layout Survey
- Concrete floor thickness (≥150mm for outdoor, ≥200mm for >6m height)
- Concrete compressive strength (≥25 MPa for chemical anchor)
- Forklift fleet (mast height, lift capacity, fork length)
- Aisle width for forklift turning + bundle clearance
- Building height (if indoor) or shelter / cover (if outdoor)
- Wind / seismic / cyclone zone classification
💰 4. Payment & Project Terms
- T/T 30% deposit + 70% before B/L (standard)
- L/C at sight for orders ≥ USD 50,000
- Incoterms: FOB Shenzhen (default), CIF, DDP available
- Installation supervision USD 280/day (recommended for >6m)
- Performance bond 5% (held 12 months for major projects)
🚢 5. Logistics & Installation
- 40HQ holds ~140 columns + 850 arms of standard config
- Columns shipped pre-assembled (base + first arms attached)
- HDG components edge-protected to prevent rub damage
- IPPC ISPM-15 wood pallets + container loading photos
- Lead time: 25 days powder coat, 30 days HDG
🤝 6. After-Sales & Warranty
- 10-year structural warranty (15 years HDG outdoor)
- Free replacement parts in 1st year for manufacturing defects
- Annual EN 15635 rack inspection (mandatory commercial)
- Spare parts stocked 15+ years (arms, columns, anchors)
- Damage assessment service (photo evaluation)
- Dedicated account manager (WhatsApp / Email)
Everything Lumber Yards, Builders' Merchants & Pipe Distributors Ask About Cantilever Lumber Racks
Real questions from lumber-yard owners, builders' merchants, plumbing wholesalers, steel SCs and prefab construction operators during 8+ years of cantilever lumber rack export projects. Bookmark this — it answers ~95% of pre-PO objections.
Q01. What is a cantilever lumber rack and how is it different from pallet racking?
Cantilever lumber rack has vertical columns with horizontal arms extending outward like tree branches — open-front, no aisle-face uprights. Designed for long stock (lumber, pipe, sheet material) that exceeds 2.4m and won't fit between standard pallet upright pairs. Pallet racking uses front-and-back uprights with beams between — wastes the entire long-cargo dimension and physically blocks 6m+ lumber from fitting in the bay.
Q02. What is the typical lead time?
25 days for standard powder-coat indoor configurations; 30 days for HDG outdoor variants; 35 days for heavy-duty S355JR pipe rack with end stops; 35 days for cyclone / seismic-rated configurations. Express 18-day production possible for repeat customers with stock components.
Q03. What is the MOQ for a starter project?
No fixed MOQ — we have shipped projects as small as 8 cantilever columns for small lumber yards. Economy of scale kicks in around 50 columns (~1×40HQ container). Most lumber yards start with a single-row pilot then expand to multi-row after Year-1 operations validation.
Q04. What load can a cantilever arm handle?
Light-duty: 500 kg/arm (indoor lumber bundles). Standard outdoor: 1,500 kg/arm (builder's lumber yards). Heavy-duty pipe: 3,000 kg/arm (steel service centres, structural beams). Custom: up to 5,000 kg/arm for exceptional loads. Always specify the heaviest single bundle AND the worst-case off-centre loading scenario.
Q05. Can cantilever racks be used outdoors?
Yes — outdoor lumber yard is the most common use. Order the HDG variant: hot-dip galvanized 80-120 μm per ISO 1461 + sealed cap plugs to prevent column-pocket water intrusion + UV-resistant arm tip caps + drainage holes in base. 15-year corrosion warranty in coastal / freeze-thaw / snow-load climates.
Q06. How high can cantilever lumber racks go?
Standard heights: 3-8m. Maximum: 10m with engineered top-tie cross-bracing. Above 6m, top-tie beams connecting adjacent columns are mandatory to convert independent columns into a stable rack system. Floor flatness FF35 minimum, FF50 for >8m heights.
Q07. What is the difference between single-sided and double-sided cantilever?
Single-sided has arms on one side only — installs against a wall or yard perimeter. Double-sided has arms on both sides of the same column — installs in open aisles, doubles bundle positions per column. Double-sided is the default for new-build lumber yards; single-sided is for retrofits / against-wall applications.
Q08. Do I need end stops on the arm tips?
Yes for round cargo (pipe, copper tube, dowel, log) — bolt-on removable end stops prevent roll-off when stack-loaded. Yes for high-load bundled lumber (3,000kg+) — extra safety margin. Not required for plywood sheets or strapped bundles — the 3-5° upturn angle alone is enough to prevent slip-off.
Q09. What standards do AME Rack cantilever lumber racks comply with?
EN 15512 (European racking structure), RMI MH16.3 (cantilever-specific — the Americas standard for cantilever design), AS 4084 (Australia), FEM 9.831 (seismic), Eurocode 8 (seismic actions), ISO 1461 (HDG coating), EN 1090 EXC2 (welding), ISO 9001 / 14001 factory. Stamped FEA report by chartered engineer issued free.
Q10. Can cantilever racks handle cyclone / hurricane wind loads?
Yes — cyclone-rated variant uses extra cross-bracing per AS 1170.2 (Australia) / ASCE 7 (USA) / Eurocode 1 (EU) wind load calculation. M20 chemical anchors with epoxy grout, top-tie cross-bracing at 6m intervals. Common in Queensland Australia, Florida USA, Caribbean and Pacific Rim lumber yards.
Q11. How does cantilever pricing compare to pallet racking?
Cost per arm FOB Shenzhen: $45-180. Cost per pallet on pallet racking: $50-120. The economics favour cantilever when cargo is >2.4m — pallet racking simply cannot accept the cargo. For lumber yards, cantilever is not a "premium upgrade" decision; it is the only viable option.
Q12. Can I install cantilever racks myself or do I need a contractor?
Below 5m: in-house team OK with installation manual + AME video support. 5-8m: recommend installation supervision. Above 8m or cyclone/seismic zone: AME engineer + local crane required — typically 5-day site install for 50-column project.
Q13. How does AME Rack price compare to European brands?
Cantilever lumber rack is a steel-and-engineering-driven product — our FOB Shenzhen pricing typically lands at 40-55% of EU brand pricing (Mecalux / Stow / SSI Schäfer), even after shipping and 5-10% import duty. We use the same Q345B / S355JR steel grades, same EN 15512 / RMI MH16.3 standards, same FEA validation.
Q14. What is the warranty?
10-year structural warranty on standard powder-coat indoor configurations. 15-year warranty on HDG outdoor variants (covered by ISO 1461 spec). 10-year + seismic certification on cyclone / seismic configurations. Covers manufacturing defects, weld failure, paint corrosion-through. Excludes user damage (forklift impact >400J, overload, chemical exposure).
Q15. What payment terms do you accept?
Standard: 30% T/T deposit + 70% before B/L. L/C at sight for orders ≥ USD 50,000. Performance bond 5% for major projects (held 12 months). After 3 successful POs, repeat lumber-yard customers can negotiate OA 30-60 days subject to credit check. Western Union accepted for samples ≤ USD 2,000.
Get a Cantilever Lumber Rack Layout + Quote in 48 Hours
Send your lumber-yard CAD + bundle profile (lumber lengths, weights, mix) + environment (indoor / outdoor / coastal / cyclone zone) — we return optimised cantilever layout, FOB pricing, FEA load report and lead time within 48 hours. Free engineering review. Free HDG coating cert. Free installation drawing pack.
📩 3 Ways to Start the Conversation
📧 Lily@amerack.com
💬 WhatsApp / Phone: +86 188 2453 7792
🏭 Dongguan, Guangdong, China · MON–SAT 09:00–18:00 (GMT+8)
