Boltless Rack — Hammer-Together Storage Built in 5–15 Minutes Per Bay

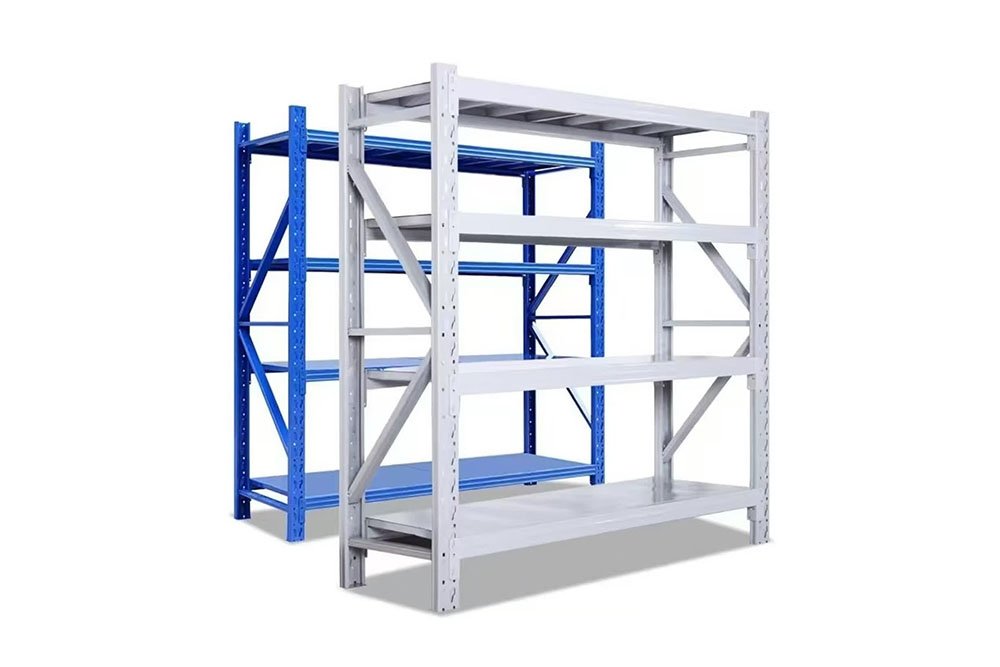

Boltless rack uses mechanical connector mechanics (rivet bayonet, spring clip, wedge tab or keyhole hook) instead of bolt-and-nut hardware to join beams to uprights. The connector geometry plus gravity load creates the structural joint. Assembly: 5-15 minutes per bay with one rubber mallet vs 30-45 minutes for bolt-up with 24-32 bolts and 2 wrenches. Reconfig: 30-60 seconds per beam tool-free vs 5-10 minutes per beam bolt-up. Container loading: 300-500 bays per 40HQ flat-pack vs 180-260 bolt-up. Boltless is the dominant technology for hand-loaded warehouse, garage, retail and workshop storage worldwide.

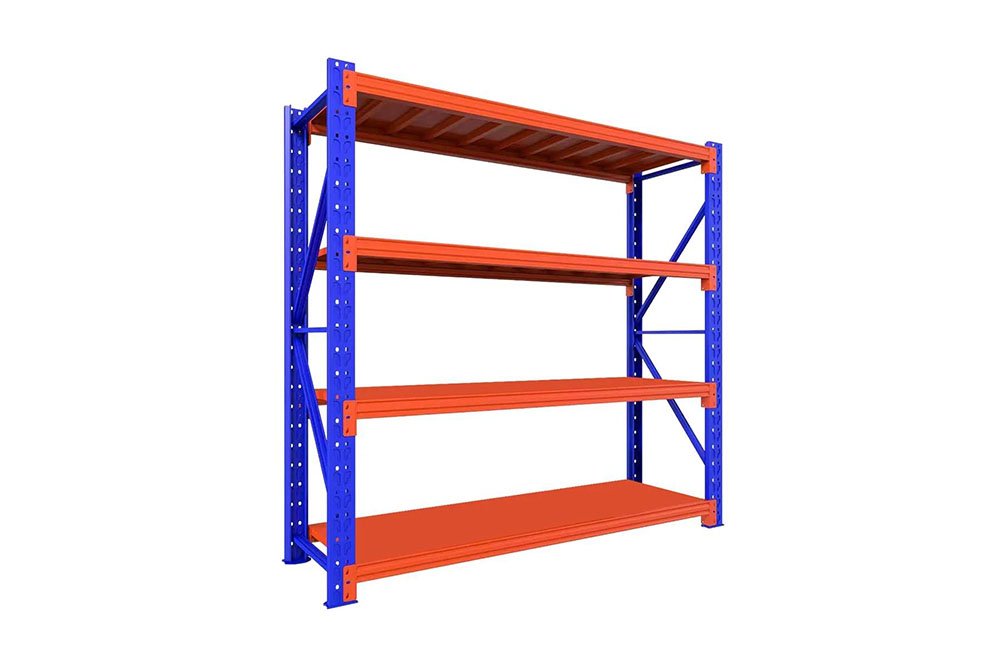

Rivet (volume seller, 60% of all boltless): 200-500 kg/level, 8-min hammer, USD 65-120/bay. Best for e-commerce picking, retail backroom, MRO, parts catalog. Clip-together: 150-400 kg, quiet snap-lock, USD 75-195. Best for hospital, retail front-of-house, office, quiet-hours assembly. Wedge-lock heavy: 500-1,500 kg, mallet-driven taper, USD 180-420. Best for tire, auto-parts core, foundry castings. Keyhole teardrop: NA standard, cross-compatible with Interlake / Mecalux / Steel King, USD 95-240. Best for North American warehouses needing fleet interoperability.

No — every AME boltless beam includes a spring-loaded safety keeper rated 50-150 N retention force, automatically engaged on snap-lock. This is verified by EN 15620 Annex C 400J pendulum drop-impact test — the beam MUST hold under forklift bump, accidental impact or upward shock. AME ships the EN 15620 Annex C certificate with every PO standard. Warning: cheap unbranded boltless systems skip the keeper (saves USD 0.30/beam) but creates fatal forklift-release risk. Always demand the keeper certificate before purchase.

18 days standard production for powder-coat boltless rivet / clip / keyhole; 22 days for wedge-lock heavy with reinforced uprights; 25 days for HDG cold-storage variant. Container loading: 40HQ holds 300-500 flat-packed bays (vs 80-120 if shipped assembled — that is the economic case for boltless). 20GP holds 220-300 bays for trial / small POs. Container loading photos and video before sailing standard.

Spec to the heaviest single SKU + 20% safety margin, never average. Common picks: 150 kg/level for archive box files and small-parts bins; 200-300 kg/level for e-commerce totes and DTC pick face; 400-500 kg/level for auto parts, MRO consumables and retail backstock; 500-1,500 kg/level wedge-lock for tire, auto-core, foundry small castings. Quoted loads are uniformly distributed (UDL) — point-loads or single-corner loads cut capacity 30-50%.

Generally no for under 2.4m. Boltless under 2.4m height is classified as mobile equipment in 90% of jurisdictions — no building permit, no fire-marshal review, no seismic calc. Exceptions: (1) units > 2.4m height require M10 chemical anchor + plan-bracing per OSHA 29 CFR 1910 + EN 15620; (2) seismic Zone D-F (California, Italy, Japan, Mexico City) require K-bracing + M12 anchor + stamped seismic calc; (3) regulated industries (pharma, hospital, food) need AS 4084 / GMP-stamped engineering pack regardless of height.

30-60 seconds per beam, tool-free, single worker. Process: (1) tap the spring keeper with rubber mallet to disengage; (2) lift the beam up and out of upright slot; (3) snap the beam back into upright at any new slot pitch (38mm or 50mm depending on mechanic). Best practice: do monthly SKU velocity reslot — move top 20% A-SKU into golden zone (900-1500mm shoulder-to-hip height) and demote C-SKU to bottom shelf. Single worker reconfigures 30-50 bays per hour.

Mostly NO — boltless connector geometries are proprietary across brands. Mecalux, Edsal, Tennsco, Western Pacific, Cisco-Eagle each use slightly different slot patterns and connector mechanics that do NOT interchange. AME ships full new bays (uprights + beams + keepers together) so compatibility is built-in within each AME PO. Exception: AME keyhole teardrop variant IS cross-compatible with Interlake, Mecalux, Steel King, Husky, Republic and Speedrack — order keyhole if you need NA fleet interoperability.

Yes — order HDG variant: hot-dip galvanised 80–120 μm per ISO 1461 + Q345B low-temp impact steel (Charpy V-notch tested at -30°C). Operating range -25°C to +25°C. Used in cold-chain DCs, refrigerated supermarket backrooms, pharma vaccine fridges, ice-cream / seafood freezer warehouses across Europe, North America, Asia. 15-year structural warranty + 5-year HDG corrosion warranty.

40-55% lower FOB Shenzhen pricing than Mecalux / Edsal / Tennsco / Husky / Cisco-Eagle quotes — even after shipping and 5-10% import duty. We use the same Q235B / Q345B / A572 cold-rolled steel grades, same EN 15620 design methodology, same EN 15620 Annex C 400J drop-impact certification, same Akzo Nobel / Sherwin-Williams powder coat. Major DTC e-commerce, garage / Costco channel, auto-parts and pharmacy procurement source from us specifically for this cost differential while maintaining equivalent engineering rigour.

10-year structural warranty on standard powder-coat configurations (uprights, beams, keepers, shelves, frames, feet). 15-year warranty on HDG cold-storage / outdoor / hospital cleanroom variants. 20-year spare-parts availability — all connector keepers, beams and uprights stocked in Dongguan for replacement orders. Covers manufacturing defects, weld failure, paint corrosion-through, slot deformation, keeper-spring fatigue. Excludes user damage (overload, chemical exposure outside rated environment, forklift impact > 400J).

Rivet: 8-12 minutes per bay for 5-level bay with steel decks — one person + one mallet + multi-language guide. Clip-together: 10-15 minutes (slightly slower due to spring engagement). Wedge-lock heavy: 12-18 minutes (heavier beams need mallet-tap to drive wedge fully). Keyhole teardrop: 10-14 minutes (hook + snap-pin sequence). Consumer garage: 5-10 minutes (lightest beams). Warehouse staff routinely build 50-bay picking lines in one 8-hour shift across all variants.

Yes — private-label is a major AME business line. We OEM boltless for Costco, Home Depot, Bunnings, Carrefour, Tesco and other retailers in 18 countries. Custom dimensions (any W 600-1800mm, D 300-1000mm, H up to 3000mm), custom colour to retailer spec (Pantone or RAL match), custom packaging (retailer-branded carton + multi-language guide), UL / CE / RoHS / GS certification per destination. MOQ for private-label: 1,000 bays. Lead time: 30-35 days including private-label artwork approval.

Standard: 30% T/T deposit + 70% before B/L. L/C at sight for orders ≥ USD 30,000. After 3 successful POs, repeat customers can negotiate net 30-60 OA subject to credit check. Performance bond 5% available for major projects (held 12 months). Pre-shipment inspection by SGS / BV / TÜV welcome. Major DTC / 3PL / retail / Costco channel often arrange escrow / inspection-based milestone payment.

Yes — for 90% of hand-loaded operations. Total cost of ownership over 10 years: bolt-up = USD 120-580/bay + 30-45 min install × USD 25/h labour + 5-10 min × USD 25/h per reconfig × 10 reconfigs/year × 10 years = USD 250-1,200 lifetime cost/bay. Boltless = USD 45-420/bay + 5-15 min install + 30-60 sec reconfig × 10 reconfigs/year × 10 years = USD 65-560 lifetime cost/bay. Boltless wins by 60-75% over 10 years. Exception: if your operation needs custom beam-to-upright geometries beyond standard catalog (extreme heavy or non-standard angles), bolt-up custom fabrication remains preferred.
